2. If a dummy is installed to the slot, remove it first.
See Removing a power supply dummy module on page 5-128 section.
3. Reverse the removal procedure.

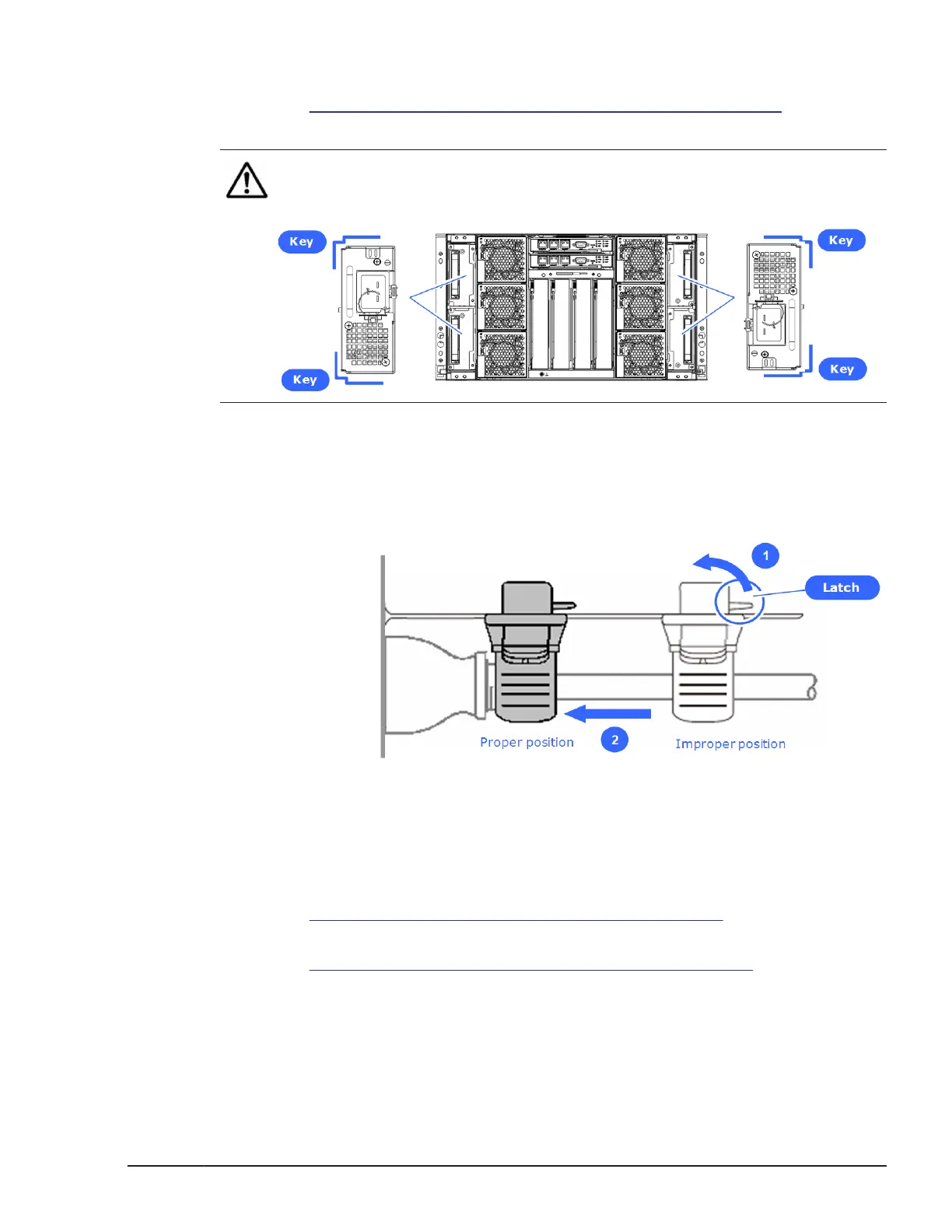

Note: The direction of the power supply module is different between
Bay#0, 2 and Bay#1, 3. Check the key position of the power supply
module and the bay in advance.
4. Connect the power cord to the power supply and add the power cord to
the cable clump so that it cannot accidentally become unplugged.
The cable clump is adjustable. If the clump is in the improper position as
shown below, adjust it to the proper position while releasing the latch of
the cable clump.
Figure 5-155 Proper position of the cable clump
5. The power supply module turns on as soon as the power cord is plugged
in.
6. Verify that the power LED is light on green.
7. Turn off the maintenance mode from web console.
See
Maintenance mode on/off procedure on page 4-10 section.
8. Verify that the replacement was successful through the MAR log.
See
Alert information identification procedure on page 4-5 section.
Replacing a fan module
This procedure describes how to replace a fan module.
Replacing parts
5-123
Hitachi Compute Blade 500 Series System Service Manual
