Replaceable parts- rear side

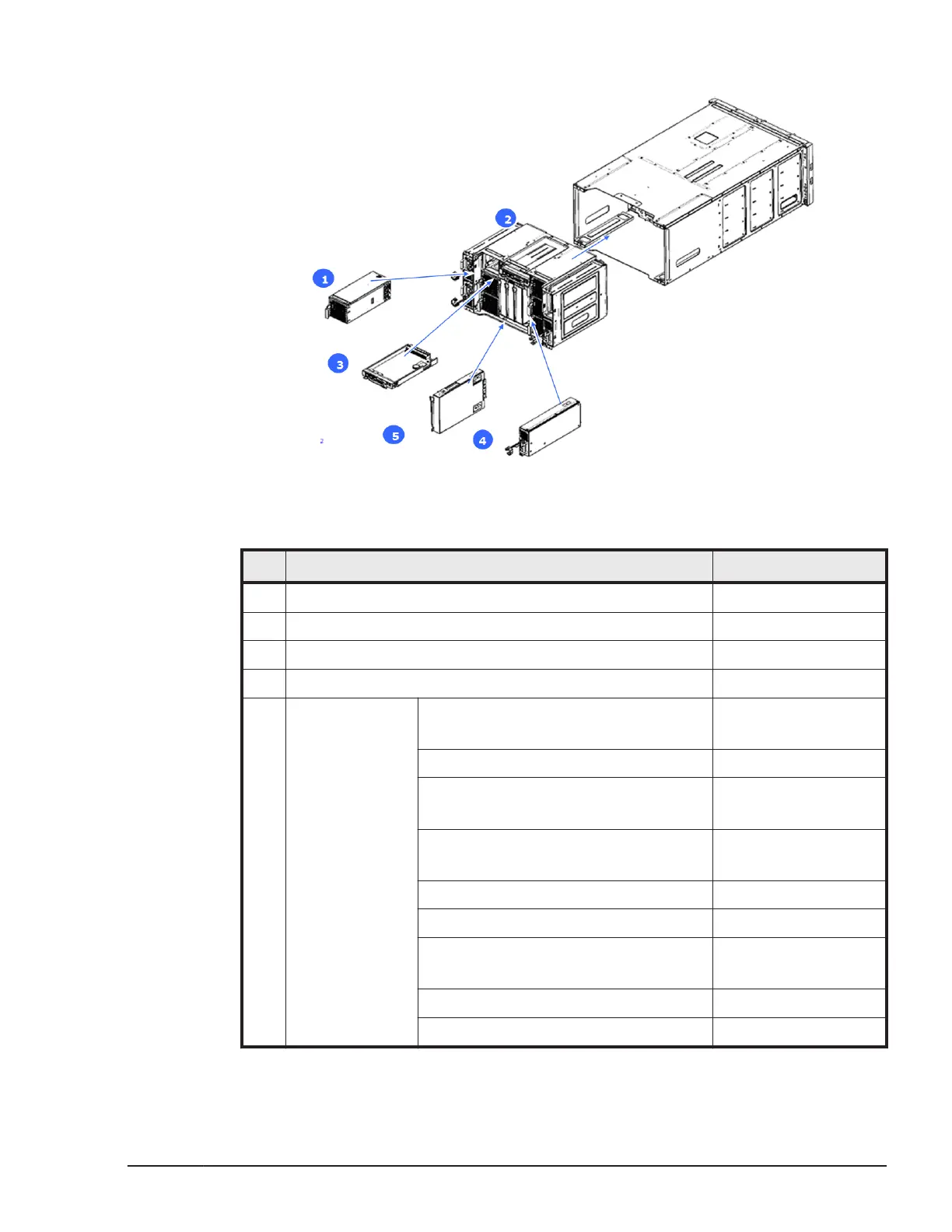

Figure 2-2 Server chassis replaceable parts- rear side

Table 2-3 Server chassis replaceable parts- rear side

No. Part Name Spare Part No.

1 Fan module GG-RE3NNN0002-R

2 Backplane -

3 Management module GG-BE3SVP1X1-R

4 Power supply module GG-BP3PWS1X1-R

5 Switch module 1Gb LAN switch module (20 ports) GV-BE2LSW1X1-R

GV-BE2LSW1XR-R

1Gb LAN switch module (40 ports) GG-BE3LSW4X1-R

1/10Gb LAN switch module GV-BE2LSW2X1-R

GV-BE2LSW2XR-R

1Gb LAN pass-through module GV-BE2LPS1X1-R

GV-BE2LPS1XR-R

8Gb fibre channel switch module GV-BE2FSW1X1-R

16Gb fibre channel switch module GV-BE2FSW3X1-R

10Gb DCB switch module GG-BE3LSW3X1-R

GV-BE2LSW3X1-R

10Gb LAN pass through module GG-BE3LPS2X1-R

10Gb LAN pass through module2 GG-BE3LPS2X2-R

Replaceable parts

2-5

Hitachi Compute Blade 500 Series System Service Manual
