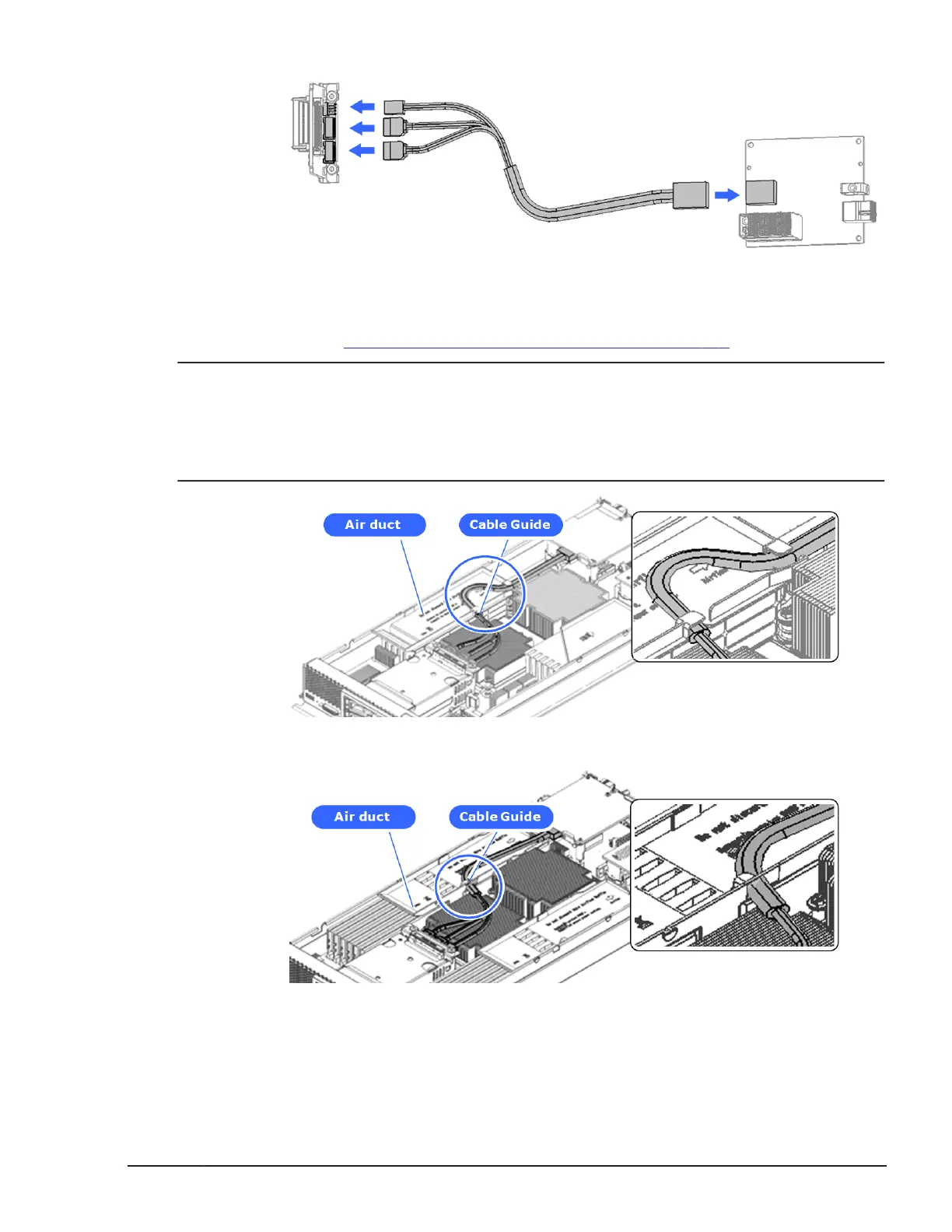

Figure 5-119 Connecting the SAS cable
4. Place the SAS cable into the guide of the air duct.
5. Perform Installing a half-wide server blade on page 5-5 procedure.
Notice:
Place the SAS cable to the cable guide correctly.
If the cable is not in place correctly, that might cause serious damage to
the cable.
Figure 5-120 Fixing the SAS cable- CB 520A A1
Figure 5-121 Fixing the SAS cable- CB 520H A1/B1/B2
Replacing parts
5-95
Hitachi Compute Blade 500 Series System Service Manual
