5-7
b) Fill it up with the silicone sufficiently as shown below.
②Heat the filled part by a warm air of a drier (500W equivalent) for 7 to 8 minutes
and cure the surface.
Caution Keep the drier 50 to 100mm away so as not to deform the tube by
keeping it too close.

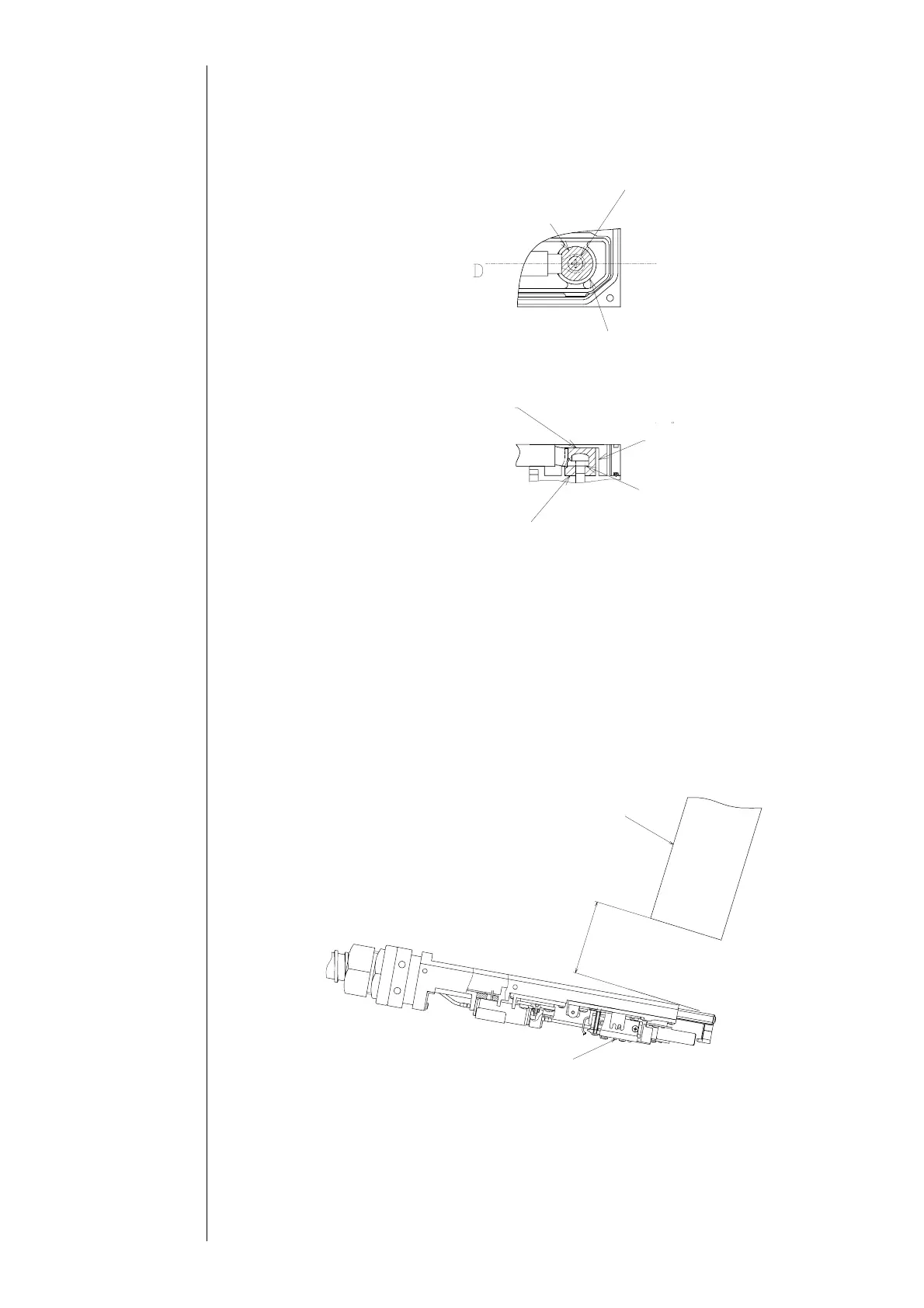

Silicone Filling Portion
(Hatching Portion)
The metallic portion of the high-
voltage line terminal portion
should be completely hidden.
Rib of the base plate
D section
Fill it up to approximately the same
height as the rib of the base plate so
that the screw head will not be out.
Rib
High-voltage round terminal
Fill up the downside of the terminal as well.
Drier
Nozzle
50 to 100 mm
To Next Page
