157 IFP-300 / IFP-300ECS Manual P/N LS10145-001SK-E:B 12/18/2017
Follow these steps to input user message using Aux Audio Input:
1. Wire a speaker cable with 1/8” mini plug to Aux AUDIO GND and IN terminals. Refer to Figure 11.5.

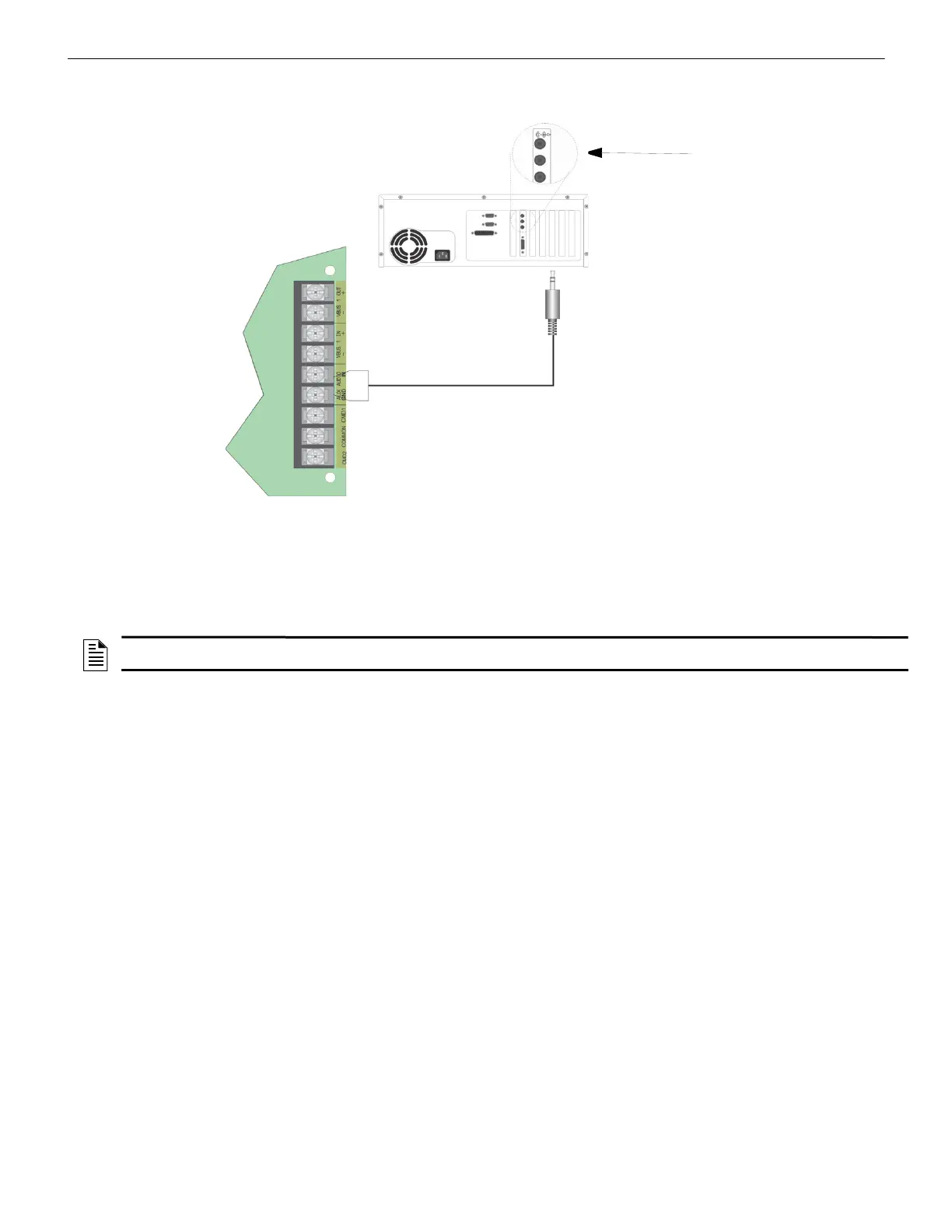

Figure 11.5 AUX Audio Connection for Recording
2. Plug the mini plug into the Line Out/Headphone jack on a PC or Laptop. See Figure 11.5.
3. Enter programming mode at main control panel.
4. Select option 8 for System Options.
5. Select option 1 VCM Maintenance.
6. Select option 2 Local Recording.
7. Select the amplifier and circuit for the audio to play through during programming. A user would generally pick the audio circuit that
is in closest proximity to them.
8. Press ECS Message Key 1 to enter the message slot selection mode. Then, press the Select Key 1-15 that corresponds to the
message slot that you wish to record to. The associated Select Key red LED will begin flashing, indicating that the message slot is
ready for recording.
9. Simultaneously press ECS Message Key 3 and start playing the audio source on the PC or laptop.
10. When the audio file from the PC is finished playing, press ECS Message Key 3 again to stop the recording. The Select Key green
LED will come on.
11. To playback the recorded message, press the Select Key 1-15 that was just recorded to.
Recording with Aux Audio Input Example:
The user wants to record into memory slot 2 via the Aux Audio Input channel.
Upon entering the Local Recording mode via the keypad menu, the VCM will light the Select Key green LEDs 1-15 for each occupied
message slot.
If a message already exists in message slot 2, it must first be erased. Press ECS Message Key 8, then press Select Key 2, (see Section
11.8.3). When the message has been erased Select Key 2’s green LED will turn off.
To record a message, press ECS Message Key 1, then press Select Key 2 (this will use message slot 2 for the recording). Select Key 2's
red LED will begin flashing.
Press ECS Message Key 3 while simultaneously pressing play on the PC to start recording the Aux Audio Input. When the PC message
is done, press ECS Message Key 3 to stop recording. Select Key 2's red LED will stay on until processing is completed. Select Key 2's
green LED comes on after the recording is completed.
NOTE: The VCM will light the green Select Key LED for message slots that are occupied. If a message is already stored in the desired slot,
then you must erase the message first.
