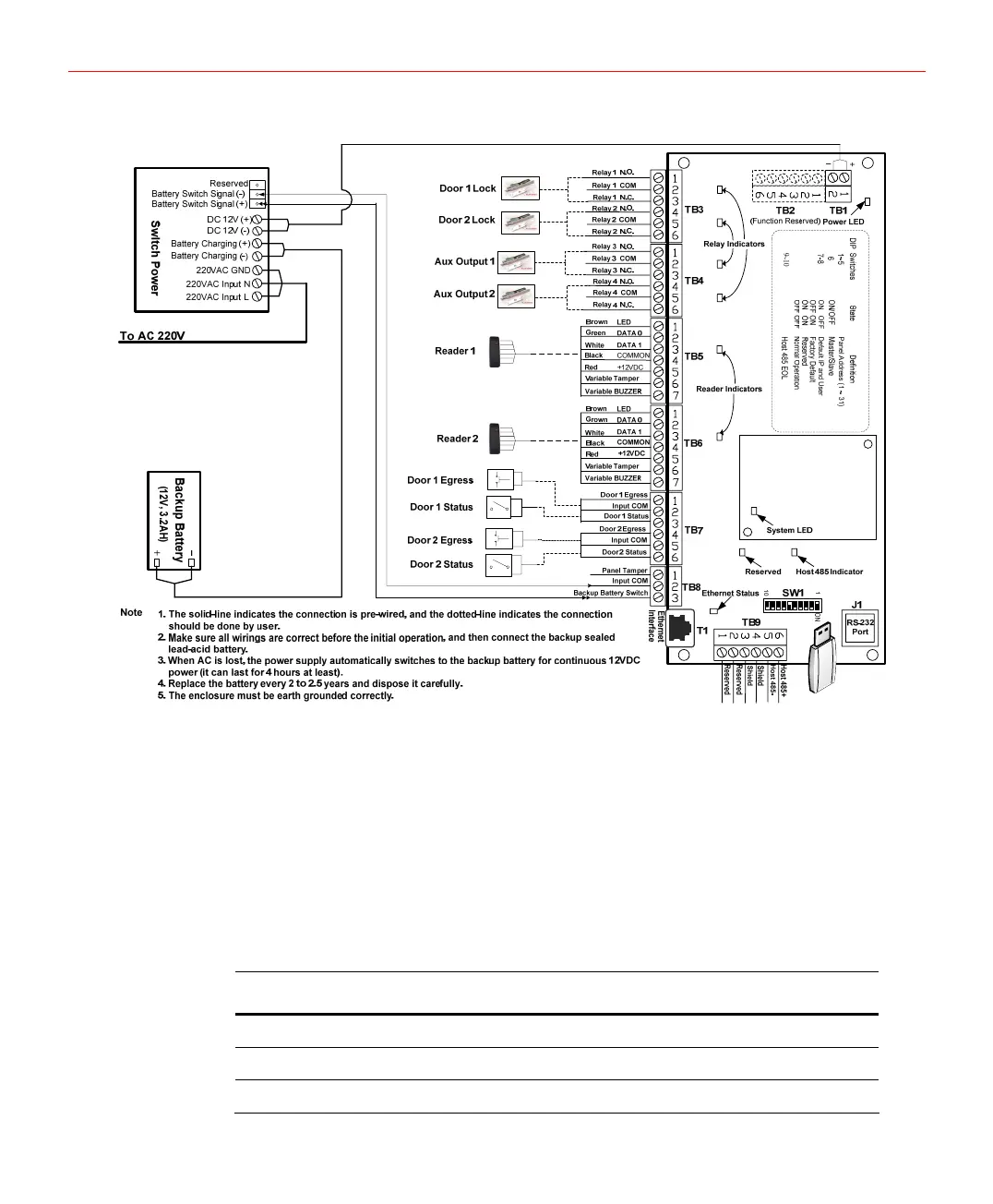

Figure 3-6 Cabinet Wiring
Reader Wiring
Each reader port supports a single 12-volt reader with Wiegand output format. The
maximum power draw is 300 mA for readers.
To fully utilize each reader port, a shielded 7-conductor cable (18-22 AWG) is required. If
the optional reader buzzer feature is not needed, you can use the standard 6-conductor
cable. The cable shield should be grounded at the panel only. Grounding at both ends
can cause ground loops which can be disruptive. The maximum recommended length of
wiring is 500 feet per reader.
Table 3-2 Reader Wiring
Terminal Wire Color Wiegand Reader
TB5-1, 6-1 Brown LED Control
TB5-2, 6-2 Green Wiegand Data 0 or Data
TB5-3, 6-3 White Wiegand Data 1 Or Clock
9
