Configuring via IP-AK2 Web Server
o Cut (supervised input only): indicates that the electrical circuit on the door has
been cut or disconnected.
• Egress
• Tamper - Indicates abnormal handling of the reader device.

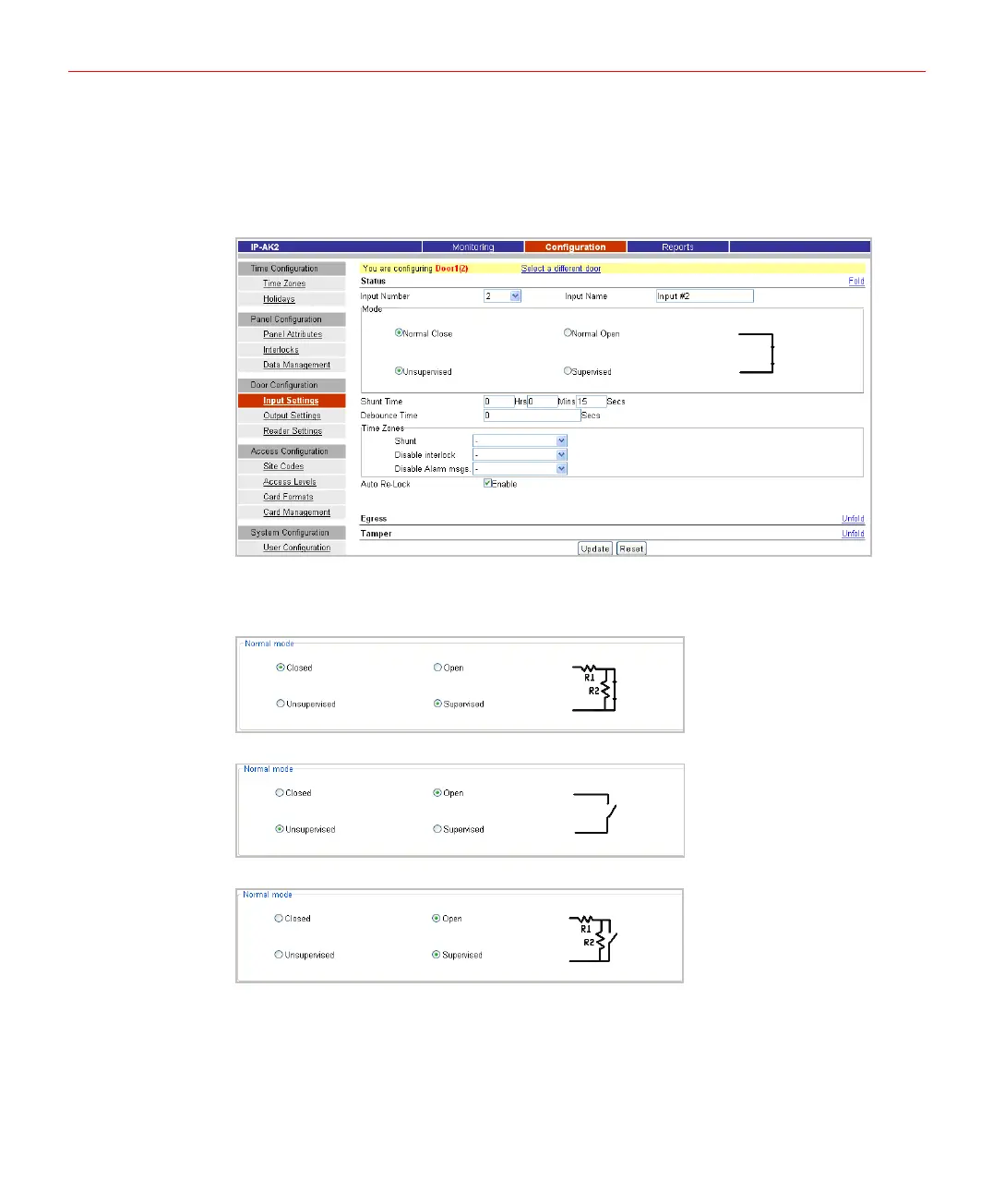

Figure 5-30 Input Settings Page
There are four possible mode configurations. The figure above shows the normally
Closed/Unsupervised mode. The following figures show the remaining modes.
Figure 5-31 Door Status 1
Figure 5-32 Door Status 2
Figure 5-33 Door Status 3
On Input Settings page, you can:
• Define the Status, Egress and Tamper inputs’ access mode.
• Specify the Status, Egress and Tamper shunt time, or the period of time when the
normal state will be ignored.
30
