Configuring via IP-AK2 Web Server
On Input View, you can:
• View the current status of each input (Normal, Alarm, Cut, Short, Shunted).
• Shunt or un-shunt any input. When an input is shunted, it is de-activated. The
default state of an input point is “un-shunted”.
• Restore the input to its shunted time zone. Shunted time zone is a specified time
period during which the input will be de-activated.
1. To shunt or un-shunt an input, click the image above the input name, and click
【OK】to shunt or un-shunt the input.
2. To restore the input to its shunt state based on its configured time zone, check the
【Restore to Time Zone】and click【OK】.

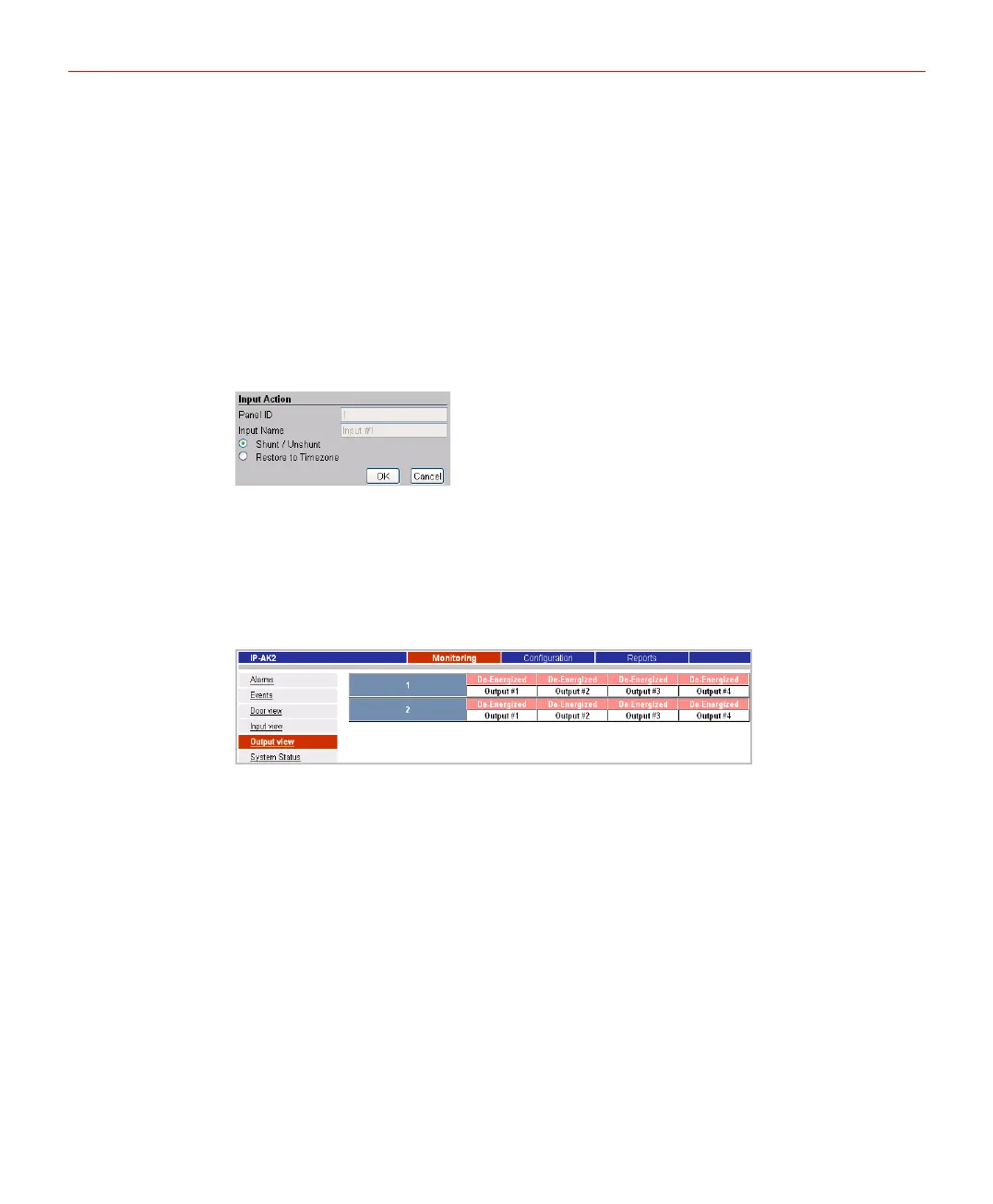

Figure 5-62 Input Action
Output View
The outputs status of all live panels will be shown on Output View. In addition, some
basic output control functions are provided on this page, such as “Change Output Status”
and “Pulse” as well as “Restore to Time zone”.
Figure 5-63 Monitoring->Outputs
On Output View, you can:
• View the current status of each output in the Discrete tab (Energized or De-
energized).
• Energize or de-energize any output indefinitely.
• Pulse any output. This energizes the output for a configured period of time.
• Restore the output to its configured time zone. A time zone is a specified time
period during which the output will be energized.
1. Click the status image and display a window.
2. Click【Change Output Status】to energize or de-energize the output indefinitely,
and click【OK】.
3. To pulse an output for the configured period of time, click【Pulse】. Then click
【OK】to start the pulse.
