Honeywell
Time Configuration
Time Zones
The IP-AK2 panel controls access by time zones, or time schedules. Inputs, outputs,
readers, and cards with access levels are all configured with time zones by which they
will be energized or de-energized, enabled or disabled. For example, you might assign
an output to be energized from 12:00 a.m. to 6:00 p.m. every day. The time period, 12:00
a.m. to 6:00 p.m., Sunday through Saturday, is called a time zone.
ClickTime Zoneson Configuration tab to view existing time zones, change the
current loop, create a new time zone, modify an existing time zone, or delete time zones.

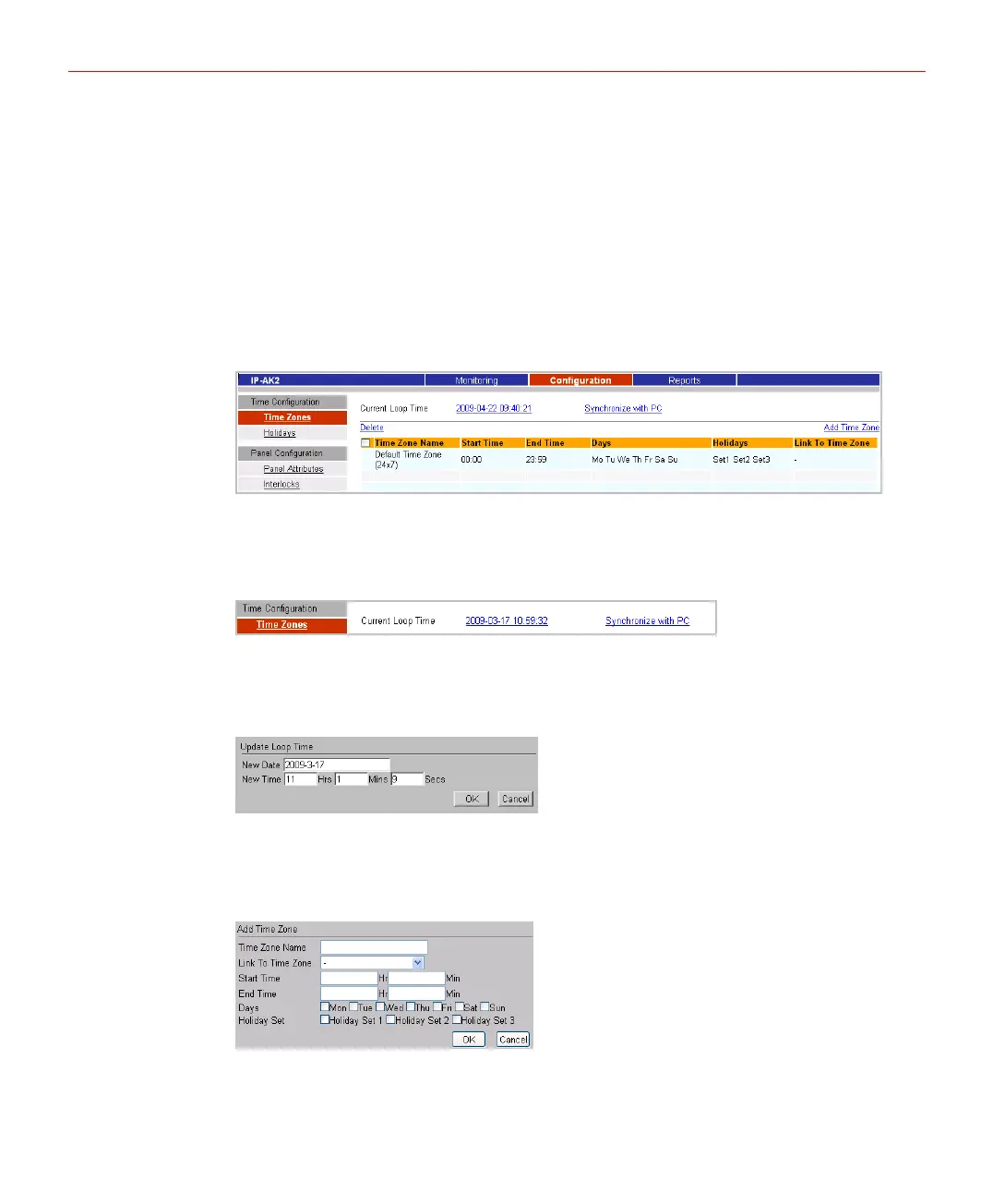

Figure 5-13 Time Zones Page
Current Loop Time
Current Loop Time is shown on the top of the Time Zones page, see below.
Figure 5-14 Current Loop Time
Synchronize with PCprovides an easy way to update loop time the same as the PC
time. Click the hyperlink in the Current Loop Time field to popup a time editing window,
on which the loop time can be updated.
Figure 5-15 Update Loop Time
Creating Time Zone
1. ClickAdd Time Zoneabove the list, the page below will pop up:
Figure 5-16 Add Time Zone
2. Configure the settings as below:
Time Zone Name: enter the name of the new time zone.
21
