Configuring via IP-AK2 Web Server
Access Configuration
Site Codes
Site Codes identify enterprise sites. Up to 8 site codes can be served as secondary card
IDs (in addition to the card number) for additional validation.
Click Site Codes on Configuration tab and the page below displays. You can view
existing site codes, create a new site code, modify an existing site code, and delete them.

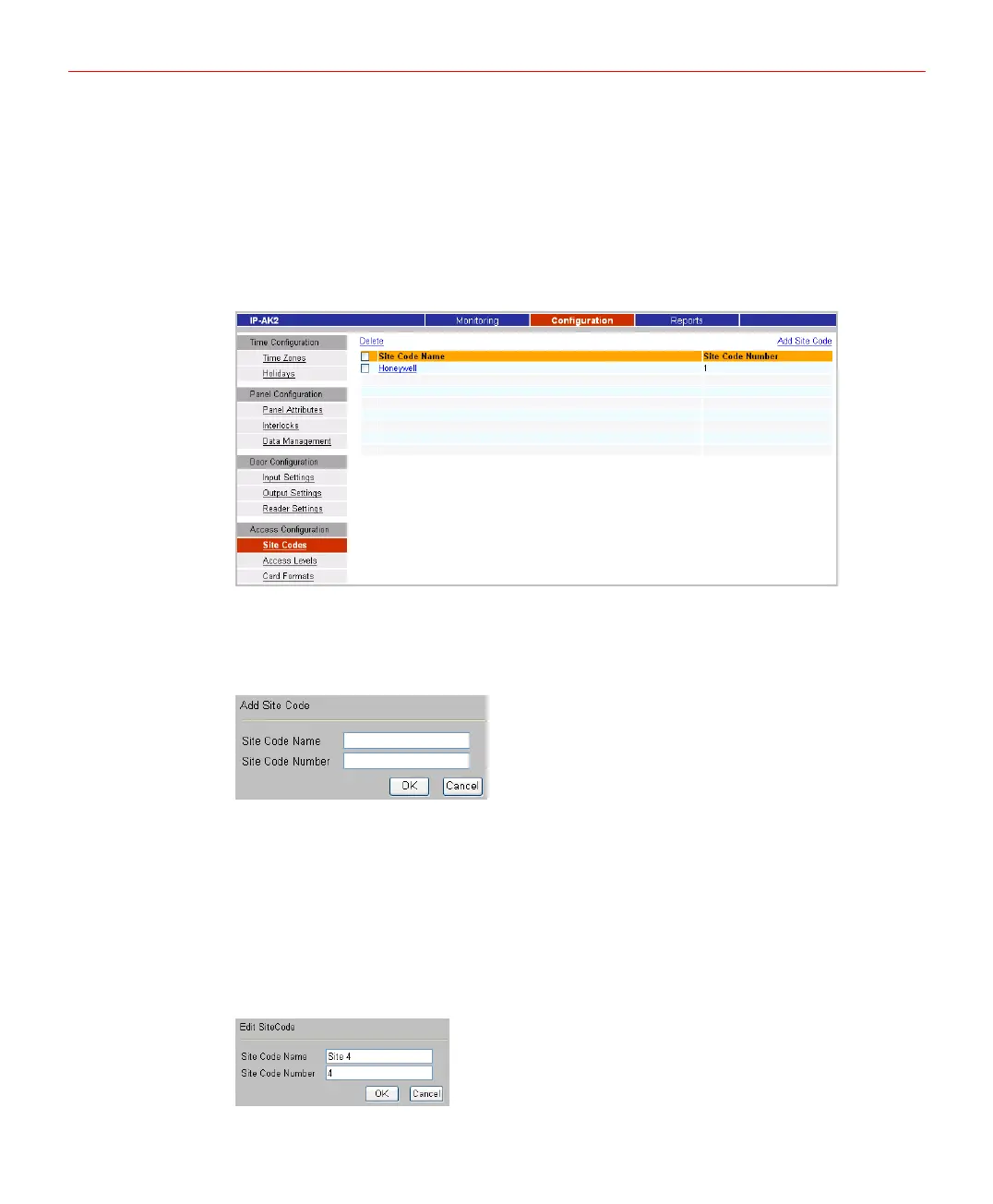

Figure 5-36 Site Codes Page
Creating Site Code
1. Click【Add Site Code】above the list, the page below will pop up:
Figure 5-37 Add Site Code
2. Configure the parameters as below:
• Site Code Name: enter a name of the site code.
• Site Code Number: enter a unique number (up to five digits) of the site code.
3. Click【OK】to create this site code.
Modifying Site Code
1. Click the name of the site code to be modified in the list to open the page below:
Figure 5-38 Modify Site Code
34
