Honeywell

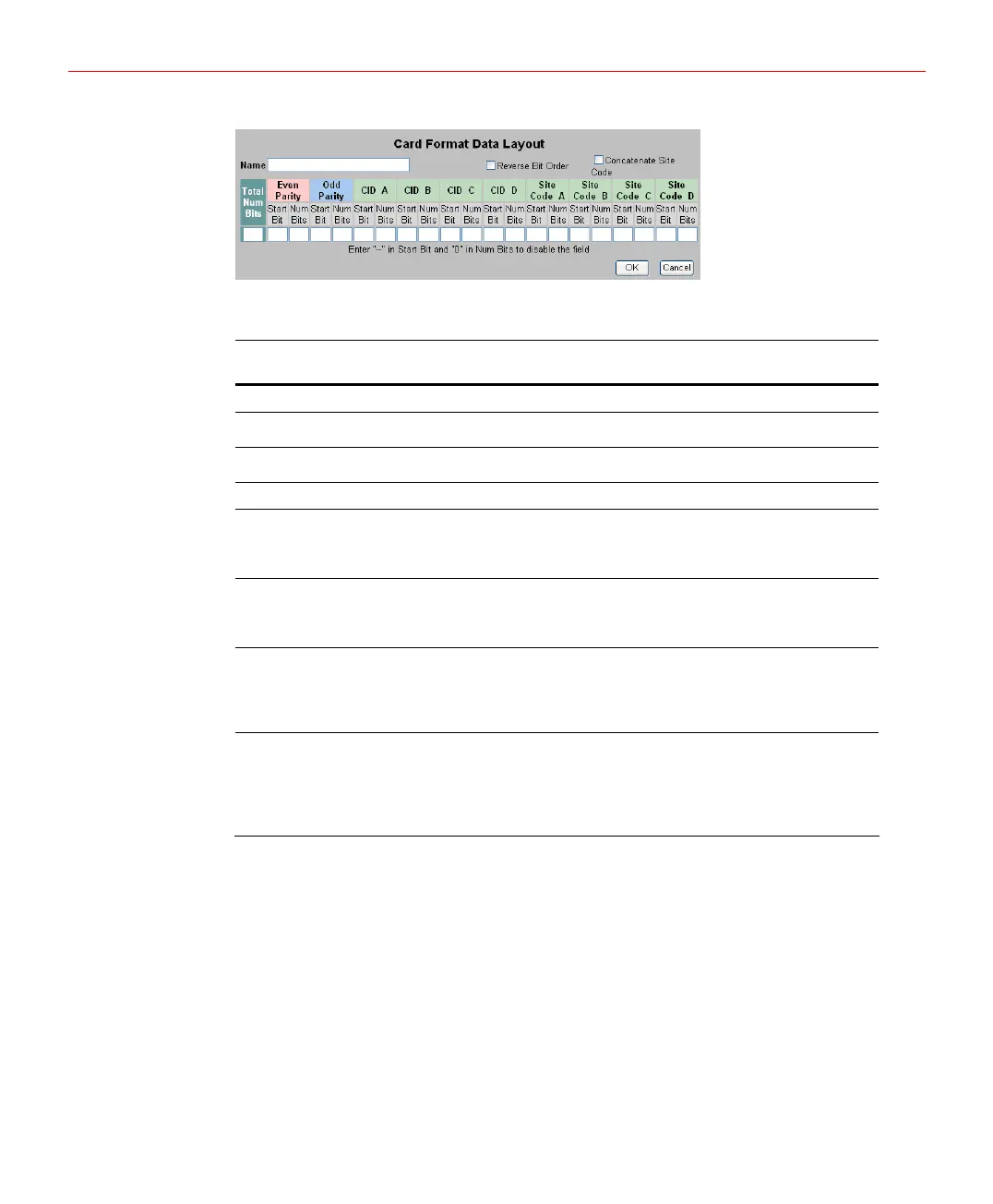

Figure 5-43 Card Format Data Layout
2. Refer to the descriptions in the following table to configure card format settings.
Table 5-8 Card Format Description
Setting Description
Name The unique name identifies the card format.
Reverse Bit Order
Returns the message from the reader in reverse bit order (the least
significant bit first and the most significant bit last).
Concatenated Site
Code
Combines the Site Code and Card ID as one unique number.
Total Num Bits Lists the total number of bits on the card.
Even Parity
Lists where on the card that even parity is being observed.
Start Bit – first bit in the card where even parity begins.
Num Bits – Number of bits to the right of the start bit, including the
start bit, to include in the even parity check.
Odd Parity
Lists where on the card that odd parity is being observed.
Start Bit – first bit in the card where odd parity begins.
Num Bits – Number of bits to the right of the start bit, including the
start bit, to include in the odd parity check.
CID A,B,C,D
Lists where on the card the Card ID A is listed.
Start Bit – first bit in the card where card ID begins.
Num Bits – Number of bits to the right of the start bit, including the
start bit, comprises of card ID.
Most formats require only CID A, and not CID B, C, or D.
Site Code A, B, C, D
Lists where the Site Code A is listed on the card. Consult the card
manufacturer for detail.
Start Bit – first bit in the card where the card’s Site Code begins.
Num Bits – Number of bits to the right of the start bit, including the
start bit, comprises the Site Code.
Most card formats require only Site Code A.
Modifying Card Formats
1. Click the name of the card format to be modified.
2. Change card format settings on the pop-up window.
3. Click【OK】to accept changes.
Deleting Card Formats
1. Check all the boxes in front of the card formats to be deleted in the list.
2. Click【Delete】above the list.
3. Click【OK】on the prompt window.
37
