106 Xenon/Granit User Guide
Scanner Name
You may assign a name to each scanner you are using for identification purposes.
The default name is in the format “ScannerName_Model_SN_XXXXXXXXXX” Per-
form the rename operation using either the bar codes on page 107, or by sending
the serial command :ScannerName:BT_NAMNewName. where ScannerName is
the current name of the scanner, and NewName is the new name for the scanner.

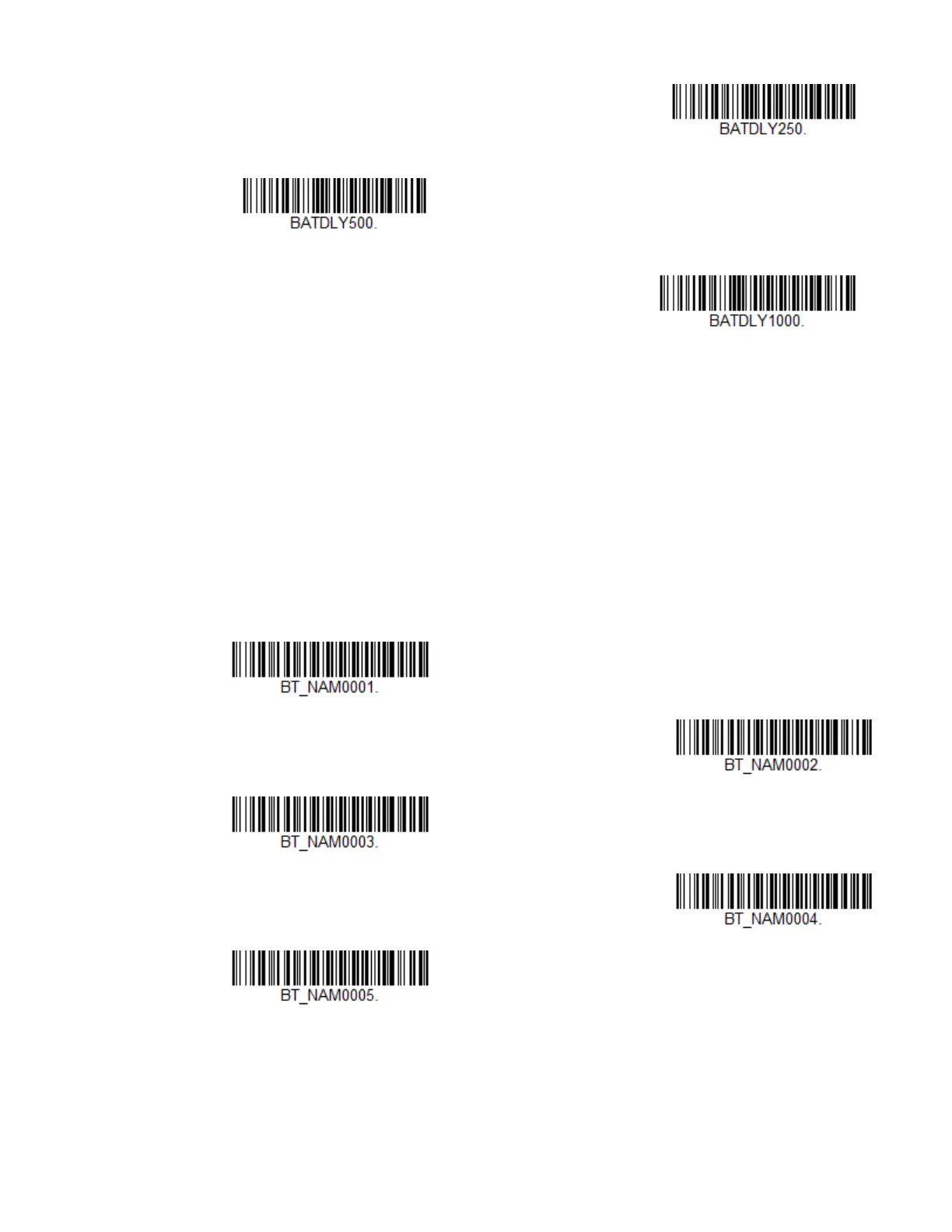

To rename scanners with sequential, numeric names, scan the bar codes below.
Scan the Reset code after each name change and wait for the scanner to relink to
the base before scanning a bar code to rename the next scanner.
Batch Mode Transmit Delay Short
(250 ms)
Batch Mode Transmit Delay Medium
(500 ms)
Batch Mode Transmit Delay Long
(1000 ms)
0001
0002
0003
0004
0005

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
