Honeywell XENON 1902 User Manual

Xenon/Granit User Guide 133
User-Specified Aimer Delay

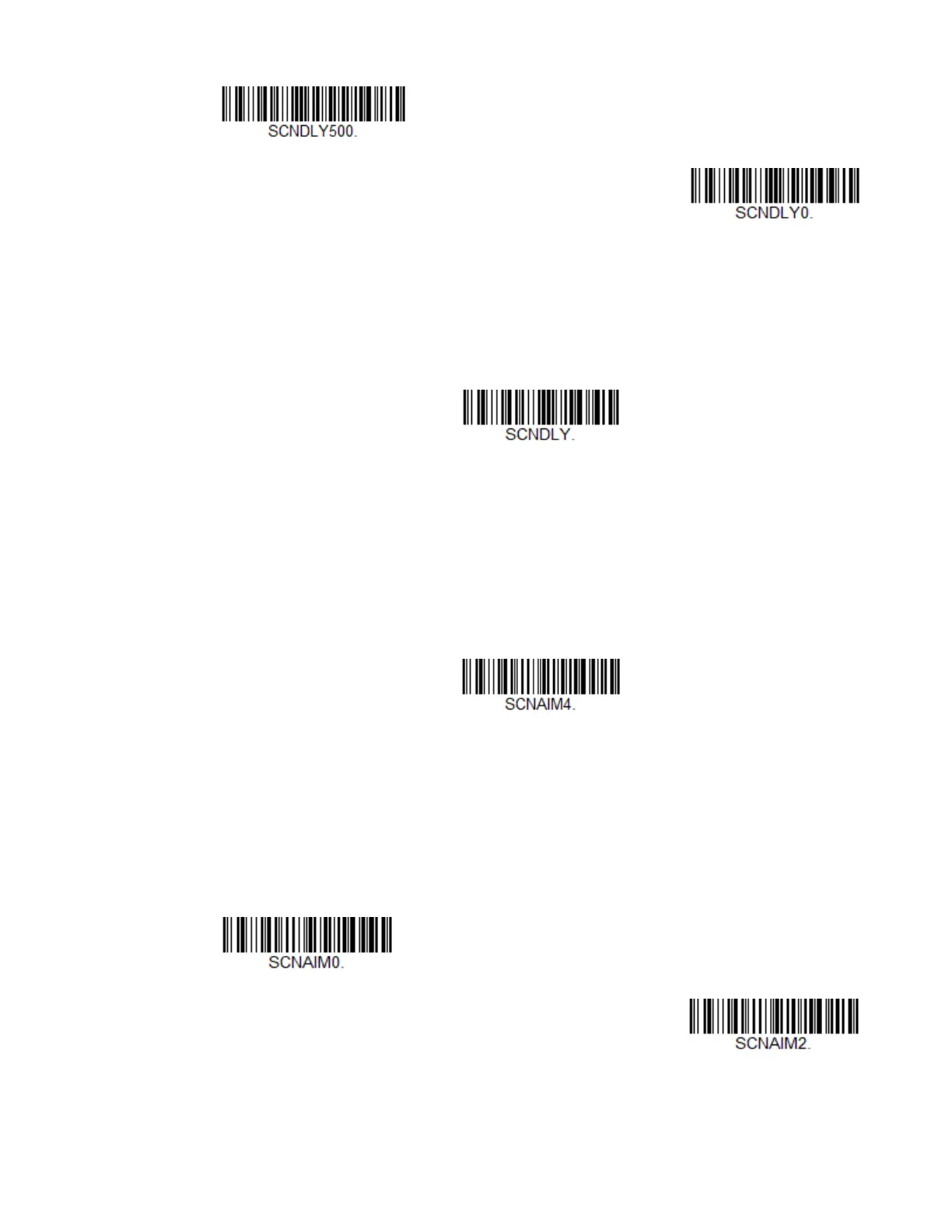

If you want to set your own length for the duration of the delay, scan the bar code
below, then set the time-out by scanning digits (0 - 4,000 ms) from the
Programming Chart, beginning on page 353, then Save.
Active Aimer
Note: Active Aimer is only supported by the Granit 1920i.
By default, the scanner and the aiming beam remain off until you press the trigger.
When Active Aimer is set to On, whenever the scanner is moved, the aiming beam
appears so you can aim, then scan a bar code with a trigger press.
Aimer Mode
This feature allows you to turn the aimer on and off. When the Interlaced bar code
is scanned, the aimer is interlaced with the illumination LEDs. Default = Interlaced
Note: Granit 1980i and 1981i do not support Aimer Mode.
500 milliseconds
* Off (no delay)
Delay Duration
Active Aimer On
Off
* Interlaced

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
