Honeywell XENON 1902 User Manual

232 Xenon/Granit User Guide

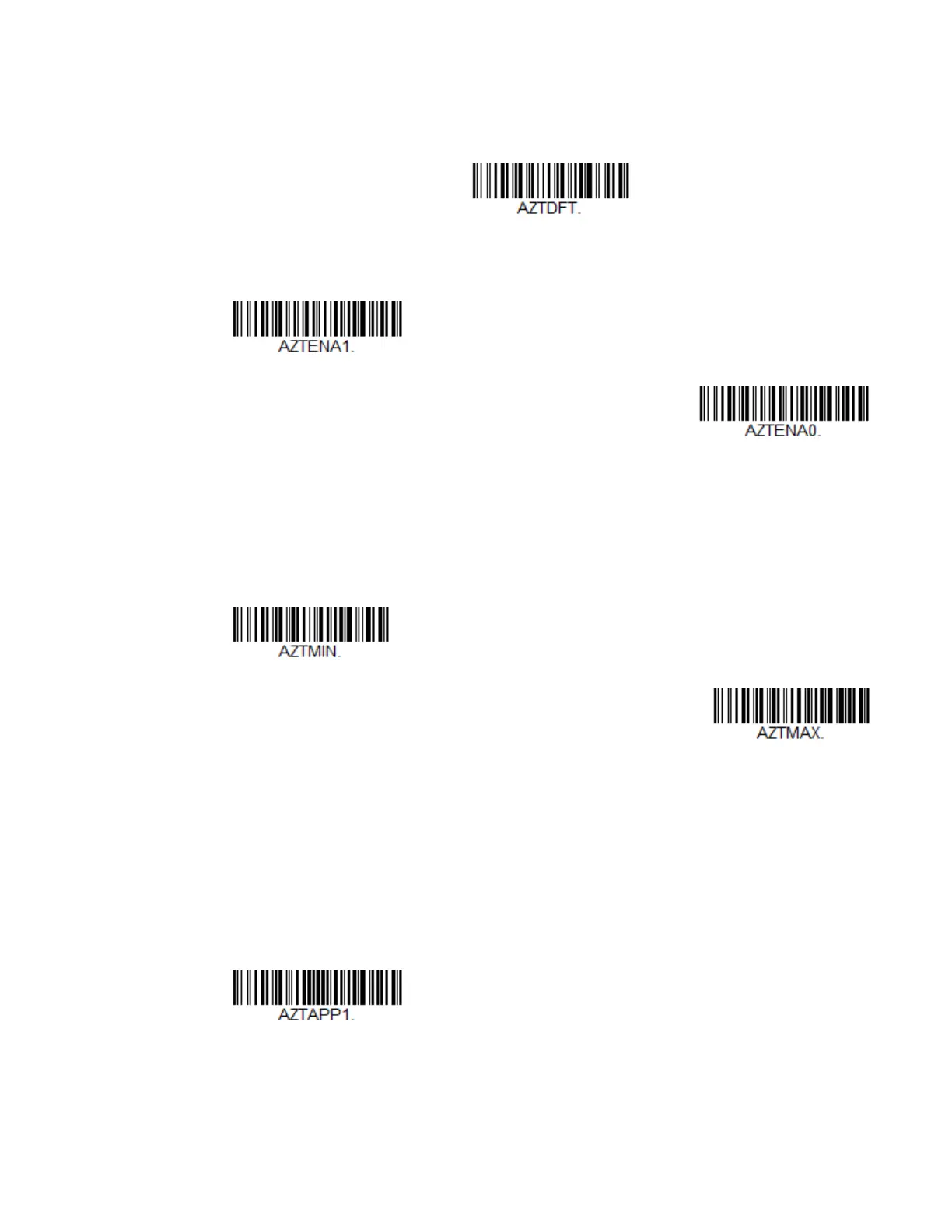

Aztec Code
< Default All Aztec Code Settings >
Aztec Code On/Off
Aztec Code Message Length
Scan the bar codes below to change the message length. Refer to Message Length
Description (page 188) for additional information. Minimum and Maximum
lengths = 1-3832. Minimum Default = 1, Maximum Default = 3832.
Aztec Append
This function allows the scanner to append the data from several Aztec bar codes
together before transmitting them to the host computer. When the scanner
encounters an Aztec bar code with the append trigger character(s), it buffers the
number of Aztec bar codes determined by information encoded in those bar codes.
Once the proper number of codes is reached, the data is output in the order speci-
fied in the bar codes. Default = On.
* On
Off
Minimum Message Length
Maximum Message Length
* On

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
