Honeywell XENON 1902 User Manual

70 Xenon/Granit User Guide
linked to another Access Point, it will be updated with the new base/Access Point
settings for whatever work group to which that the scanner was previously
assigned. For example, if the scanner was in work group 1 linked to the first base, it
will be placed in work group 1 in the second base with the associated settings.
Application Work Group Selection

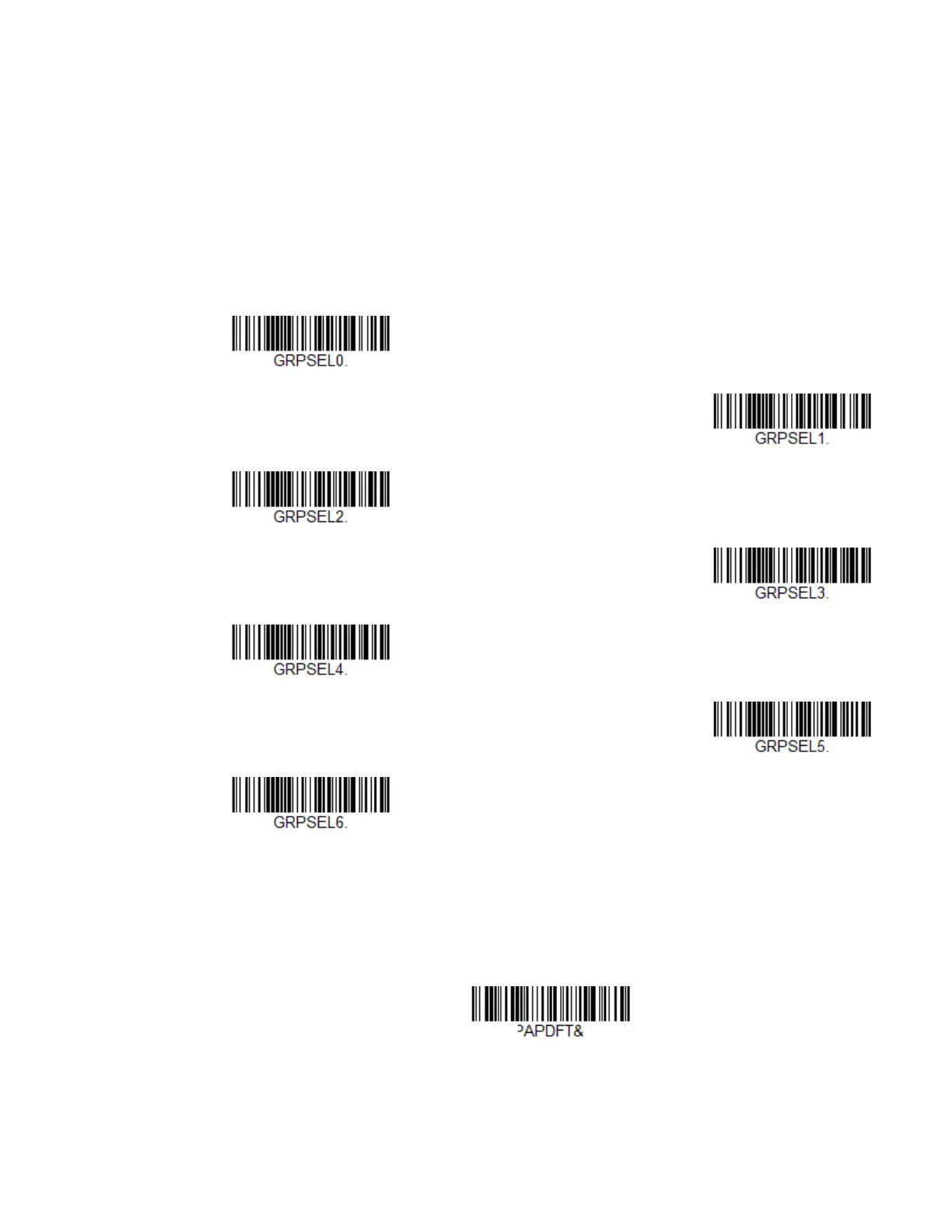

This programming selection allows you to assign a scanner to a work group by
scanning the bar code below. You may then program the settings (e.g., beeper vol-
ume, prefix/suffix, data formatter) that your application requires. Default = Group 0.
Reset the Factory Defaults: All Application Work Groups
The following bar code defaults all of the work groups to the factory default set-
tings.
* Group 0
Group 1
Group 2
Group 3
Group 4
Group 5
Group 6
Factory Default Settings:
All Work Groups

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
