Honeywell XENON 1902 User Manual

204 Xenon/Granit User Guide
Code 128 bar codes until it reads a Code 128 bar code that does not have the
append trigger. The data is then transmitted in the order in which the bar codes
were read (FIFO). Default = Off.
Code 128 Code Page
Code pages define the mapping of character codes to characters. If the data
received does not display with the proper characters, it may be because the bar
code being scanned was created using a code page that is different from the one
the host program is expecting. If this is the case, scan the bar code below, select
the code page with which the bar codes were created (see ISO 2022/ISO 646
Character Replacements on page 346), and scan the value and the Save bar code
from the Programming Chart, beginning on page 353. The data characters should
then appear properly.

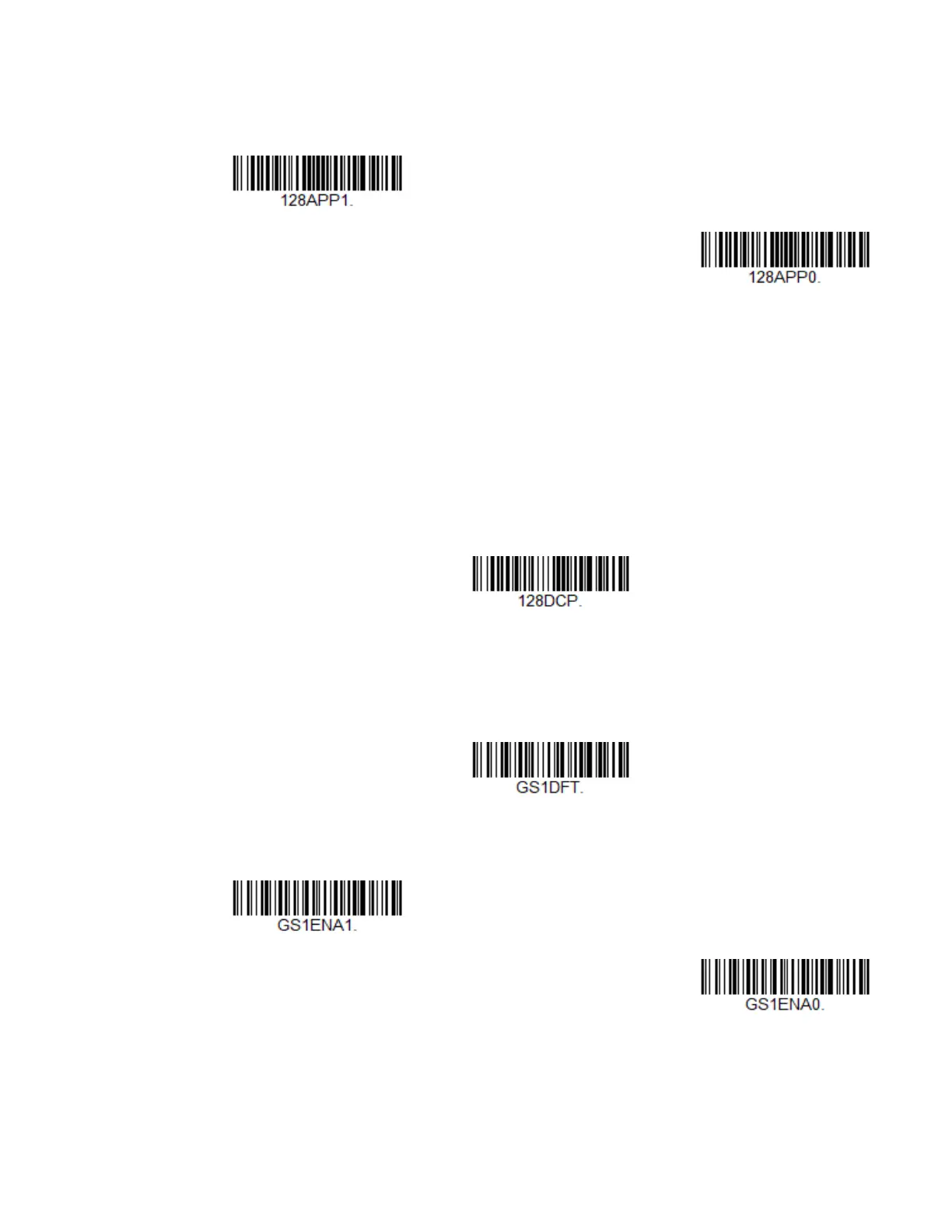

GS1-128
<Default All GS1-128 Settings>
GS1-128 On/Off
On
* Off
Code 128 Code Page
* On
Off

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
