Xenon/Granit User Guide 13

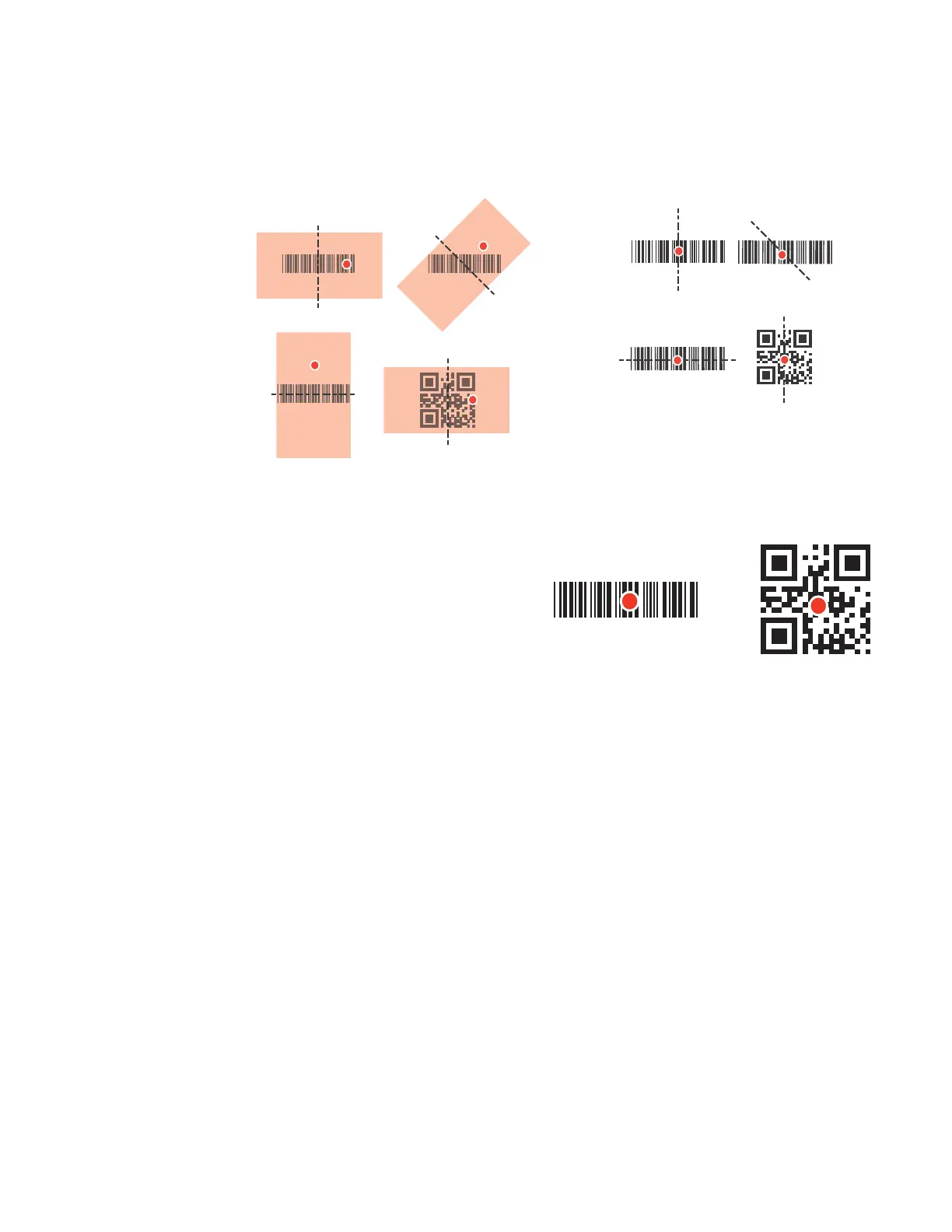

center of the bar code. At far distances the red box may not be apparent. For both
near distance and far distance, the aimers can be positioned in any direction for a
good read.
Granit 1920i DPM Scanner
The Granit 1920i scanner uses a red aim-
ing dot to locate bar codes. Center the
aimer on the bar code.
The aiming beam or pattern is smaller when the scanner is closer to the code and
larger when it is farther from the code. Symbologies with smaller bars or elements
(mil size) should be read closer to the unit. Symbologies with larger bars or ele-
ments (mil size) should be read farther from the unit. To read single or multiple
symbols (on a page or on an object), hold the scanner at an appropriate distance
from the target, pull the trigger, and center the aiming beam or pattern on the sym-
bol. If the code being scanned is highly reflective (e.g., laminated), it may be neces-
sary to tilt the code up 15° to 18° to prevent unwanted reflection.
Menu Bar Code Security Settings
Honeywell scanners are programmed by scanning menu bar codes or by sending
serial commands to the scanner. If you want to restrict the ability to scan menu
codes, you can use the Menu Bar Code Security settings. Contact the nearest tech-
nical support office (see Technical Assistance on page xvii) for further information.
Near distance scanning
less than 11.8 in/30 cm
Far distance scanning
up to 50 ft/15.2 m
