Y - Vertical Bar Code Offset
The vertical bar code offset allows you to offset the vertical center of the signature
capture area. Negative numbers indicate that the signature capture is above the
bar code, and positive numbers indicate that the area is below the bar code. Mea-
surements are in multiples of the minimum bar width
Example: .
RF Default Imaging Device
The scanner supports imaging command processing (IMGSHP, IMGSNP, IMGBOX)
so that EZConfig-Scanning (see page 263) and other applications are able to per-
form imaging functions as if they were communicating directly with a scanner. To
accomplish this, the scanner uses a menu command called RF_DID (RF Default
Imaging Device). RF_DID is the name of the scanner (BT_NAM) that is to receive
imaging commands. The default for RF_DID is “*”indicating that imaging com-
mands are to be sent to all associated scanners. Change this setting to RF_DID-
scanner_name to ensure that they are sent to a particular scanner. Refer to
"Page" on page 3-54 to generate a report containing the port, work group, scanner
name, and address for each scanner. Refer to "Scanner Name" on page 3-68 set a
unique name for each scanner.

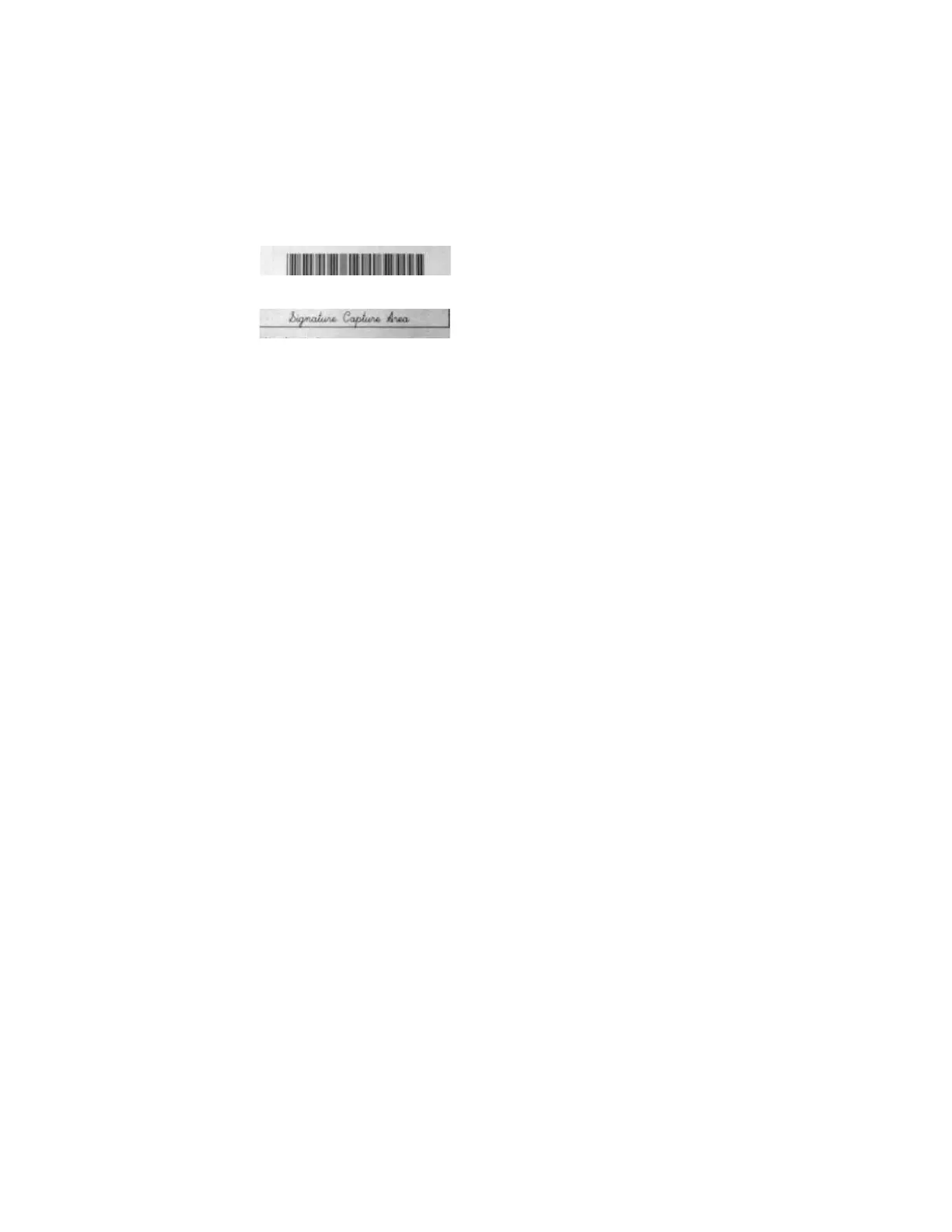

Vertical Offset set to -7Y:
Vertical Offset set to 65Y:

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
