226 Xenon/Granit User Guide
GS1 Composite Codes
Linear codes are combined with a unique 2D composite component to form a new
class called GS1 Composite symbology. GS1 Composite symbologies allow for the
co-existence of symbologies already in use. Default = Off.
UPC/EAN Version
Scan the UPC/EAN Version On bar code to decode GS1 Composite symbols that
have a U.P.C. or an EAN linear component. (This does not affect GS1 Composite
symbols with a GS1-128 or GS1 linear component.) Default = UPC/EAN Version Off.
Note: If you scan coupons that have both UPC and GS1 DataBar codes, you may wish to
scan and output only the data from the GS1 DataBar code. See Coupon GS1 DataBar
Output (page 210) for further information.
GS1 Composite Code Message Length

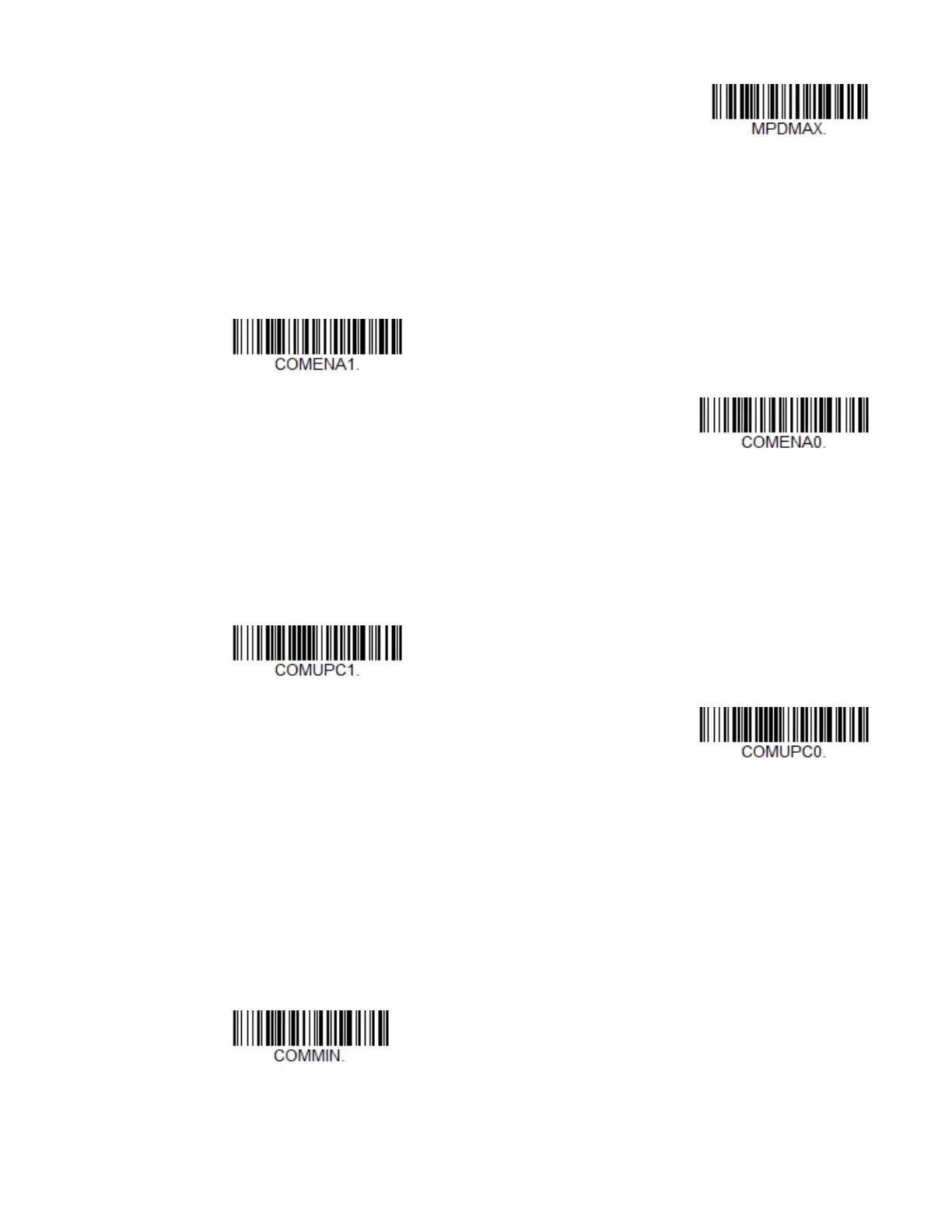

Scan the bar codes below to change the message length. Refer to Message Length
Description (page 188) for additional information. Minimum and Maximum
lengths = 1-2435. Minimum Default = 1, Maximum Default = 2435.
Maximum Message Length
On
* Off
UPC/EAN Version On
* UPC/EAN Version Off
Minimum Message Length

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
