124 Xenon/Granit User Guide
Scan Presentation Centering On, then scan one of the following bar codes to
change the top, bottom, left, or right of the centering window. Then scan the per-
cent you want to shift the centering window from the Programming Chart, begin-
ning on page 353, then Save. Default Presentation Centering = 40% for Top and
Left, 60% for Bottom and Right.
In-Stand Sensor Mode
Note: The In-Stand Sensor feature only applies to Xenon 1900, 1900h, 1902, and 1902h
products. It does not apply to the Xenon 1902g-BF or Granit products.

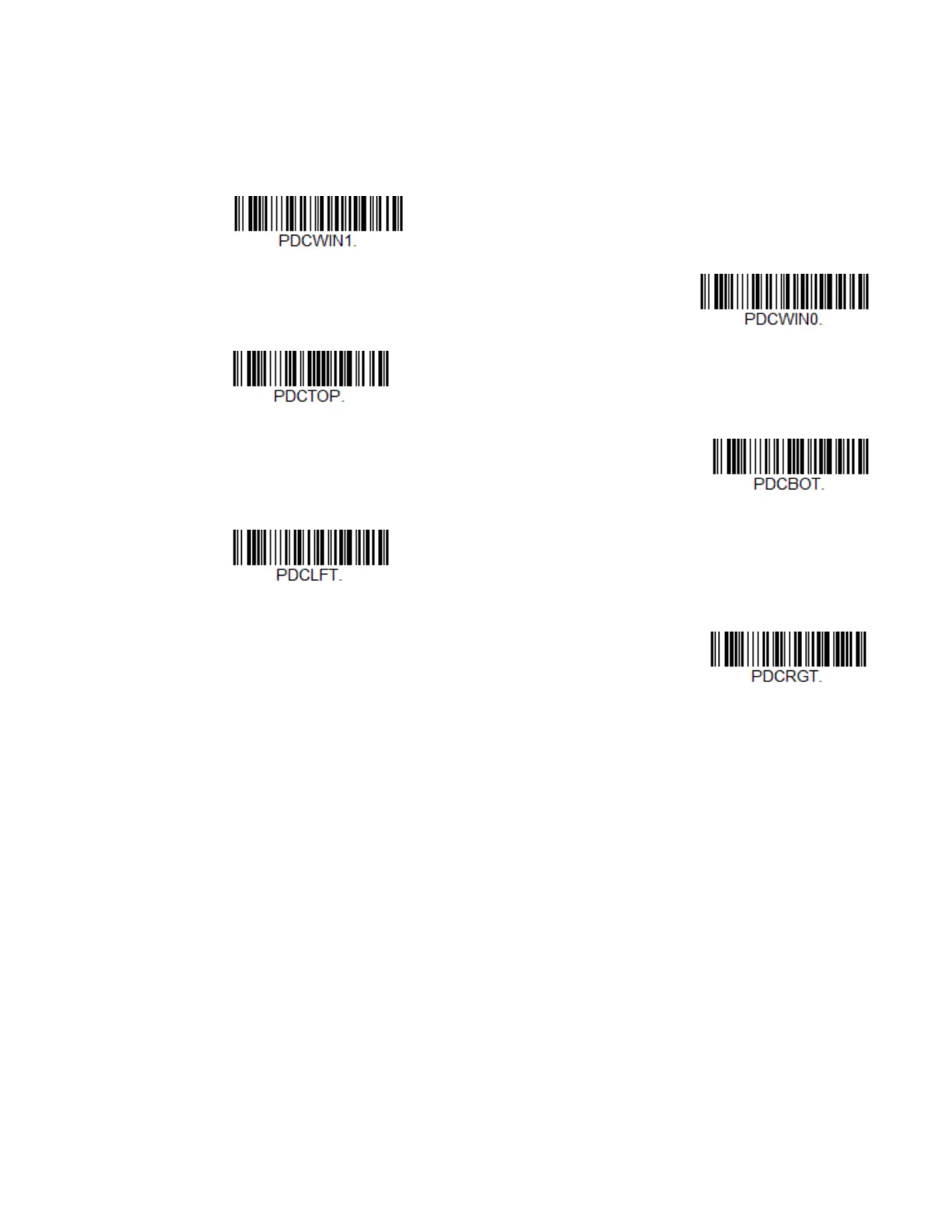

Presentation Centering On
* Presentation Centering Off
Top of Presentation
Centering Window
Bottom of Presentation
Centering Window
Left of
Presentation Centering
Window
Right of Presentation
Centering Window

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
