Honeywell XENON 1902 User Manual

234 Xenon/Granit User Guide
Han Xin Code Message Length

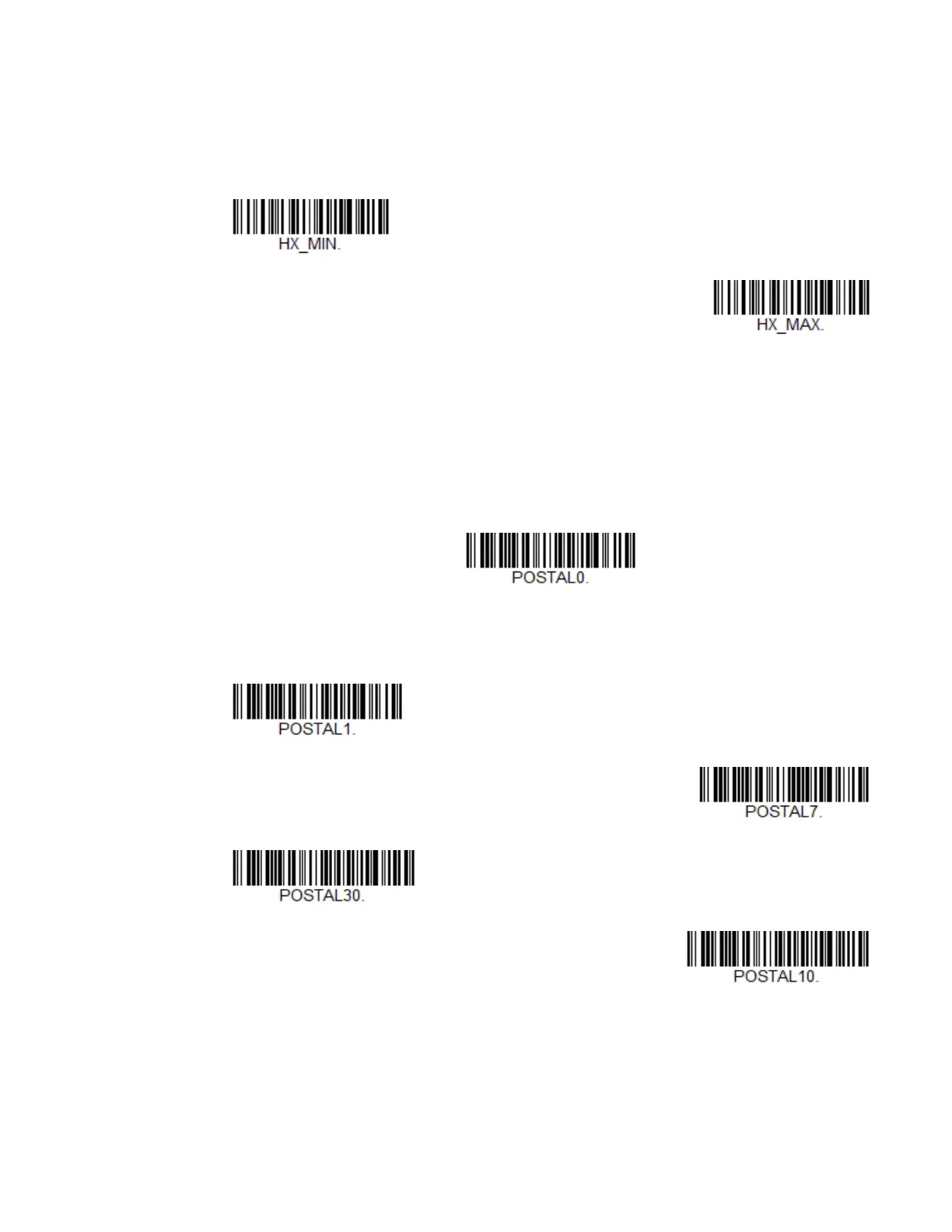

Scan the bar codes below to change the message length. Refer to Message Length
Description (page 188) for additional information. Minimum and Maximum
lengths = 1-7833. Minimum Default = 1, Maximum Default = 7833.
Postal Codes - 2D
The following lists the possible 2D postal codes, and 2D postal code combinations
that are allowed. Only one 2D postal code selection can be active at a time. If you
scan a second 2D postal code selection, the first selection is overwritten.
Default = 2D Postal Codes Off.
Single 2D Postal Codes:
Minimum Message Length
Maximum Message Length
* 2D Postal Codes Off
Australian Post On
British Post On
Canadian Post On
Intelligent Mail Bar Code On

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
