Honeywell XENON 1902 User Manual

54 Xenon/Granit User Guide
Page
Page Mode
By default, the paging button on the base or Access Point pages the scanners
associated with that base or Access Point. If you want the paging button on your
base or Access Point to be disabled, scan the Page Mode Off bar code, below.
When Page Mode is off, the base or Access Point will no longer page scanners when
the button is pressed. The red LED on the base or blue LED on the Access Point will
remain lit to indicate that Page Mode is off. (This light will go out when the button
is pressed, then back on when it’s released.) Default = Page Mode On.
Note: If you are using a Xenon 1902h model, refer to Quiet Operations - LED and Volume
Settings on page 151 for additional Page Button settings.
Page Pitch
When you press the Page button on the base or Access Point, the scanners associ-
ated with that base or Access Point will begin beeping (see Page Button on page
47). You can set the pitch of the paging beep for each scanner by scanning one of
the following bar codes. Default = Low.
External Power Only

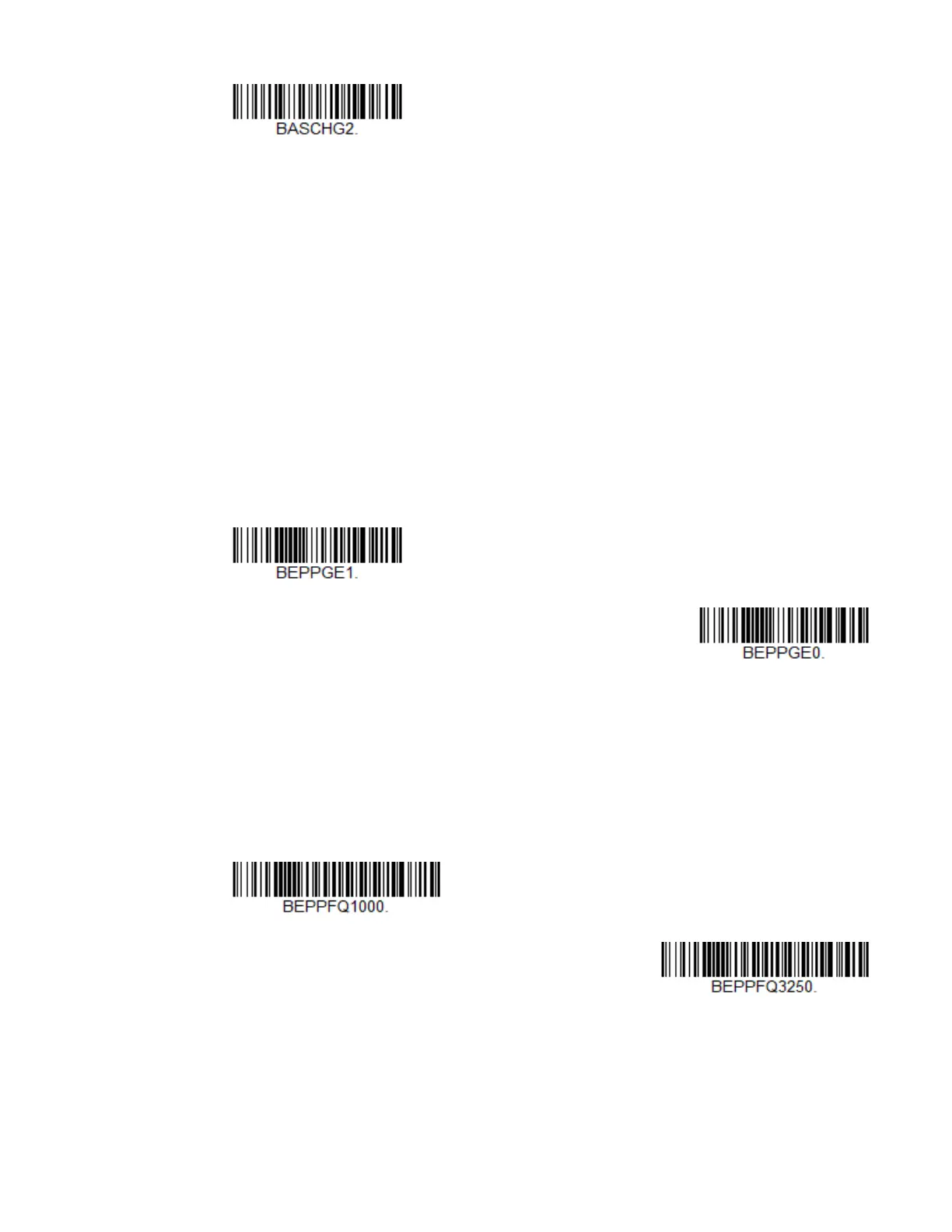

* Page Mode On
Page Mode Off
* Low (1000 Hz)
Medium (3250 Hz)

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
