Xenon/Granit User Guide 127
CodeGate
®
Note: CodeGate is not supported by the Granit 1980i and 1981i.
When CodeGate is On, the trigger is used to allow decoded data to be transmitted
to the host system. The scanner remains on, scanning and decoding bar codes, but
the bar code data is not transmitted until the trigger is pressed. When CodeGate is
Off, bar code data is transmitted when it is decoded. Default = CodeGate Off Out-of-
Stand.
Streaming Presentation™ Mode
When in Streaming Presentation mode, the scanner’s aimer goes out after a short
time, but the scan illumination remains on all the time to continuously search for
bar codes. Two modes are available, Normal and Enhanced. Normal mode offers
good scan speed and the longest working ranges (depth of field). Enhanced mode
will give you the highest possible scan speed but slightly less range than Normal
mode. Enhanced mode is best used when you require a very fast scan speed and
don’t require a long working range.
Note: Granit 1920i, 1980i and 1981i do not support Enhanced Streaming Presentation
Mode.
When using Preferred Symbology (page 5-136), a lower priority symbol must be
centered on the aiming pattern to be read in Streaming Presentation Mode.
Note: If you are using a cordless charge base, it must have an external power supply
plugged into the aux port for Streaming Presentation to work properly.

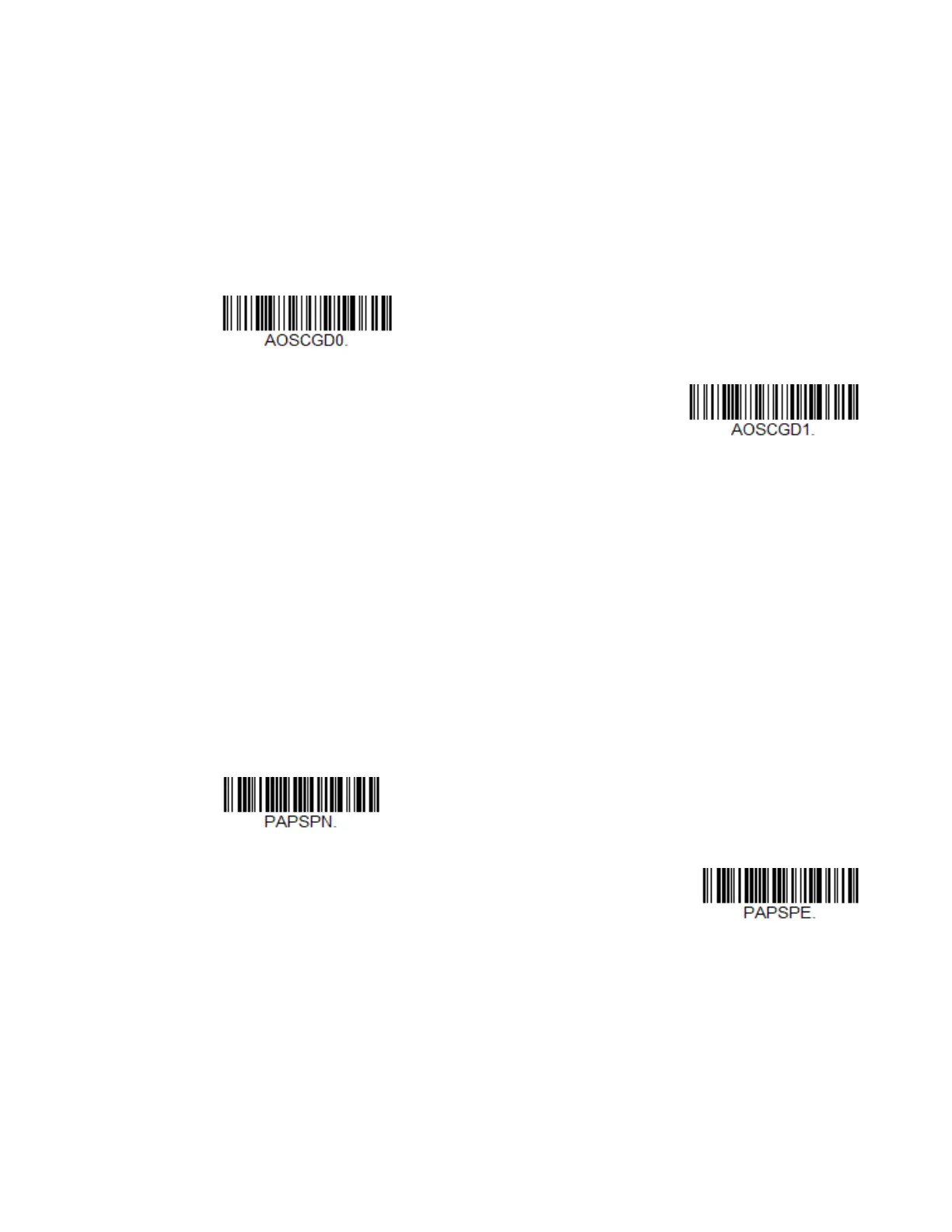

* CodeGate Off
Out-of-Stand
CodeGate On
Out-of-Stand
Streaming Presentation
Mode - Normal
Streaming Presentation
Mode - Enhanced

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
