Honeywell XENON 1902 User Manual

238 Xenon/Granit User Guide

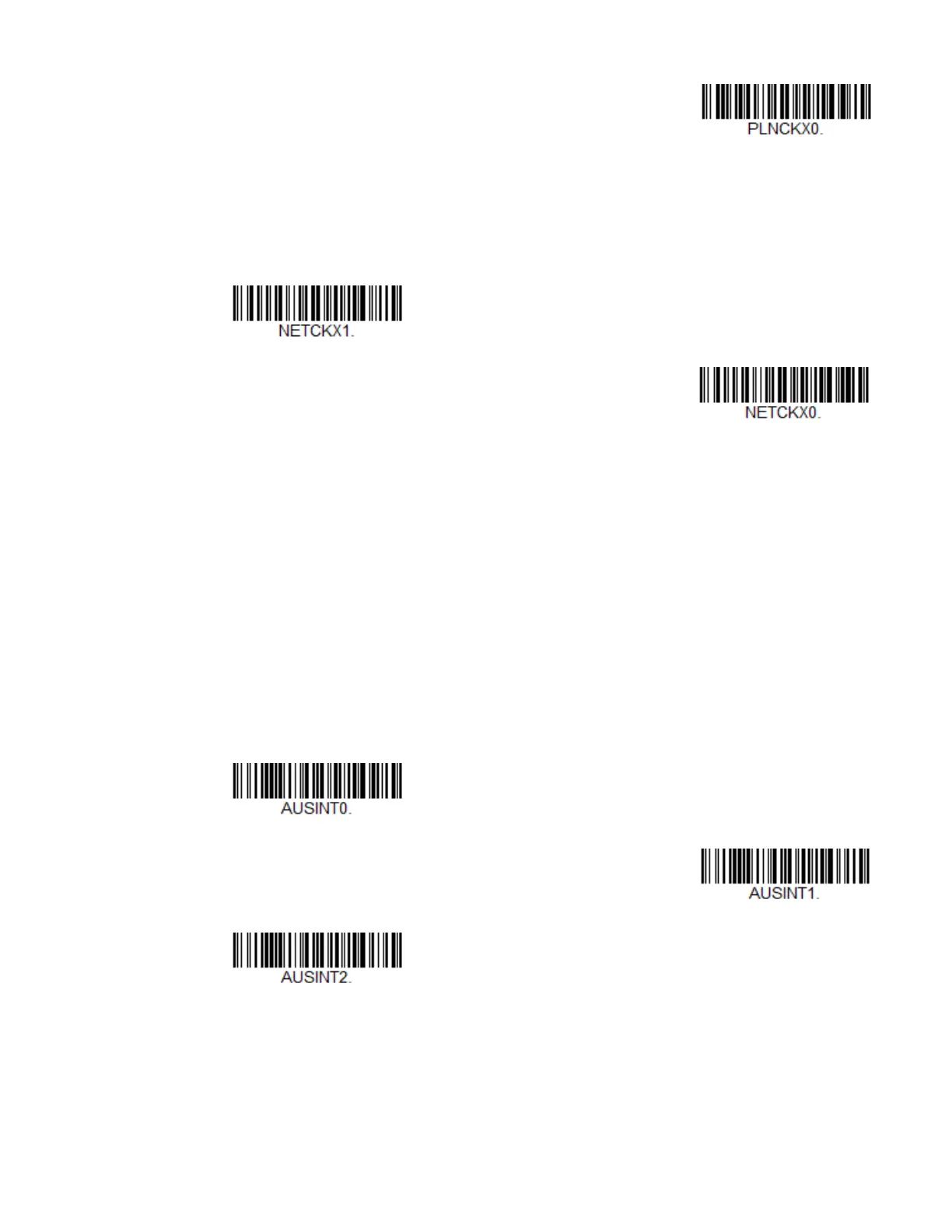

Postnet Check Digit
This selection allows you to specify whether the check digit should be transmitted
at the end of Postnet data. Default = Don’t Transmit.
Australian Post Interpretation
This option controls what interpretation is applied to customer fields in Australian
4-State symbols.
Bar Output lists the bar patterns in “0123” format.
Numeric N Table causes that field to be interpreted as numeric data using the N
Table.
Alphanumeric C Table causes the field to be interpreted as alphanumeric data
using the C Table. Refer to the Australian Post Specification Tables.
Combination C and N Tables causes the field to be interpreted using either the C
or N Tables.
* Don’t Transmit Check Digit
Transmit Check Digit
* Don’t Transmit Check Digit
* Bar Output
Numeric N Table
Alphanumeric C Table

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
