Honeywell XENON 1902 User Manual

Xenon/Granit User Guide 185

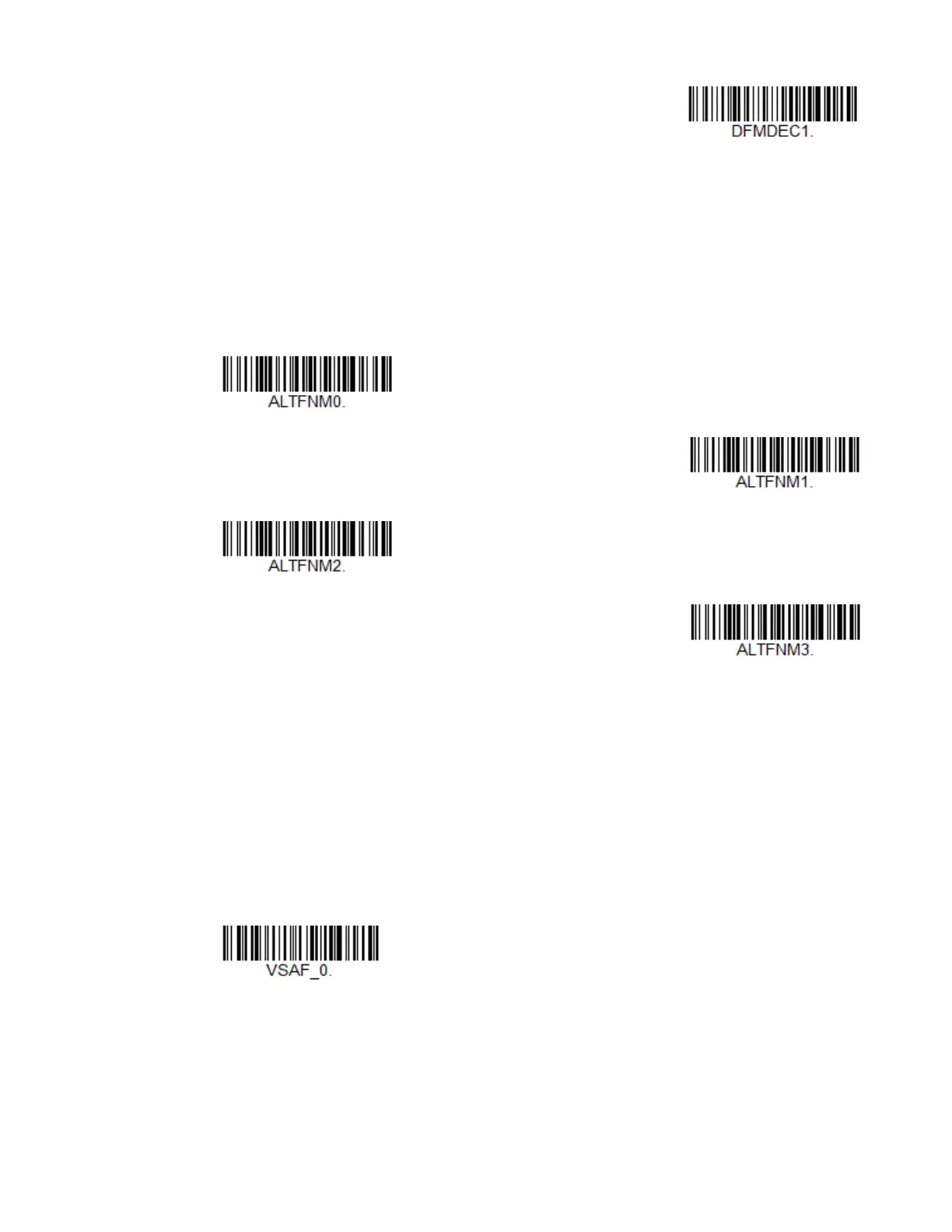

Primary/Alternate Data Formats
You can save up to four data formats, and switch between these formats. Your pri-
mary data format is saved under 0. Your other three formats are saved under 1, 2,
and 3. To set your device to use one of these formats, scan one of the bar codes
below.
Single Scan Data Format Change
You can also switch between data formats for a single scan. The next bar code is
scanned using an alternate data format, then reverts to the format you have
selected above (either Primary, 1, 2, or 3).
For example, you may have set your device to the data format you saved as Data
Format 3. You can switch to Data Format 1 for a single trigger pull by scanning the
Single Scan-Data Format 1 bar code below. The next bar code that is scanned
uses Data Format 1, then reverts back to Data Format 3.
Data Format Non-Match
Error Tone Off
Primary Data Format
Data Format 1
Data Format 2
Data Format 3
Single Scan-Primary
Data Format

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
