Honeywell XENON 1902 User Manual

Xenon/Granit User Guide 9
Connect with RS485
A Xenon scanner or cordless base can be connected for an IBM POS terminal inter-
face. (This interface is not available in the Granit devices.)
1. Connect the appropriate interface cable to the device, then to the computer.
Note: The power supply must be ordered separately, if needed.
2. Make sure the cables are secured in the wireways in the bottom of the cordless
base and the base sits flat on a horizontal surface.
3. Turn the terminal/computer power back on. The scanner beeps.
4. Verify the scanner or cordless base operation by scanning a bar code from the
Sample Symbols, beginning on page 351. The scanner beeps once. If using a
Granit scanner, it also vibrates.
For further RS485 settings, refer to RS485,page 18.

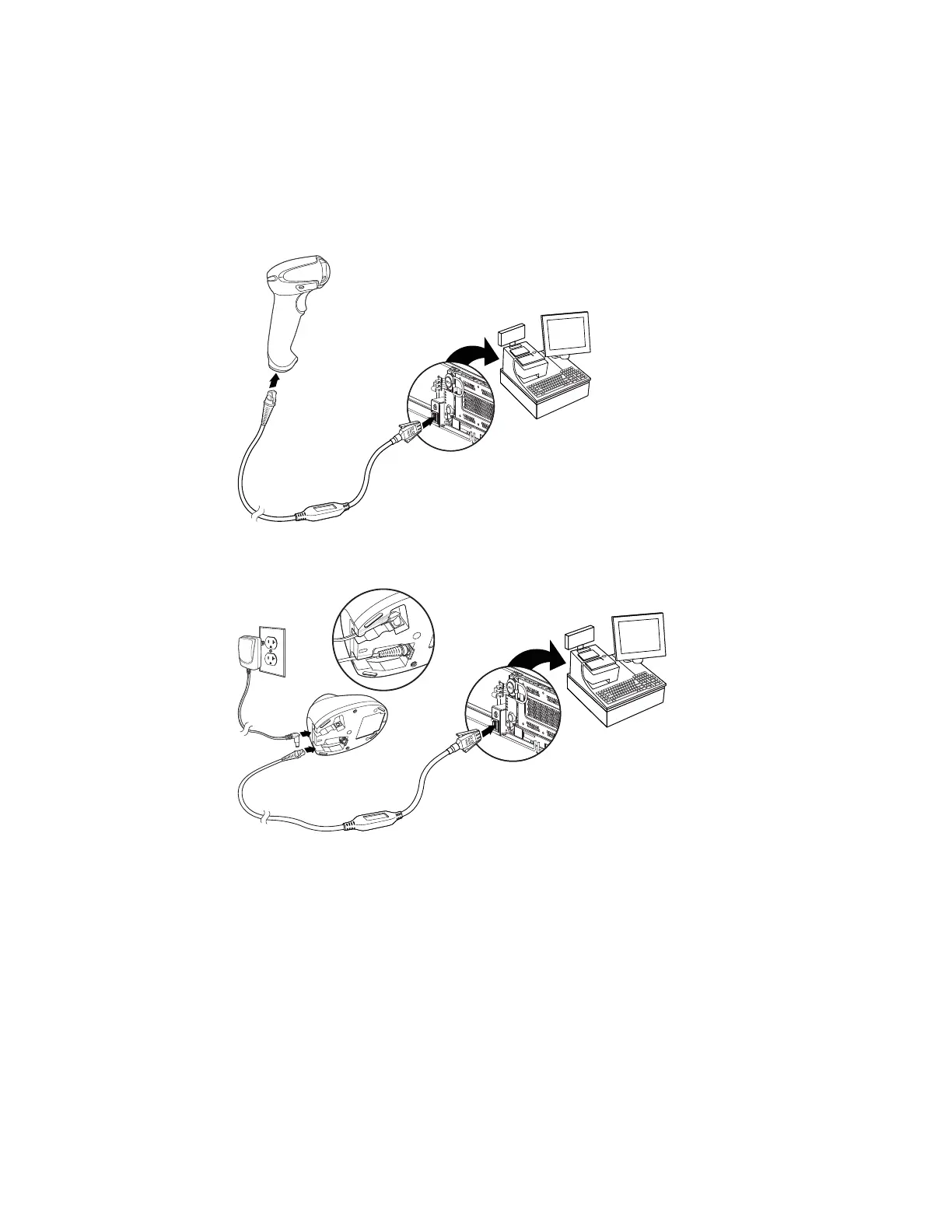

Corded Xenon Scanner RS485 Connection:
CCB01-010BT/CCB01-010BT-07N-BF Base RS485 Connection:

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
