Honeywell XENON 1902 User Manual

Xenon/Granit User Guide 153
LED Solid (No Flash)
Under normal operations, the scanner’s LED flashes once for a good read. You may
set the LED to remain on for a length of time after a good read instead of flashing.
Default = LED Solid Off (Resume Flash).
If you have scanned a bar code and don’t want to wait for the LED to turn off, press
the trigger a 2nd time and the LED turns off. You can then scan the next bar code.
Page Volume Control
Note: This setting is not supported by the Xenon 1900h scanner.
When you press the Page button on the base or Access Point, the scanners associ-
ated with that base or Access Point will begin beeping in response. If you pull the
trigger on a scanner that is beeping in response, or press the Page button on the
base or Access Point a second time, all associated scanners will stop beeping. The
following settings set the paging volume, independent of the volume used when
scanning bar codes. Default = Low.

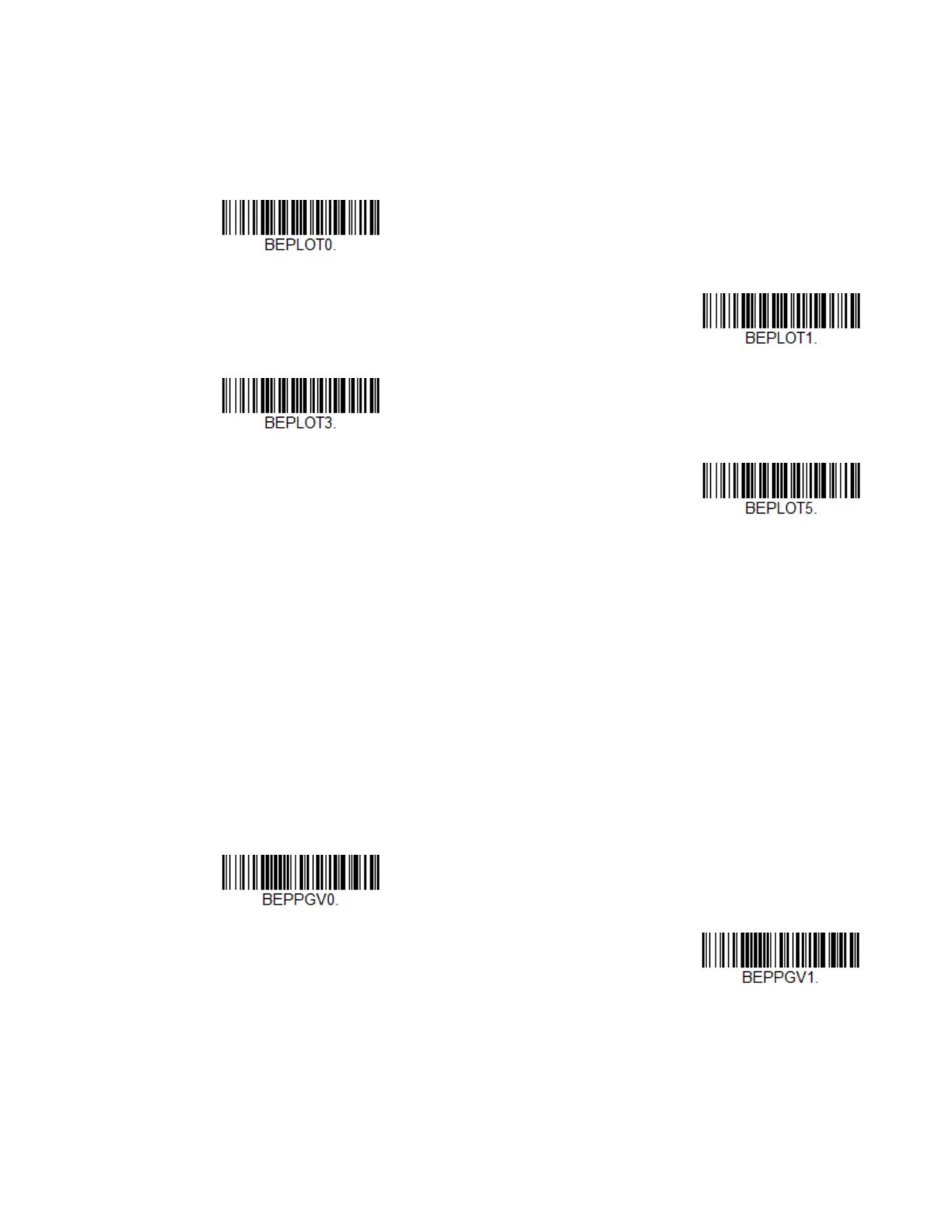

* LED Solid Off
(Resume Flash)
LED Solid 1 Second
LED Solid 3 Seconds
LED Solid 5 Seconds
Page Volume Off
* Page Volume Low

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
