Honeywell XENON 1902 User Manual

48 Xenon/Granit User Guide
Page Button and Presentation Modes
When in Streaming Presentation Mode, the scanner’s aimer goes out after a short
time, but the scan illumination remains on all the time to continuously search for
bar codes (see Streaming Presentation™ Mode on page 127). When in Temporary
Streaming Presentation Mode, pressing the page button on the base puts the
scanner into Streaming Presentation Mode until the timeout occurs. If a bar code is
scanned before the timeout is reached, the timer starts over.

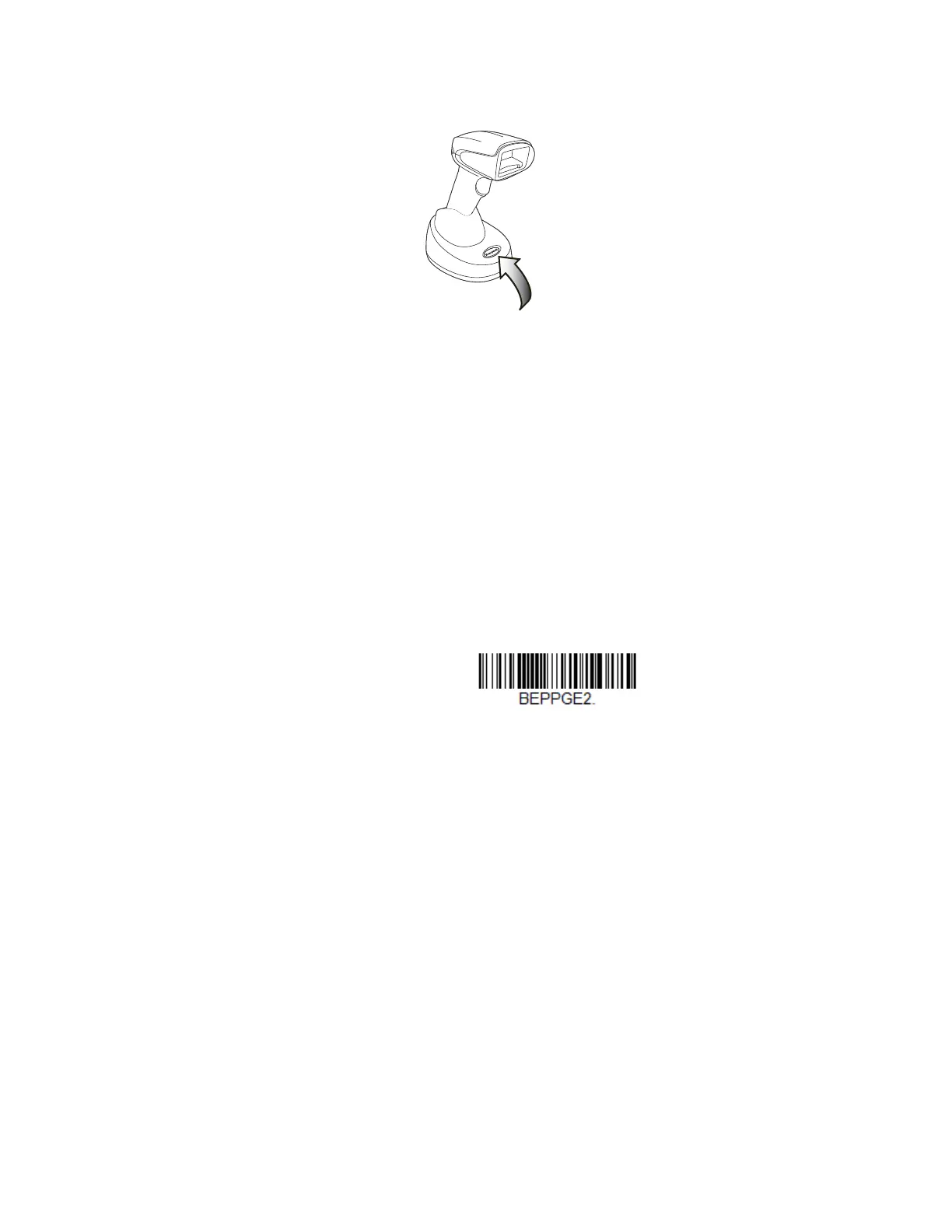

When the scanner is in the base, press the page button once to put the scanner
into Temporary Streaming Presentation Mode. When the scanner is in the base and
the base has external power (plugged into an outlet), press the page button twice
to put the scanner into Streaming Presentation Mode. Press it twice again to end
Streaming Presentation Mode. When the base does not have external power, press-
ing the page button twice does not trigger Streaming Presentation Mode.
When the scanner is out of the base, the page button works normally. Default =
Temporary Streaming Presentation Mode On.
To remove Temporary Streaming Presentation Mode, scan the bar code for * Page
Mode On on page 54.
* Temporary Streaming Presentation Mode
On

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
