Honeywell XENON 1902 User Manual

190 Xenon/Granit User Guide

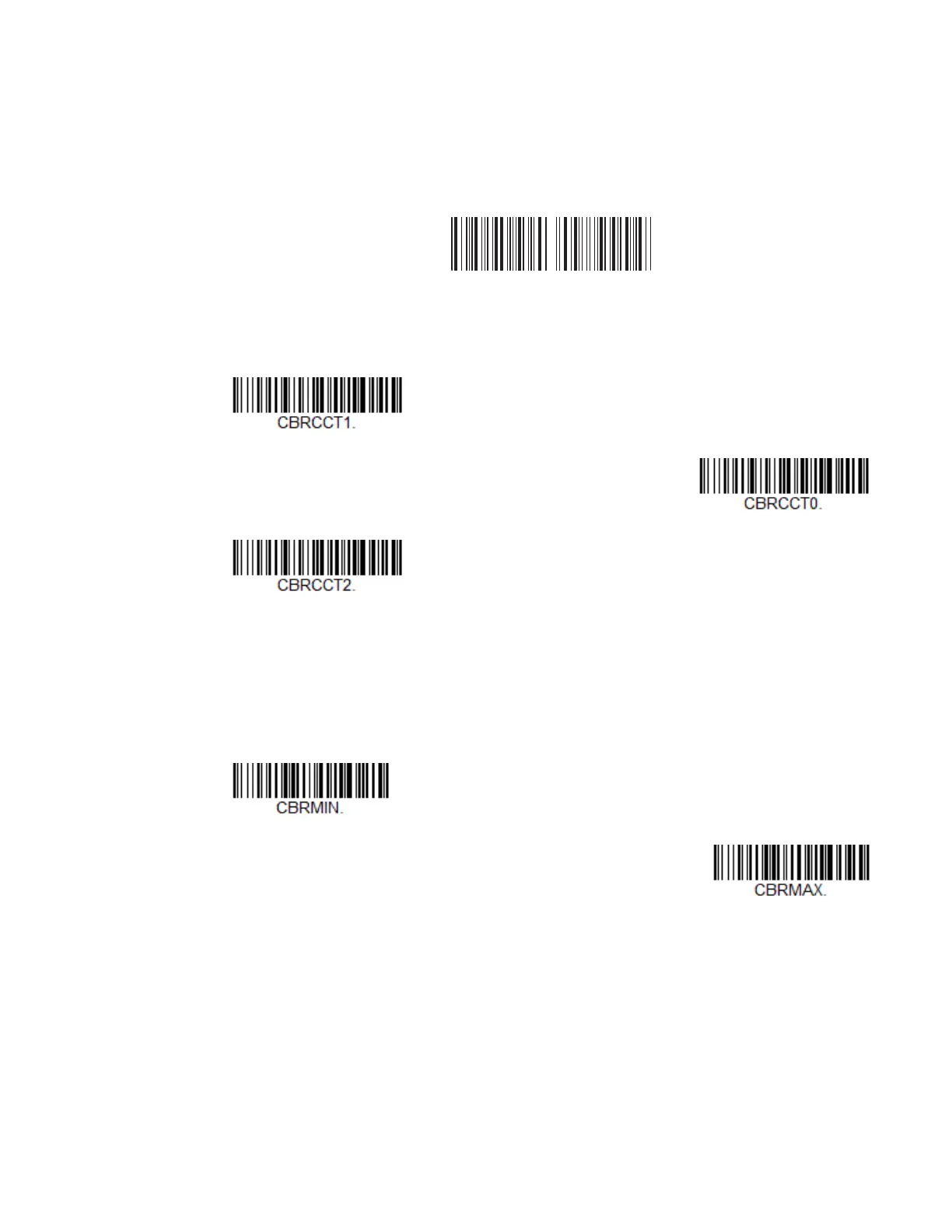

Codabar Concatenation
Codabar supports symbol concatenation. When you enable concatenation, the
scanner looks for a Codabar symbol having a “D” start character, adjacent to a
symbol having a “D” stop character. In this case the two messages are concate-
nated into one with the “D” characters omitted.
Select Require to prevent the scanner from decoding a single “D” Codabar symbol
without its companion. This selection has no effect on Codabar symbols without
Stop/Start D characters.
Codabar Message Length
Scan the bar codes below to change the message length. Refer to Message Length
Description (page 188) for additional information. Minimum and Maximum
lengths = 2-60. Minimum Default = 4, Maximum Default = 60.
A123 4D D5 6 7 8 A
On
* Off
Require
Minimum Message Length
Maximum Message Length

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
