Honeywell XENON 1902 User Manual

Xenon/Granit User Guide 229
QR Code Append

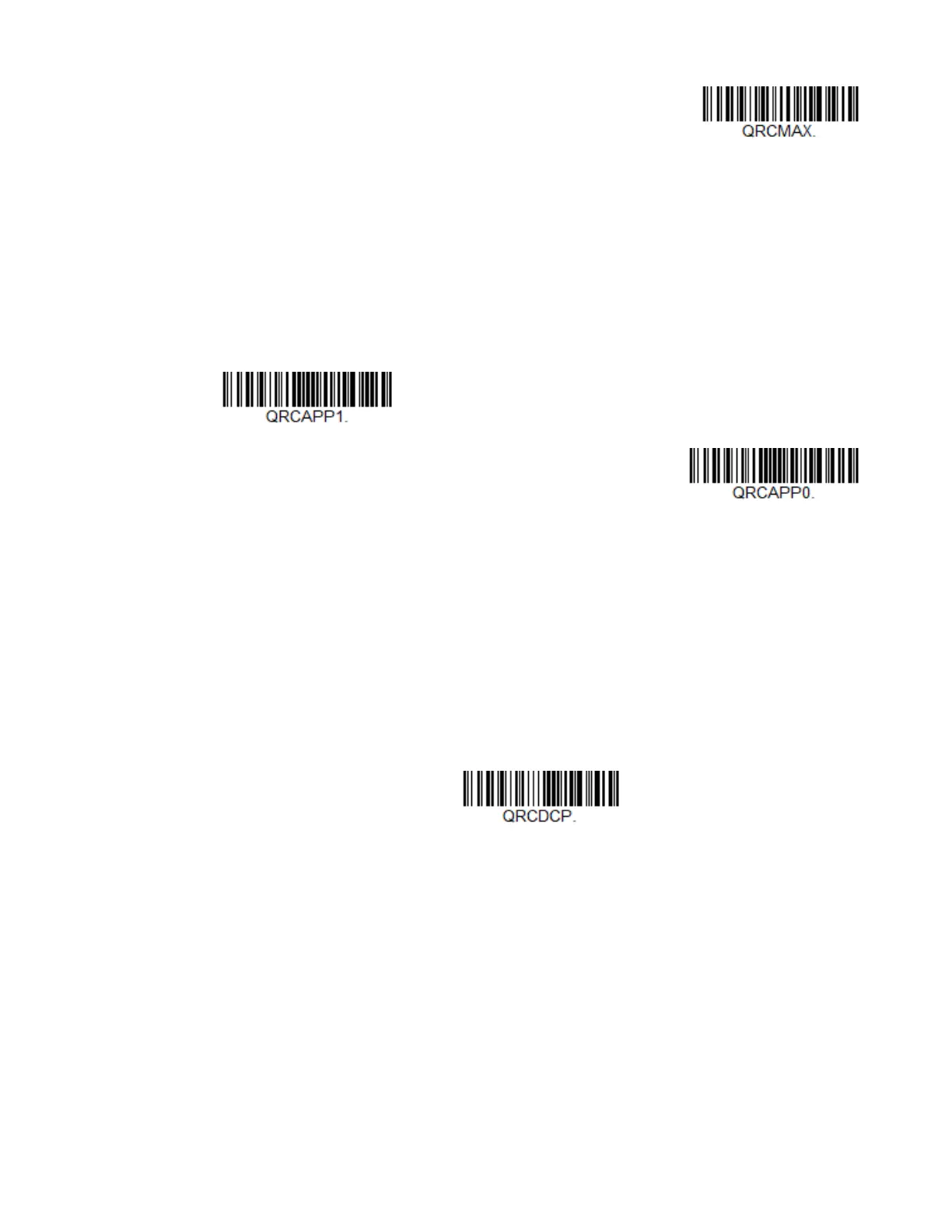

This function allows the scanner to append the data from several QR Code bar
codes together before transmitting them to the host computer. When the scanner
encounters an QR Code bar code with the append trigger character(s), it buffers
the number of QR Code bar codes determined by information encoded in those bar
codes. Once the proper number of codes is reached, the data is output in the order
specified in the bar codes. Default = On.
QR Code Page
QR Code pages define the mapping of character codes to characters. If the data
received does not display with the proper characters, it may be because the bar
code being scanned was created using a code page that is different from the one
the host program is expecting. If this is the case, scan the bar code below, select
the code page with which the bar codes were created (see ISO 2022/ISO 646
Character Replacements on page 346), and scan the value and the Save bar code
from the Programming Chart, beginning on page 353Programming Chart, begin-
ning on page 353. The data characters should then appear properly.
Maximum Message Length
* On
Off
QR Code Page

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
