Xenon/Granit User Guide 251
K - Gamma Correction
Gamma measures the brightness of midtone values produced by the image. You
can brighten or darken an image using gamma correction. A higher gamma correc-
tion yields an overall brighter image. The lower the setting, the darker the image.
The optimal setting for text images is 50K.
0K Gamma correction off (default)
50K Apply gamma correction for brightening typical document image
nK Apply gamma correction factor n (n = 0-1,000)
Example:
L, R, T, B, M - Image Cropping
Ships a window of the image by specifying the left, right, top, and bottom pixel
coordinates. Device columns are numbered 0 through 1279, and device rows are
numbered 0 through 959.
nL The left edge of the shipped image corresponds to column n of the image
in memory. Range: 000 - 843. (Default = 0)
nR The right edge of the shipped image corresponds to column n - 1 of the
image in memory. Range: 000 - 843. (Default = all columns)
nT The top edge of the shipped image corresponds to row n of the image in
memory. Range: 000 - 639. (Default = 0)

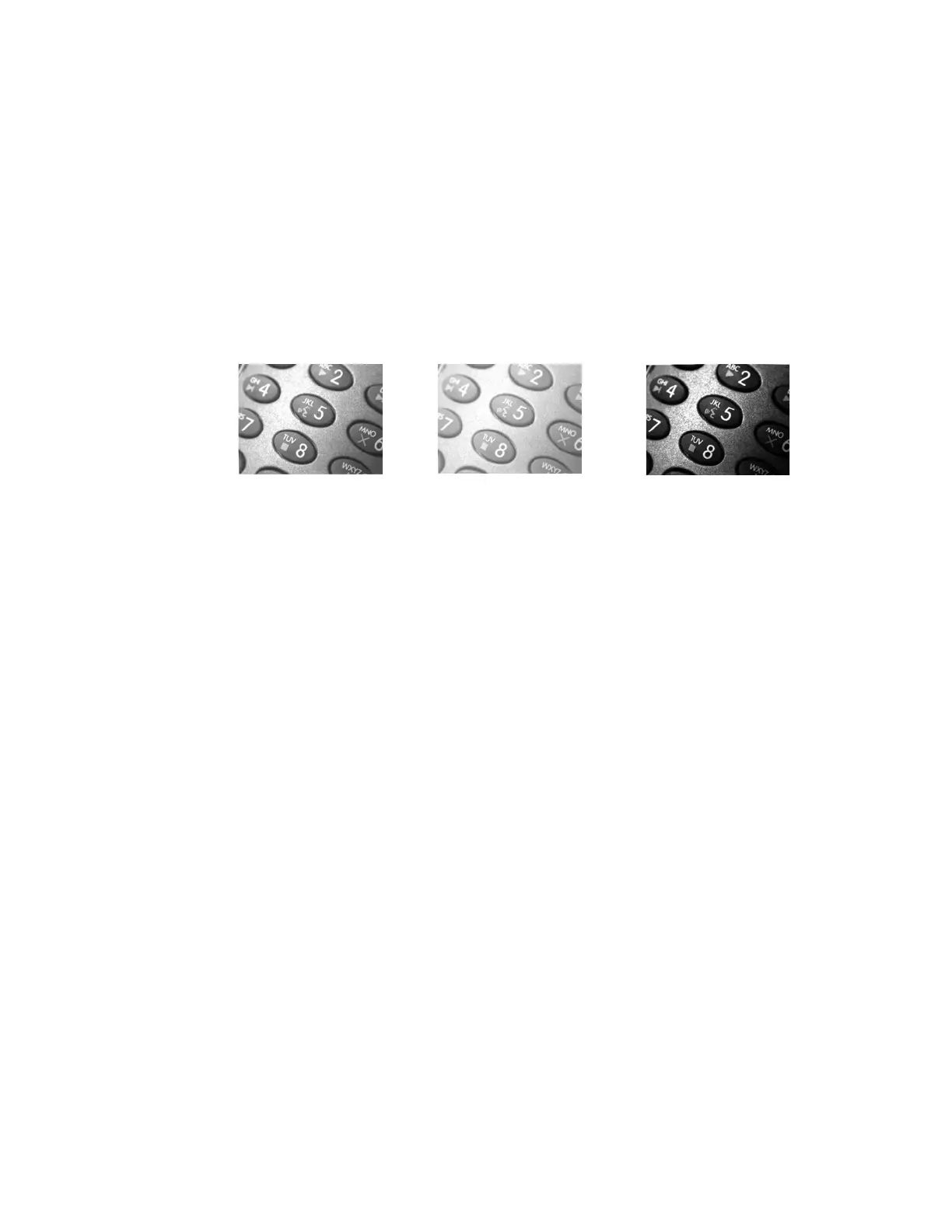

Gamma Correction set
to 50K:
Gamma Correction set
to 0K:
Gamma Correction set
to 255K:

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
