Replace a Xenon Interface Cable
1. Turn off the power to the host system.
2. Disconnect the scanner’s cable from the terminal
or computer.

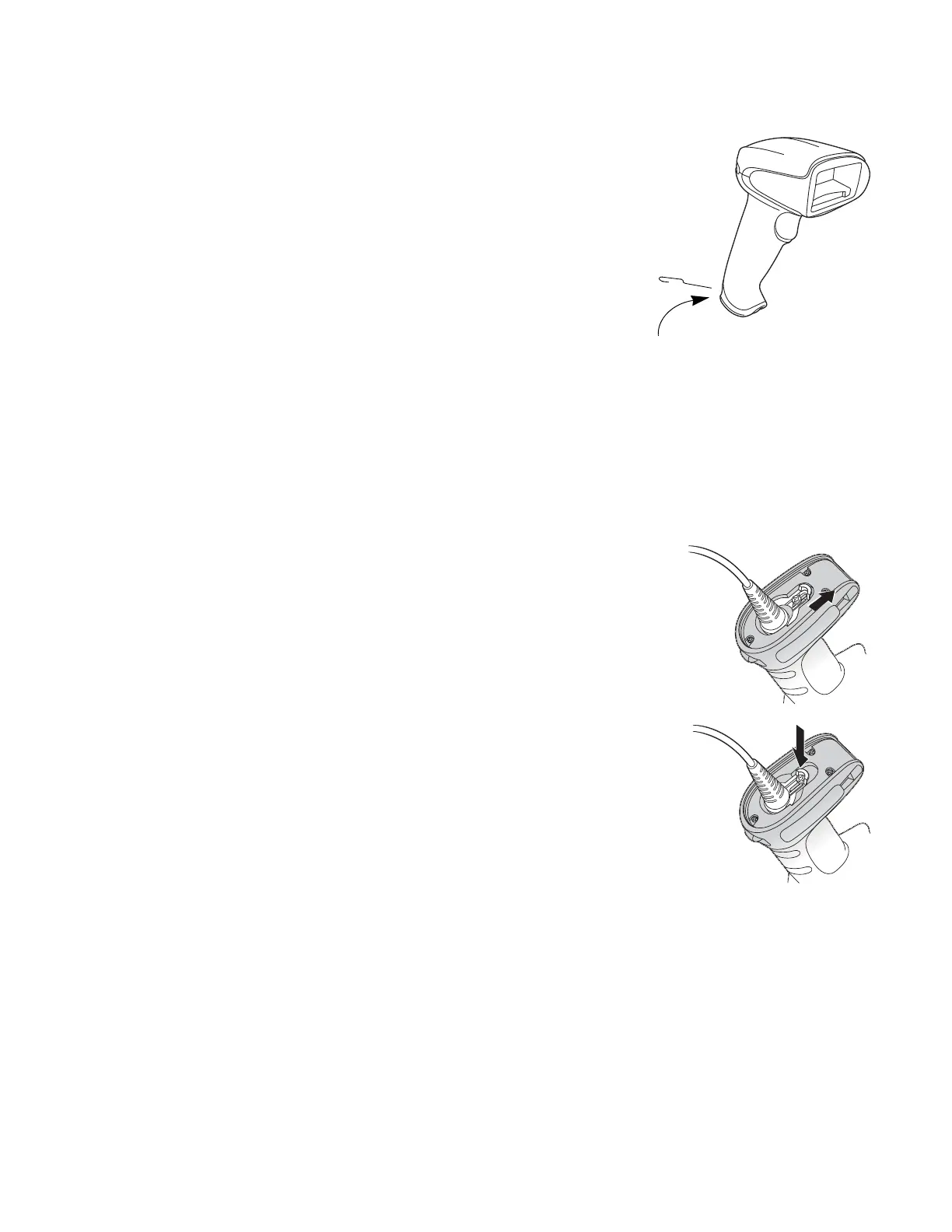

3. Locate the small hole on the back of the scanner’s
handle. This is the cable release.
4. Straighten one end of a paper clip.
5. Insert the end of the paper clip into the small hole
and press in. This depresses the retention tab,
releasing the connector. Pull the connector out
while maintaining pressure on the paper clip, then
remove the paper clip.
6. Replace with the new cable.
Insert the connector into the opening and press firmly. The connector is keyed
to go in only one way, and will click into place.
Replace a Granit Interface Cable
1. Turn the power to the host system OFF.
2. Disconnect the scanner’s cable from the terminal or
computer.
3. Unscrew the locking plate on the bottom of the
scanner.
4. Slide the locking plate away from the connector and
pull the cable out of the scanner.
5. Replace with the new cable.
Insert the connector into the opening and press firmly.
6. Slide the locking plate over the base of the connector
to secure the cable, and screw the plate into place.
Replace Cables and Batteries in Cordless Systems
Replace an Interface Cable in a Base
1. Turn the power to the host system OFF.
2. Disconnect the base’s cable from the terminal or computer.
Cable
Release

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
