HP 1660 Series Training Guide

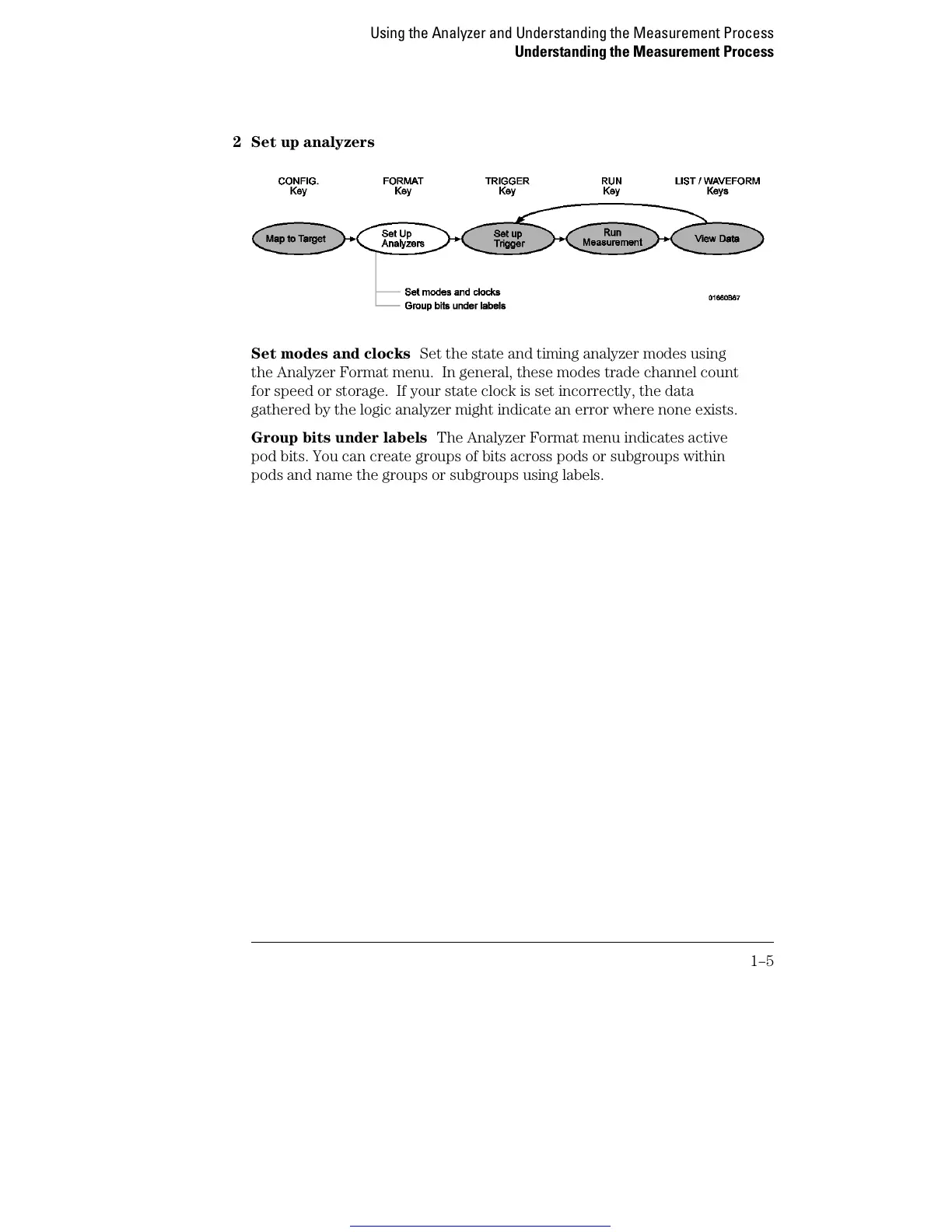

2 Set up analyzers
Set modes and clocks Set the state and timing analyzer modes using
the Analyzer Format menu. In general, these modes trade channel count
for speed or storage. If your state clock is set incorrectly, the data
gathered by the logic analyzer might indicate an error where none exists.
Group bits under labels The Analyzer Format menu indicates active
pod bits. You can create groups of bits across pods or subgroups within
pods and name the groups or subgroups using labels.
Using the Analyzer and Understanding the Measurement Process
Understanding the Measurement Process
1–5
