HP 1660 Series Training Guide

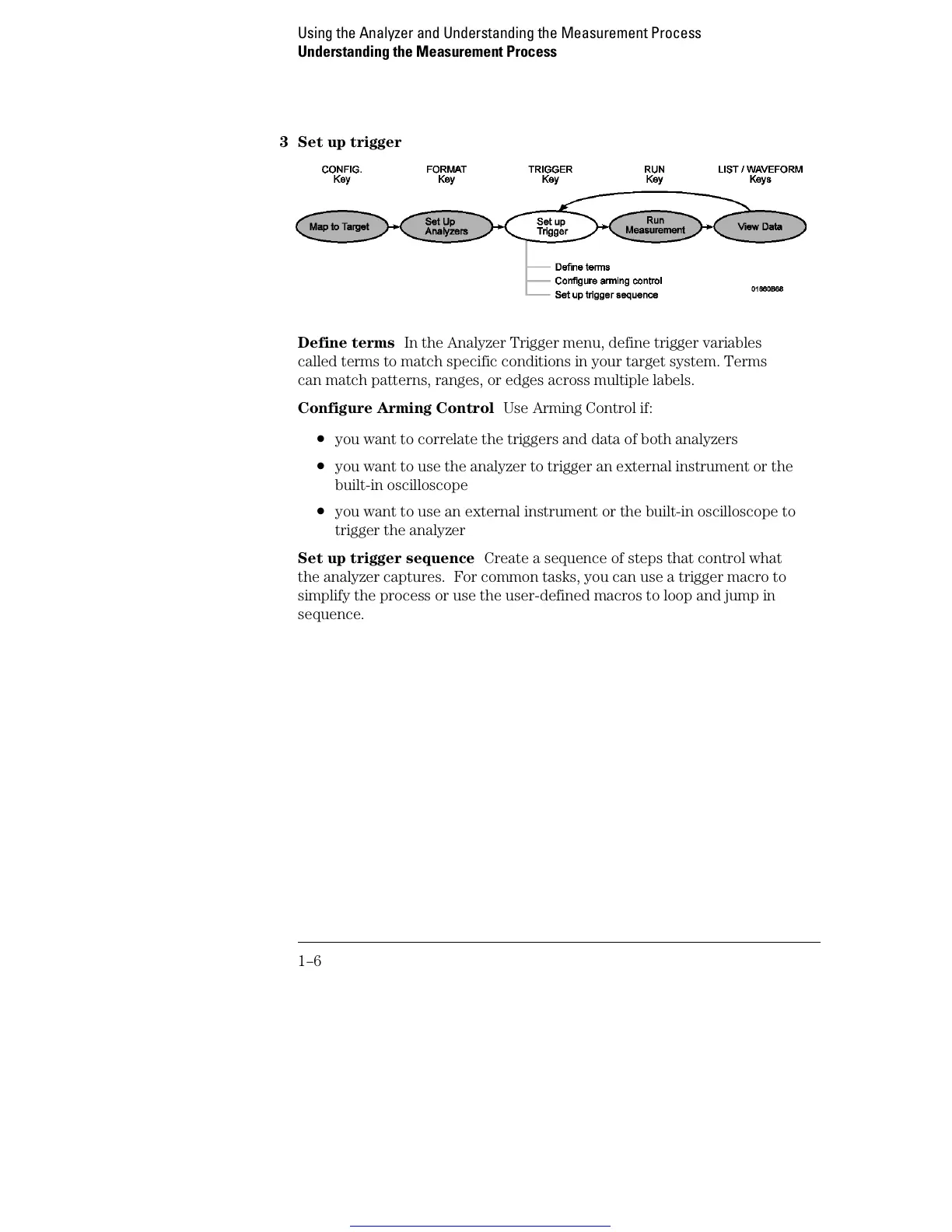

3 Set up trigger
Define terms In the Analyzer Trigger menu, define trigger variables
called terms to match specific conditions in your target system. Terms
can match patterns, ranges, or edges across multiple labels.
Configure Arming Control Use Arming Control if:
•
you want to correlate the triggers and data of both analyzers
•
you want to use the analyzer to trigger an external instrument or the
built-in oscilloscope
•
you want to use an external instrument or the built-in oscilloscope to
trigger the analyzer
Set up trigger sequence Create a sequence of steps that control what
the analyzer captures. For common tasks, you can use a trigger macro to
simplify the process or use the user-defined macros to loop and jump in
sequence.
Using the Analyzer and Understanding the Measurement Process
Understanding the Measurement Process
1–6
