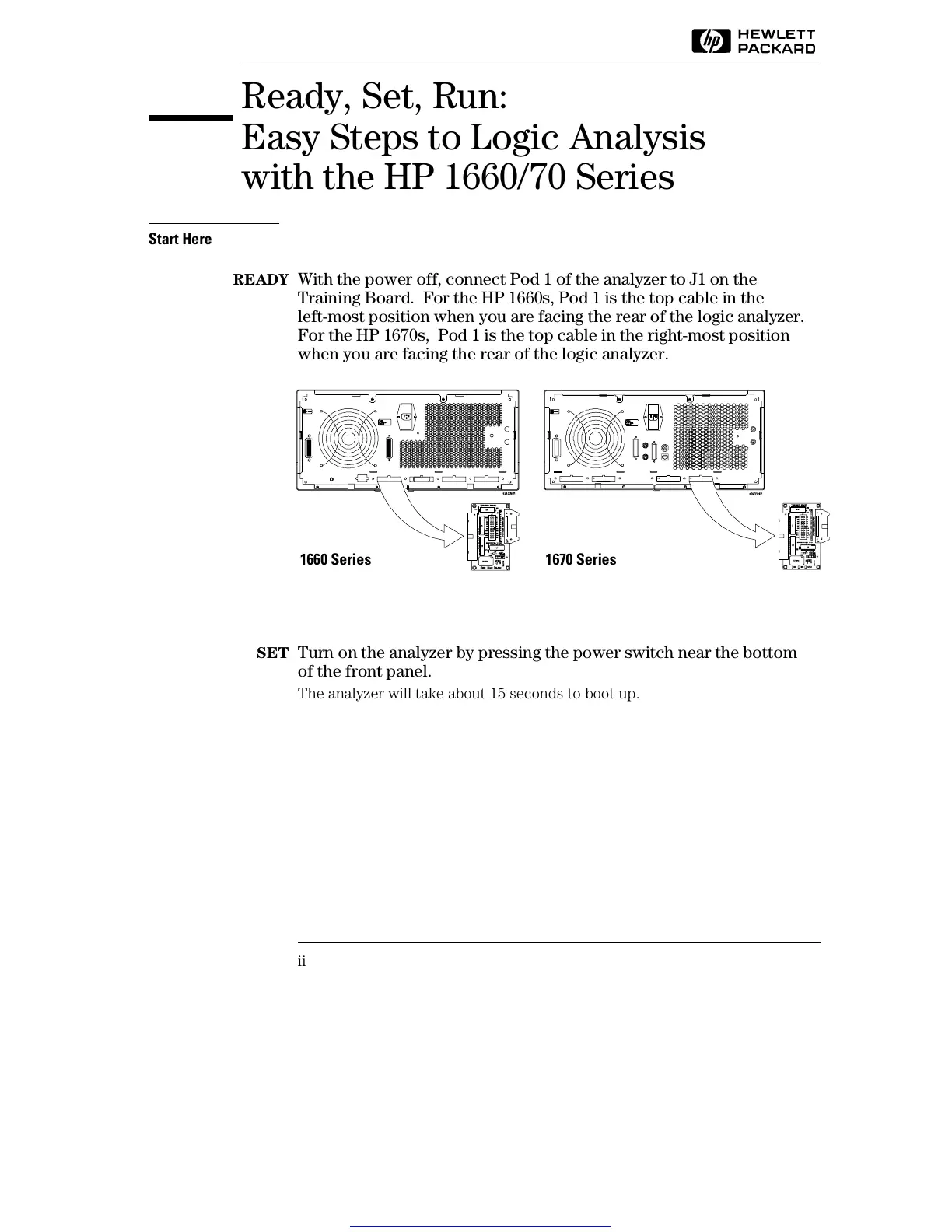

HP 1660 Series Training Guide

Ready, Set, Run:
Easy Steps to Logic Analysis
with the HP 1660/70 Series
Start Here
READY
With the power off, connect Pod 1 of the analyzer to J1 on the
Training Board. For the HP 1660s, Pod 1 is the top cable in the
left-most position when you are facing the rear of the logic analyzer.
For the HP 1670s, Pod 1 is the top cable in the right-most position
when you are facing the rear of the logic analyzer.
SET Turn on the analyzer by pressing the power switch near the bottom
of the front panel.
The analyzer will take about 15 seconds to boot up.
1660 Series 1670 Series
ii
Get other manuals https://www.bkmanuals.com

HP 1660 Series Specifications

General

Category	Logic Analyzer
Glitch Trigger	Yes
Pattern Trigger	Yes
State Analysis	Yes
Transitional Timing	Yes
Trigger Modes	Edge, Pattern, Glitch
