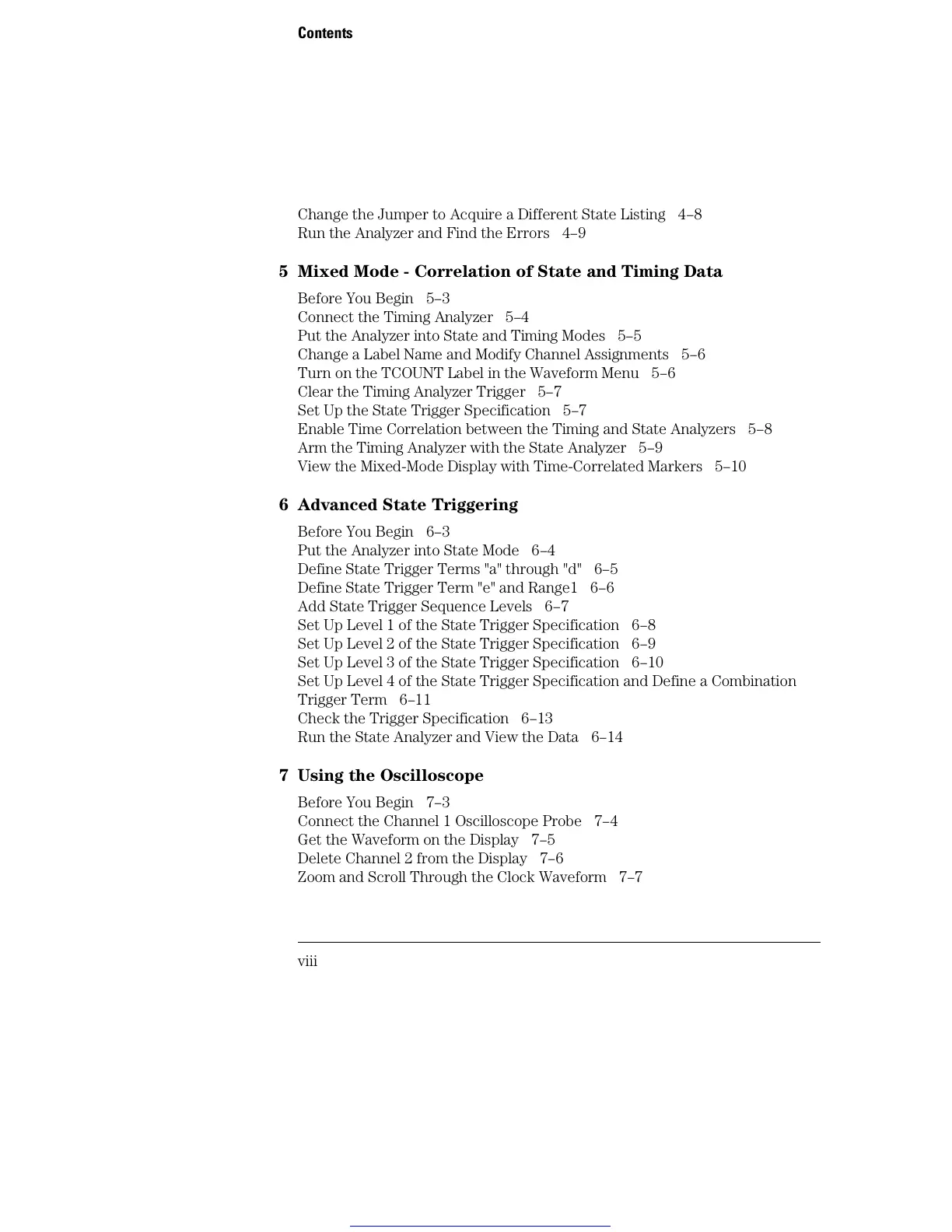

HP 1660 Series

Change the Jumper to Acquire a Different State Listing 4–8
Run the Analyzer and Find the Errors 4–9
5 Mixed Mode - Correlation of State and Timing Data
Before You Begin 5–3
Connect the Timing Analyzer 5–4
Put the Analyzer into State and Timing Modes 5–5
Change a Label Name and Modify Channel Assignments 5–6
Turn on the TCOUNT Label in the Waveform Menu 5–6
Clear the Timing Analyzer Trigger 5–7
Set Up the State Trigger Specification 5–7
Enable Time Correlation between the Timing and State Analyzers 5–8
Arm the Timing Analyzer with the State Analyzer 5–9
View the Mixed-Mode Display with Time-Correlated Markers 5–10
6 Advanced State Triggering
Before You Begin 6–3
Put the Analyzer into State Mode 6–4
Define State Trigger Terms "a" through "d" 6–5
Define State Trigger Term "e" and Range1 6–6
Add State Trigger Sequence Levels 6–7
Set Up Level 1 of the State Trigger Specification 6–8
Set Up Level 2 of the State Trigger Specification 6–9
Set Up Level 3 of the State Trigger Specification 6–10
Set Up Level 4 of the State Trigger Specification and Define a Combination
Trigger Term 6–11
Check the Trigger Specification 6–13
Run the State Analyzer and View the Data 6–14
7 Using the Oscilloscope
Before You Begin 7–3
Connect the Channel 1 Oscilloscope Probe 7–4
Get the Waveform on the Display 7–5
Delete Channel 2 from the Display 7–6
Zoom and Scroll Through the Clock Waveform 7–7
Contents
viii
