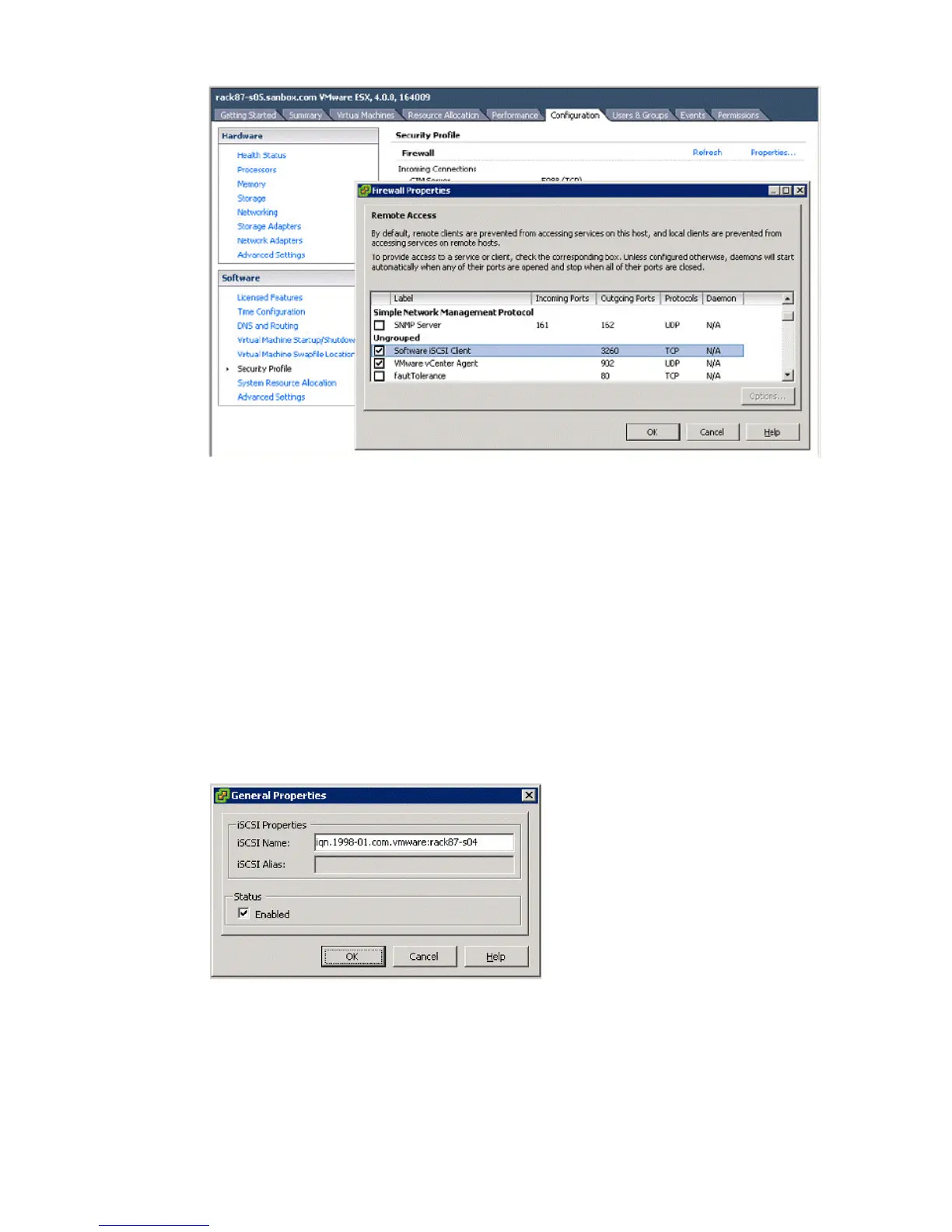

Figure 47 Firewall Properties dialog box
d. Select the Software iSCSI check box for to enable iSCSI traffic.
e. Click OK.
4. Enable the iSCSI software initiators:
a. In the VMware VI client, select the server from the inventory panel.
b. Click the Configuration tab, and then click Storage Adapters under Hardware.
c. Under iSCSI Software Adapter, choose the available software initiator.
d. Click the Properties link of the software adapter.
The iSCSI Initiator Properties dialog box is displayed.
e. Click Configure.
The General Properties dialog box is displayed (see Figure 48 (page 104)).
Figure 48 General Properties dialog box
f. Select the Enabled check box.
g. Click OK.
5. Set up Discovery Addressing for the software initiator:
a. Repeat Step 4 to open the iSCSI initiator Properties dialog box.
b. Click the Dynamic Discovery tab
c. Click Add to add a new iSCSI target.
The Add Send Target Server dialog box is displayed (see Figure 49 (page 105)).
104 iSCSI or iSCSI/FCoE configuration rules and guidelines
