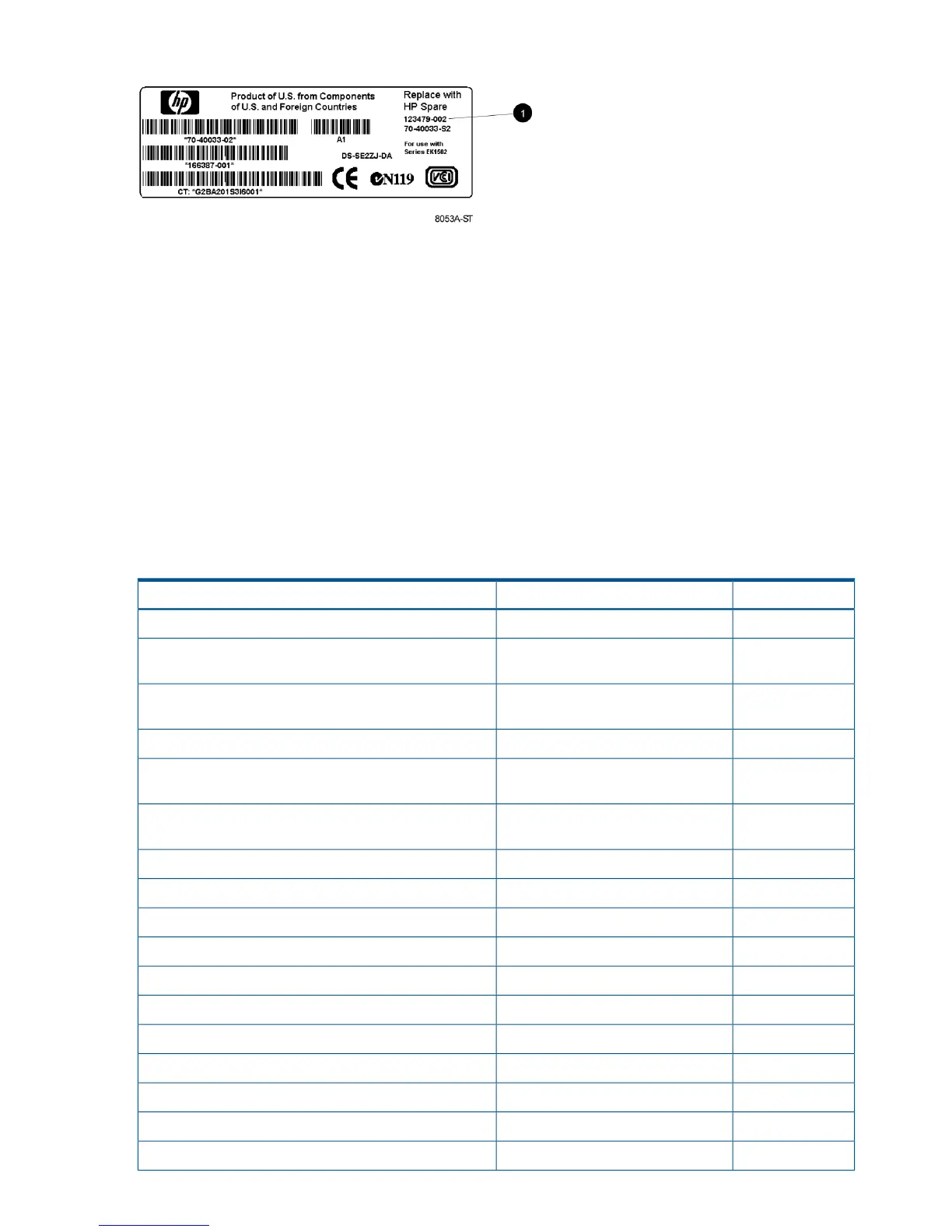

Figure 21 Example of typical product label
1. Spare component number
Replaceable parts
This product contains the replaceable parts listed in “Controller enclosure replacement parts ”
(page 74) and “Disk enclosure replaceable parts ” (page 75). Parts that are available for customer
self repair (CSR) are indicated as follows:
✓ Mandatory CSR where geography permits. Order the part directly from HP and repair the
product yourself. On-site or return-to-depot repair is not provided under warranty.
• Optional CSR. You can order the part directly from HP and repair the product yourself, or you
can request that HP repair the product. If you request repair from HP, you may be charged for the
repair depending on the product warranty.
– No CSR. The replaceable part is not available for self repair. For assistance, contact an
HP-authorized service provider
Table 12 Controller enclosure replacement parts
CSR statusSpare part number (non RoHS/RoHS)Description
•537151–0014 Gb P6300 array controller (HSV340)
•537152–0014 Gb P6300 array controller (HSV340) with iSCSI
(MEZ50–1GbE)
•613468–0014 Gb P6300 array controller (HSV340) with iSCSI
(MEZ75–10GbE)
•537153–0014 Gb P6500 array controller (HSV360)
•537154–0014 Gb P6500 array controller (HSV360) with iSCSI/FCoE
(MEZ50–10GbE)
•613469–0014 Gb P6500 array controller (HSV360) with iSCSI/FCoE
(MEZ75)
•587246–0011 GB cache DIMM for P6300 controller
•583721–0012 GB cache DIMM for P6500 controller
✓460581–001Array battery
✓519842–001Array power supply
✓460583–001Array fan module
✓460584–005Array management module
•461489–001Array LED membrane display
•461490–005Array midplane
•461491–005Array riser assembly
•466264–001Array power UID
✓583395–001P6300 bezel assembly
74 Replacing array components
