HP EVA P6000 User Manual

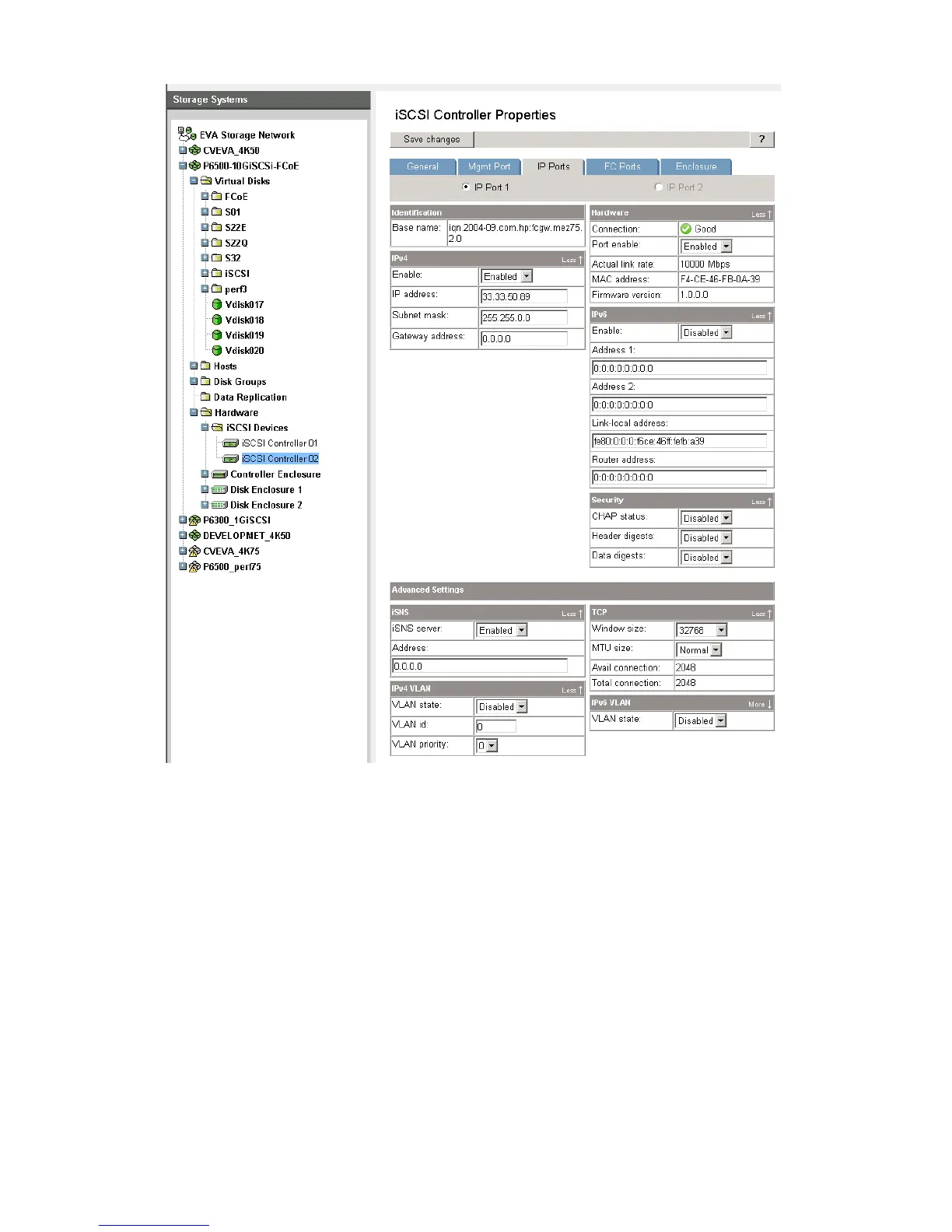

Figure 76 IP Ports tab
Issue: Initiator logs in to iSCSI or iSCSI/FCoE controller target but EVA assigned LUNs are not
appearing on the initiator
Solution 1. The initiator needs to log in to the target where the EVA LUN was assigned.
Solution 2. The EVA LUN was assigned to a different iSCSI Host then was expected.
Issue: EVA presented virtual disk is not seen by the initiator
Solution 1. The initiator has to login to the proper iSCSI target. Match the virtual disk presentation
properties as in Figure 77 (page 160) and Figure 78 (page 160) to the initiator’s target login.
iSCSI module diagnostics and troubleshooting 159

HP EVA P6000 Specifications

General

Model	HP EVA P6000
Number of Storage Controllers	2
Management Software	HP Command View EVA
Drive Types	SAS, SSD
RAID Levels	RAID 0, 1, 5, 6
Connectivity	8 Gb Fibre Channel, 10 Gb iSCSI, 1 Gb iSCSI
Form Factor	Rack-mounted
Storage Controller Type	Dual controllers
