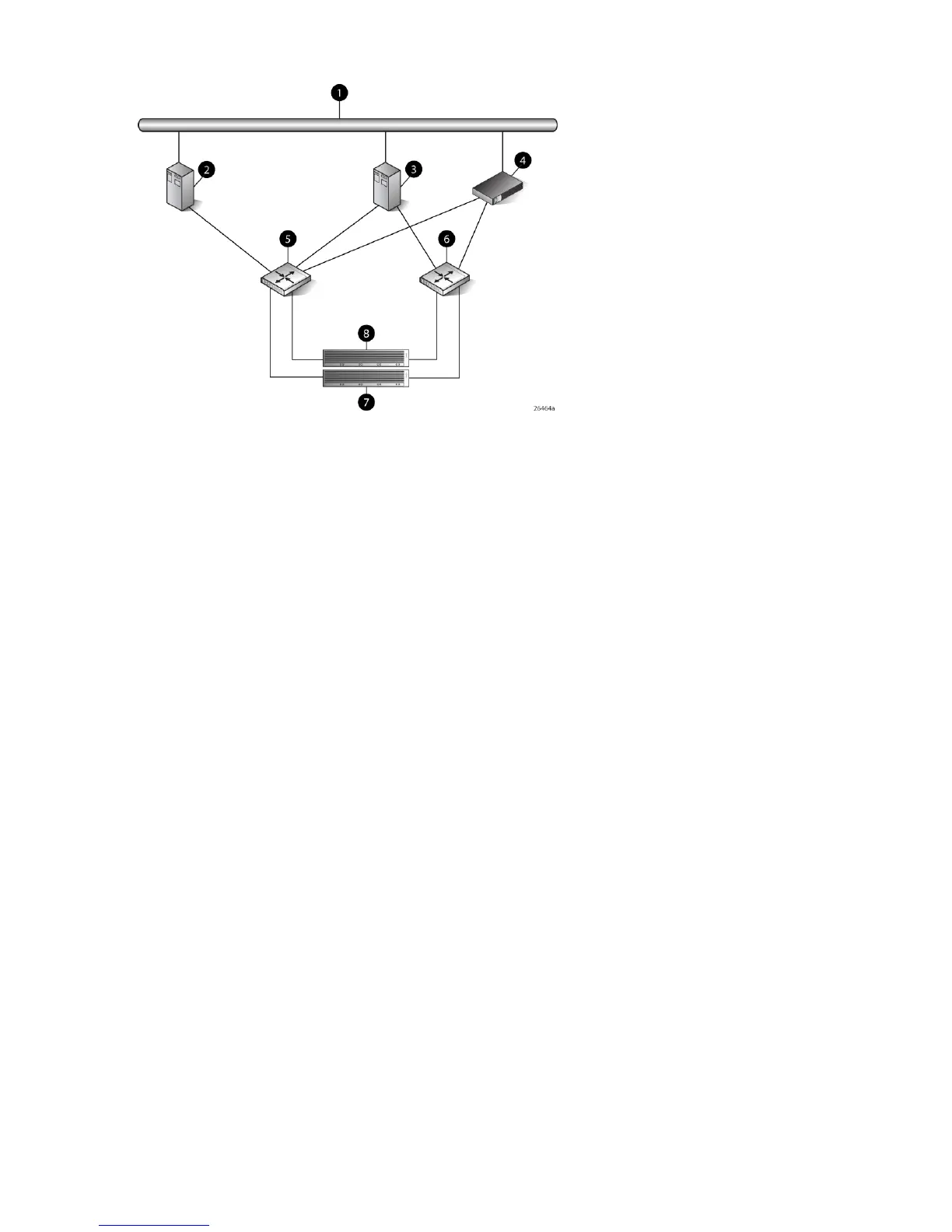

Figure 62 HP-UX configuration
5. SAN switch 11. Network interconnection
6. SAN switch 22. Single HBA server (Host 1)
7. Controller A3. Dual HBA server (Host 2)
8. Controller B4. Management server
Windows Server 2003 (32-bit) and Windows Server 2008 (32–bit)
configurations
Requirements
• Switch zoning or controller level SSP must be used to ensure each single path HBA has an
exclusive path to its LUNs.
• Single path HBA server can be in the same fabric as servers with multiple HBAs.
• Single path HBA server cannot share LUNs with any other HBAs.
• In the use of snapshots and snapclones, the source virtual disk and all associated snapshots
and snapclones must be presented to the single path hosts that are zoned with the same
controller. In the case of snapclones, after the cloning process has completed and the clone
becomes an ordinary virtual disk, you may present that virtual disk as you would any other
ordinary virtual disk.
HBA configuration
• Host 1 is a single path HBA host.
• Host 2 is a multiple HBA host with multipathing software.
See Figure 63 (page 137).
Risks
• Single path failure will result in loss of connection with the storage system.
• Single path failure may cause the server to reboot.
• Controller shutdown puts controller in a failed state that results in loss of data accessibility
and loss of host data that has not been written to storage.
136 Single path implementation
