HP EVA P6000

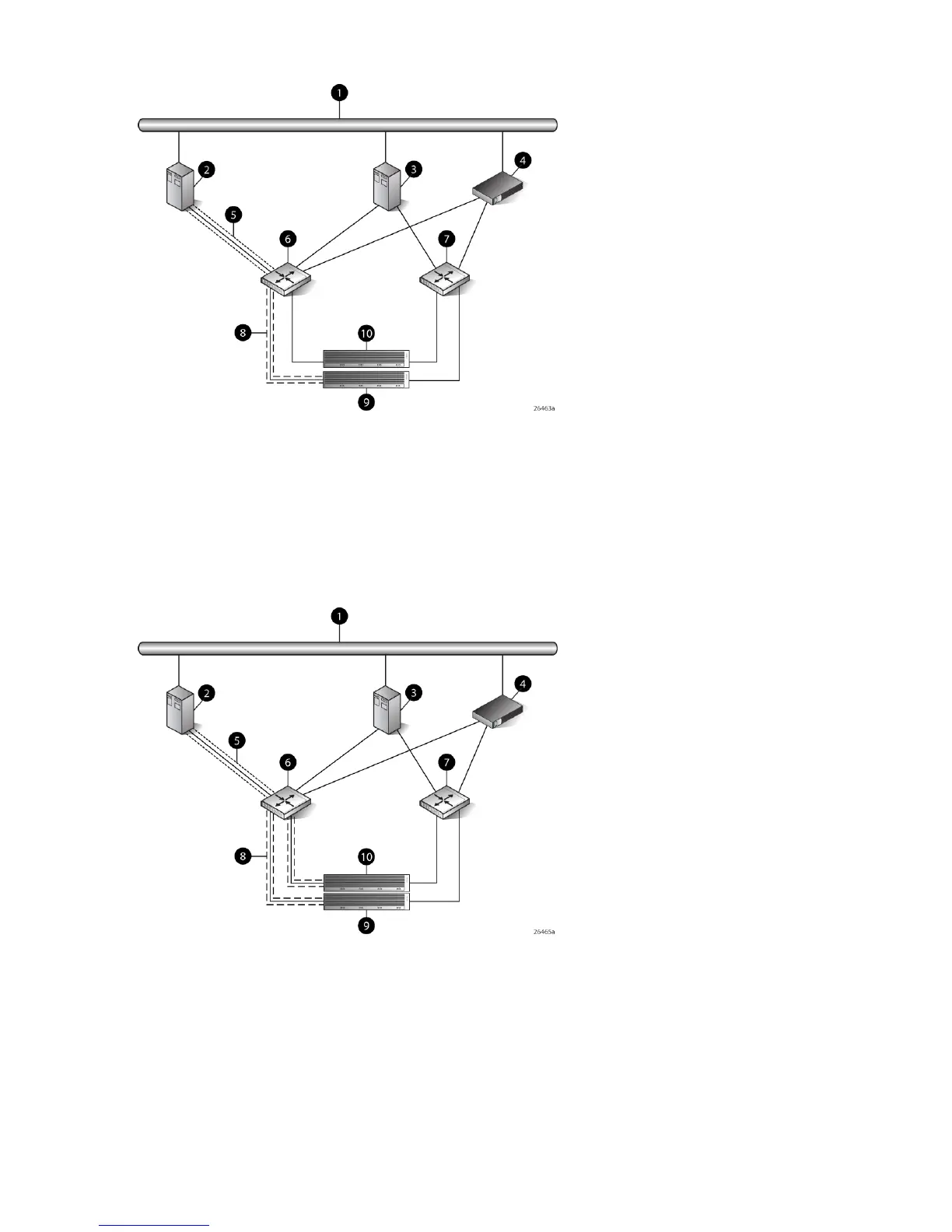

Figure 60 Single path HBA server without OpenVMS
6. SAN switch 11. Network interconnection
7. SAN switch 22. Single HBA server (Host 1)
8. Fabric zone3. Dual HBA server (Host 2)
9. Controller A4. Management server
10. Controller B5. Multiple single HBA paths
Figure 61 Single path HBA server with OpenVMS
6. SAN switch 11. Network interconnection
7. SAN switch 22. Single HBA server (Host 1)
8. Fabric zone3. Dual HBA server (Host 2)
9. Controller A4. Management server
10. Controller B5. Multiple single HBA paths
