e. Between the outermost mezzanine 2 post and the server blade power connector cables

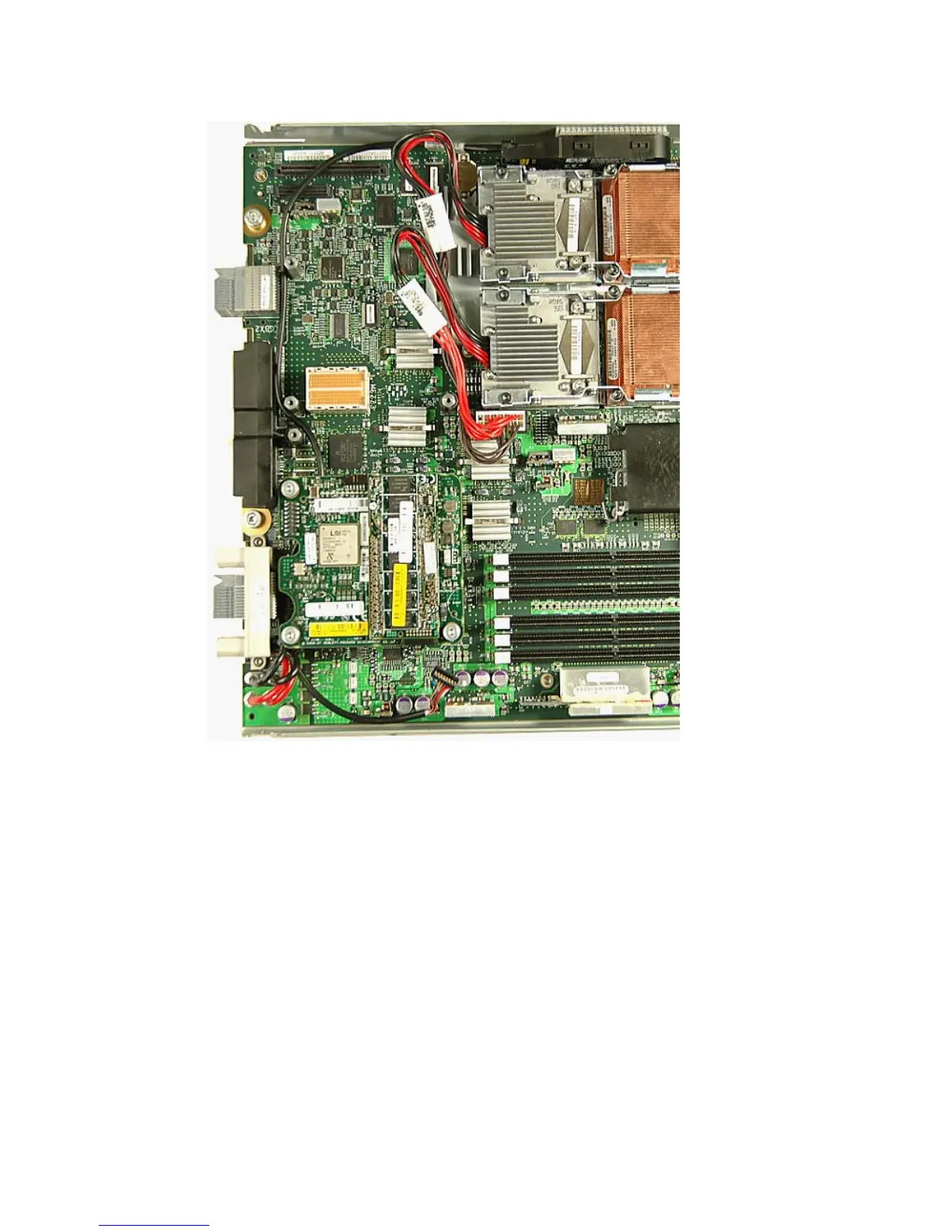

Figure 75 Mezzanine Slot 1 or 2 BBWC Cable Routing
9. If the controller is in mezzanine slot 3 route the cable along the following path:
a. Under the CPU 0 power pod wires
b. Along the rear of the server blade
c. Inside the mezzanine posts near the rear chassis plug
d. Outside all other mezzanine card posts
138 Removing and Replacing Components
