Chapter 4
Removing and Replacing Components
Removing and Replacing the DVD Drive
103
Step 3. Pull the drive straight out to remove it from the chassis. Figure 4-42 shows how to remove the DVD
drive.

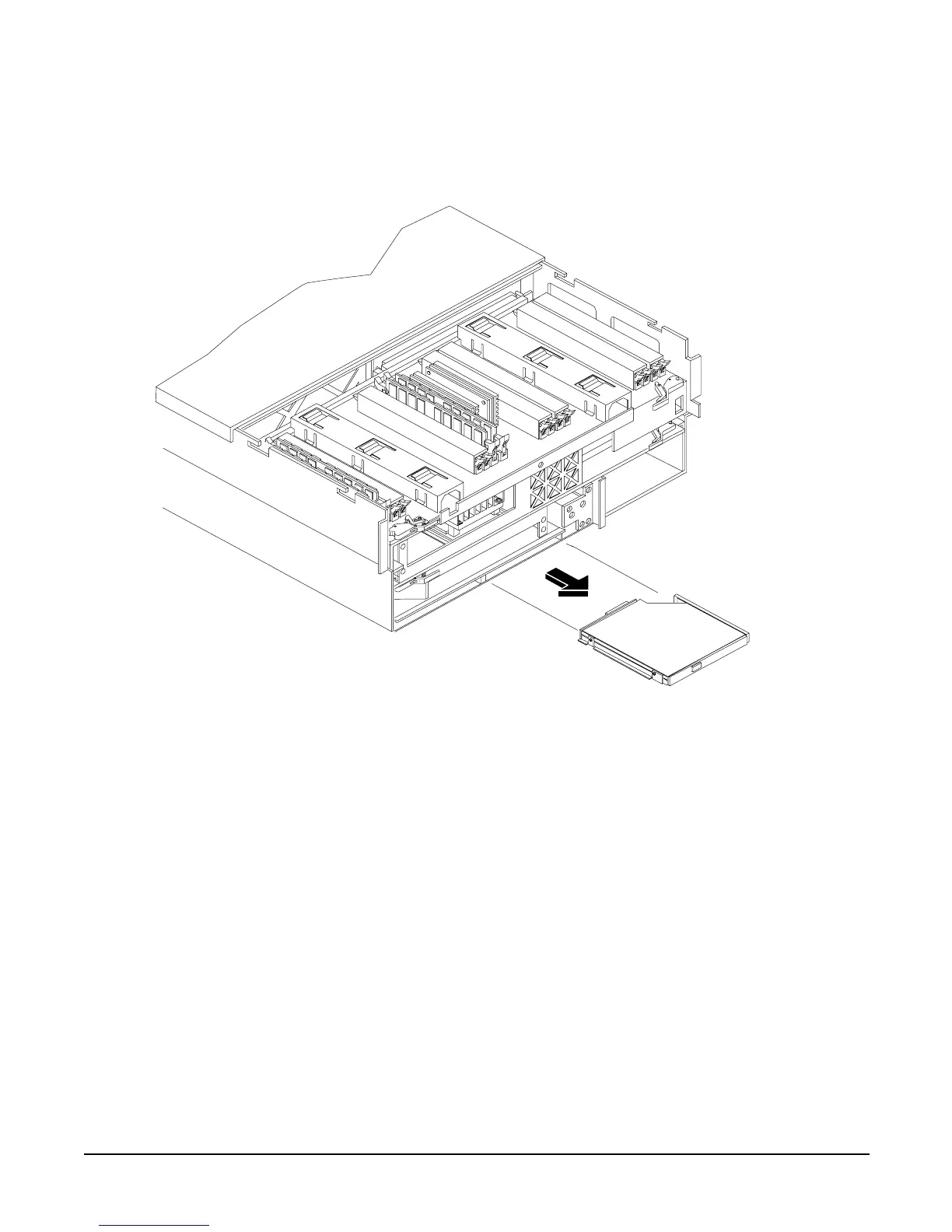

Figure 4-42 Removing and Replacing the DVD Drive
Replacing the DVD Drive
To replace a DVD drive, follow these steps:
Step 1. Grasp the front of the DVD drive and squeeze in on the locking tab to release the drive.
Step 2. Push the drive straight into the drive bay until the locking tab clicks into place. Figure 4-42 shows
how to replace the DVD drive.
Step 3. Replace the front bezel. See “Replacing the Front Bezel” on page 41.
