HP Integrity rx4640 - Figure 4-25 Slot ID Numbering; Figure 4-30. Slot ID Numbering

Chapter 4
Removing and Replacing Components
Removing and Replacing Hot-Plug PCI-X Cards
76
CAUTION Do not use more than 3 RAID cards in any of the slots on your HP Integrity rx4640 server.
Server power limitations restrict the use of more than 3 RAID cards per server.

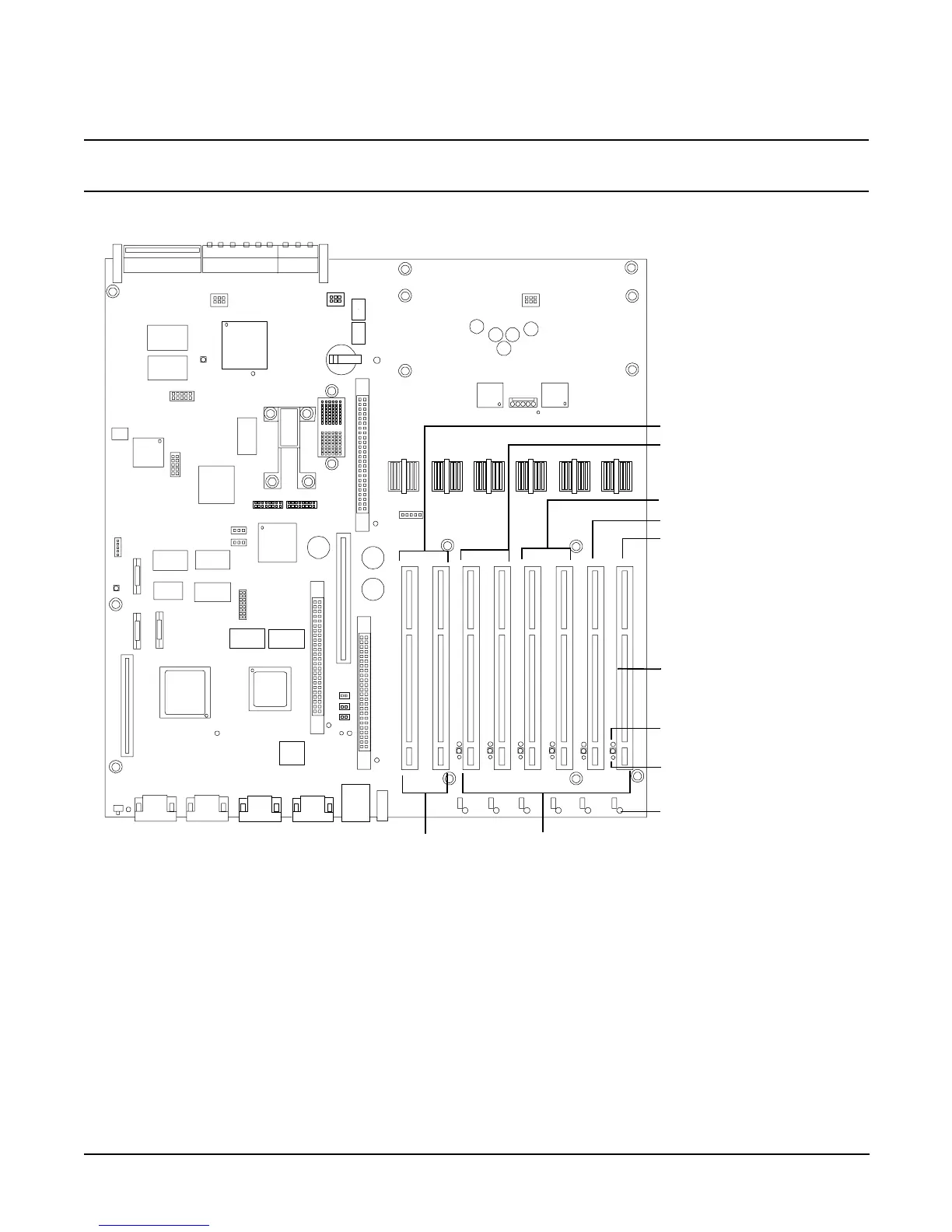

Figure 4-25 Slot ID Numbering
PCI-X Bus 1
PCI-X Bus 2
PCI-X Bus 3
PCI-X Bus 4
PCI-X Bus 5
Slot ID Number
Amber attention LEDs, 6x
Green power LEDs, 6x
Amber attention LEDs, 6x
1 23456 78
Core I/O
PCI-X
Public I/O
PCI-X, Hot-Plug
