HP Integrity rx4640 - Figure 4-28 Opening and Closing the OLX Divider Latch

Chapter 4
Removing and Replacing Components
Removing and Replacing OLX Dividers
82
Step 3. Remove the top cover. See “Removing the Top Cover” on page 43.
Step 4. Slide open the latch on the rear PCI cage wall to unlock the rear edge of the PCI divider.

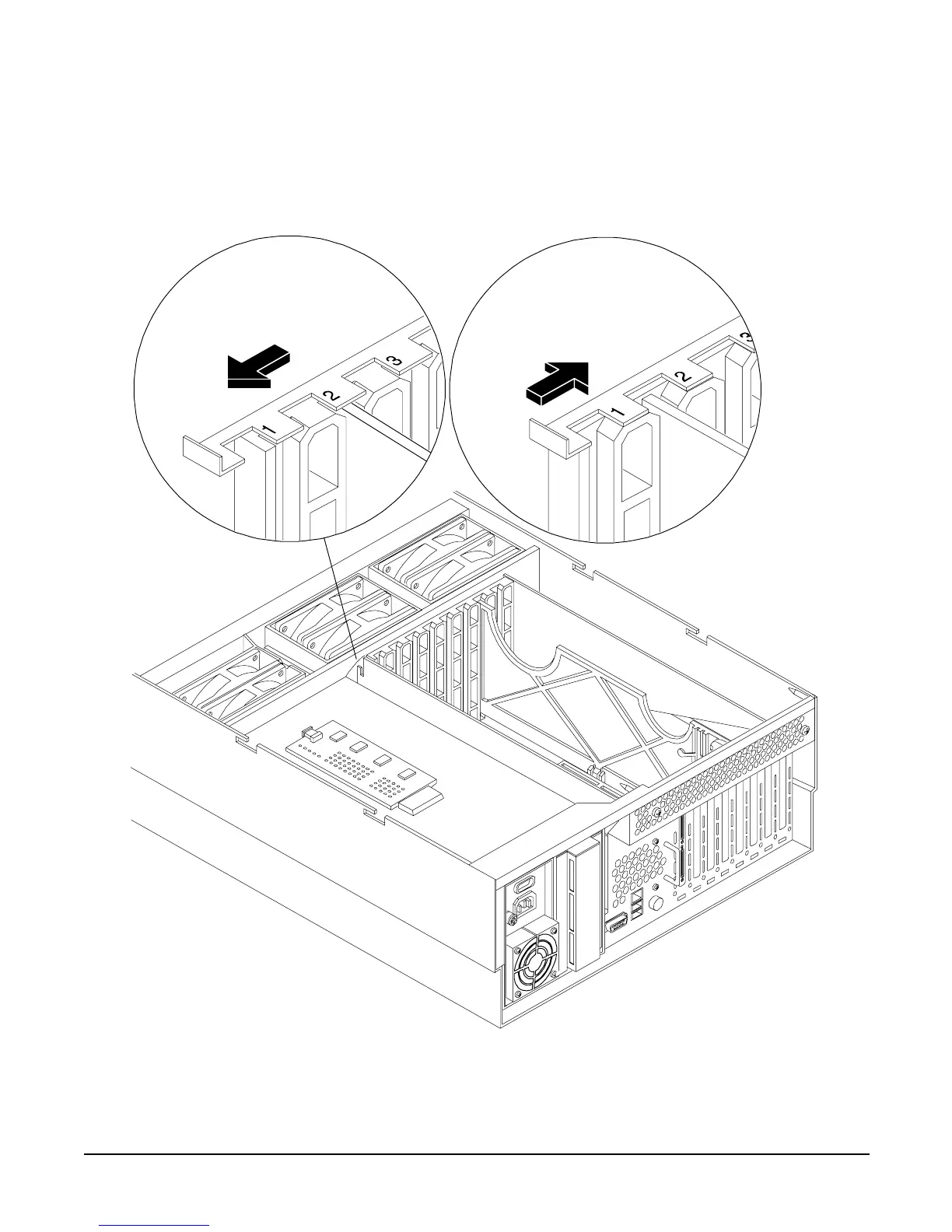

Figure 4-28 shows how to open the OLX divider latch.
Figure 4-28 Opening and Closing the OLX Divider Latch
CLOSED
OPEN
