Chapter 5
Troubleshooting
Troubleshooting Using LED Indicators
124

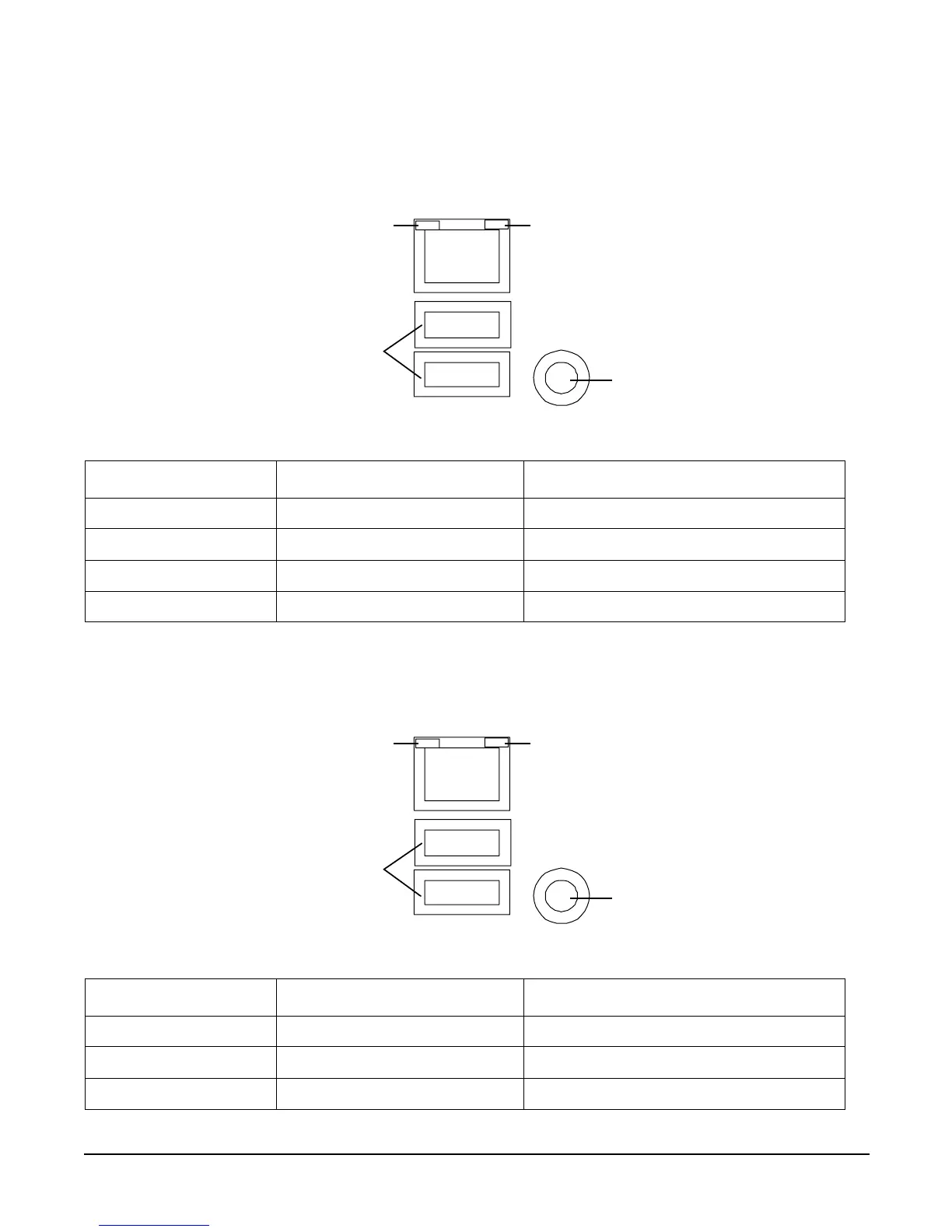

On some servers, the LEDs display as follows:
Figure 5-7 iLO MP LAN LEDs
On other servers, the LEDs display as follows:
Figure 5-8 iLO MP LAN LEDs
Table 5-7 iLO MP LED Status Descriptions
LED Condition Status
100M amber On Linked at 100MBps. No activity
100M amber Blinking Linked at 100MBps. Activity present
10M green On Linked at 10MBps. No activity
10M green Blinking Linked at 10MBps. Activity present
Table 5-8 iLO MP LED Status Descriptions
LED Condition Status
100M green On Linked at 100MBps. No activity
100M green Blinking Linked at 100MBps. Activity present
10M amber On Linked at 10MBps. No activity
100M Link/Activity, Amber LED
10M Link/Activity, Green LED
Locator Button and LED
USB Ports
100M Link/Activity, Green LED
10M Link/Activity, Amber LED
Locator Button and LED
USB Ports
