HP Integrity rx4640 - Figure 4-6 Opening the Memory Extender Board Latches; Figure 4-7 Removing and Replacing the Memory Extender Board

Chapter 4
Removing and Replacing Components
Removing and Replacing the Memory Extender Board
45
Step 4. Press each latch on the two extraction levers located on each side of the memory extender board.
Figure 4-6 shows how to unlatch the memory extender board.

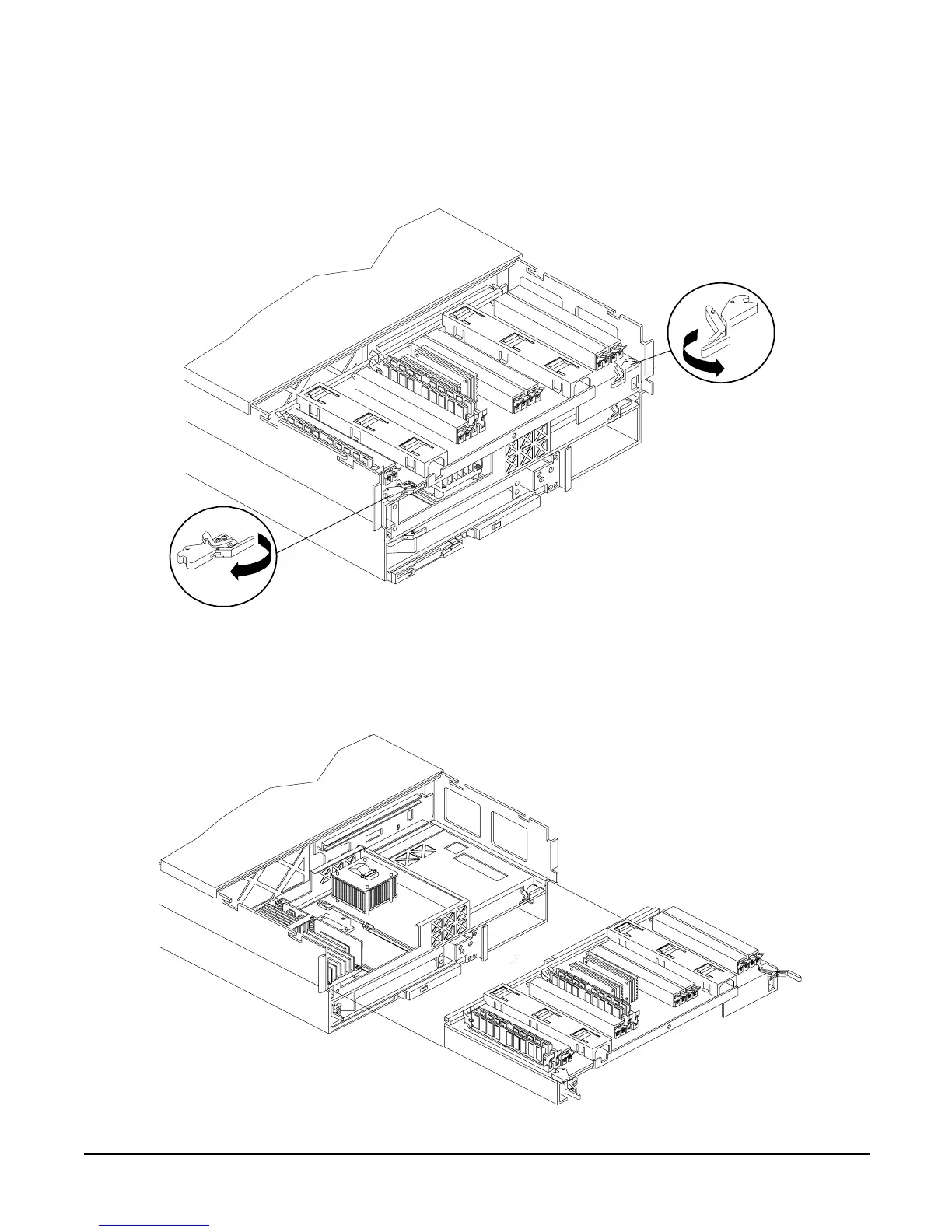

Figure 4-6 Opening the Memory Extender Board Latches
Step 5. Pull on the extraction levers to unplug the memory extender board from the socket located on the
midplane riser board and remove the memory extender board from the chassis. Figure 4-7 shows
how to remove the memory extender board from the server.
Figure 4-7 Removing and Replacing the Memory Extender Board
