Chapter 4
Removing and Replacing Components
Removing and Replacing a Processor
61
CAUTION When rotating the locking cam, hold the palm of your hand on top of the assembly
and exert light pressure. This ensures that the assembly stays flush and level to the
socket while it is being tightened.

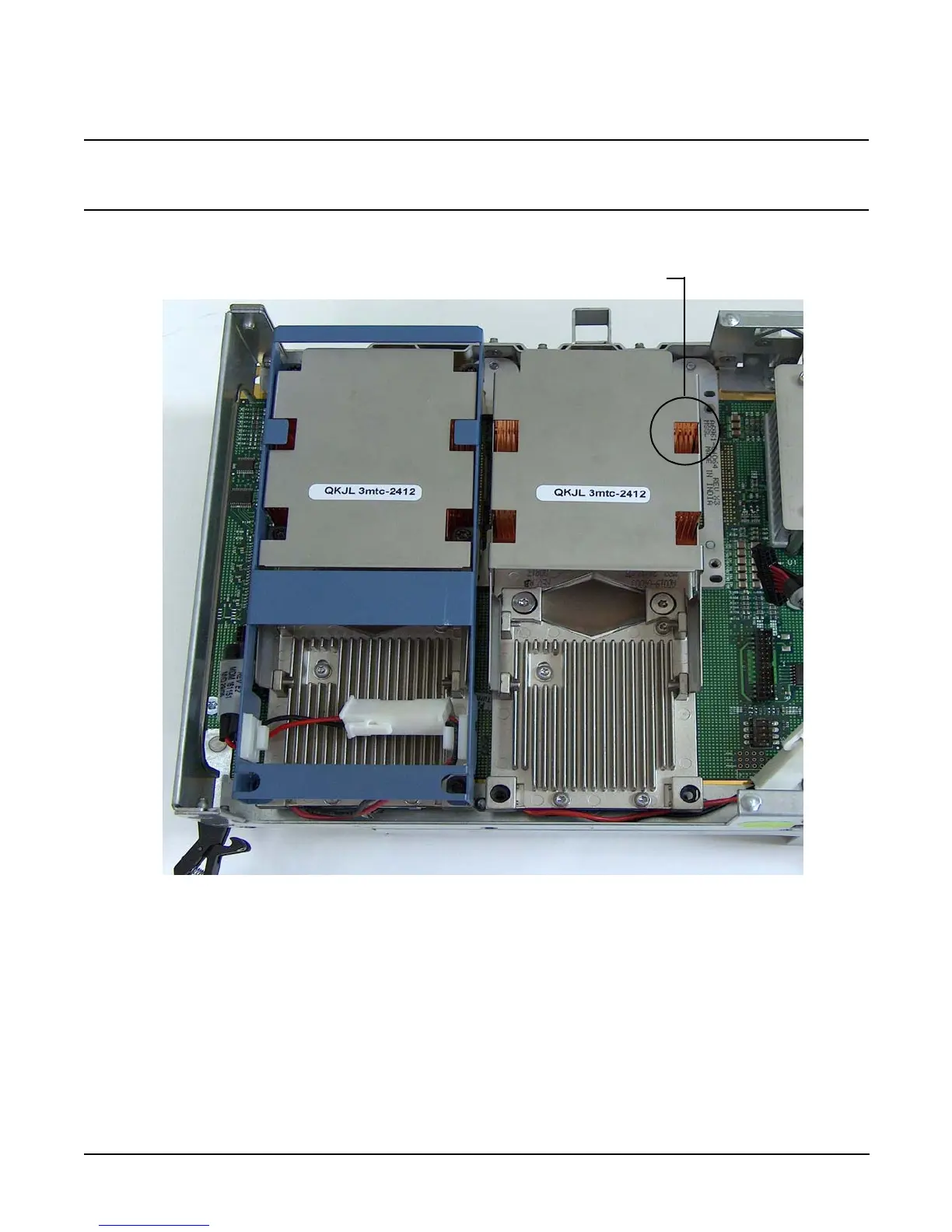

Figure 4-18 Locking the Processor to the Processor Extender Board
Step 10. Plug in the processor cable to its socket on the extender board.
Step 11. Place the sequencer frame over the processor.
Step 12. Using the ACX-15 torx screwdriver, tighten the six shoulder screws until they just bottom out.
Follow the tightening sequence shown in Figure 4-19.
Processor ZIF Socket Lock
