Controls, Ports, and LEDs
Rear Panel Controls, Ports, and LEDs
Chapter 2
29
Power Supply Status LEDs
Each 200-240 VAC power supply unit has three status LEDs located on the power supply accessible from the
rear panel. Consolidated status of all power supplies is reported by the front control panel by the power status
LED. Figure 2-7 shows the location of the power supply status LEDs on the rear of the enclosure.

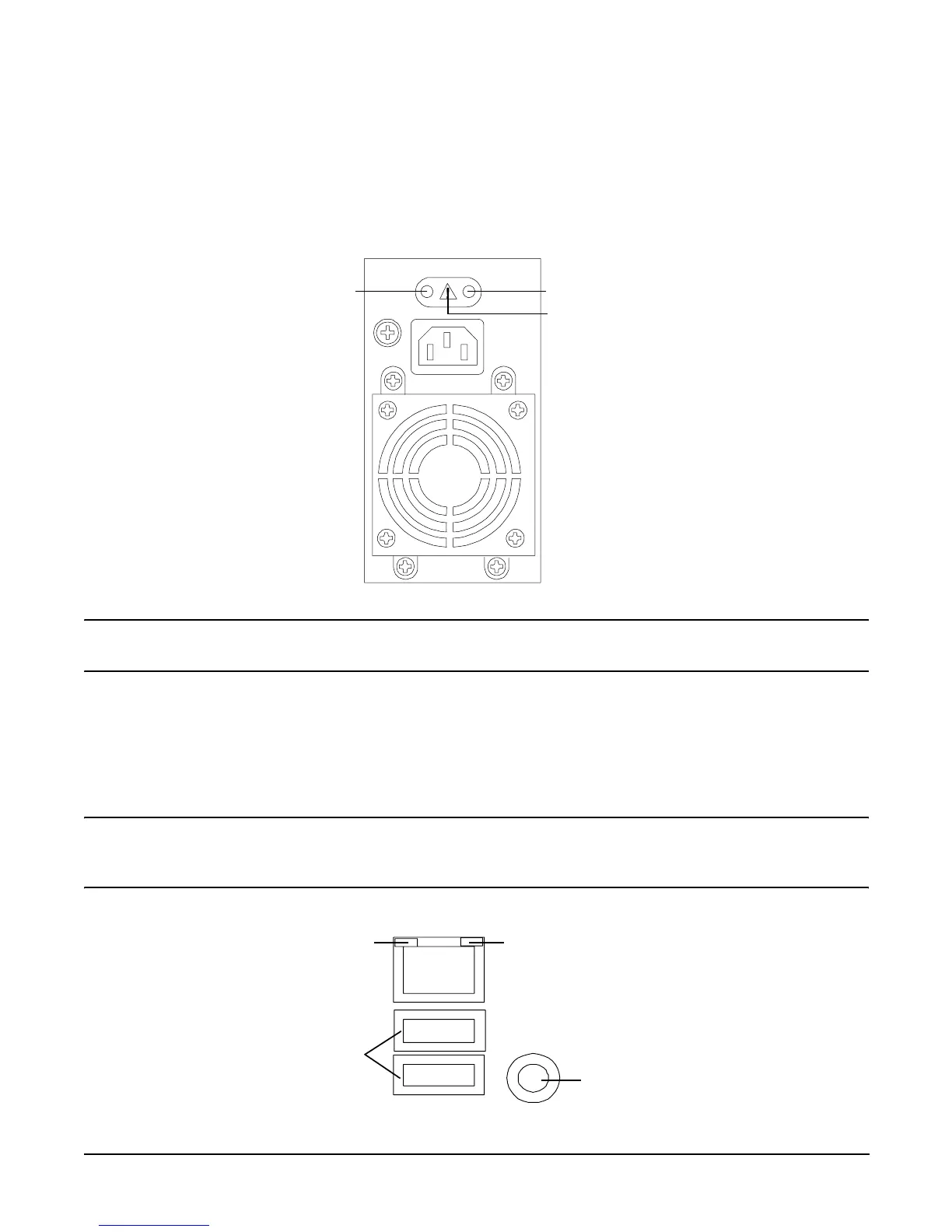

Figure 2-7 Power Supply Status LEDs
NOTE For troubleshooting information regarding the power supply status LEDs, see “Power Supply
Status LED Indicators” on page 123.
Management Processor LAN LEDs
The internal Management Processor (MP) LAN uses an RJ-45 type connector. This connector has two LEDs
(LAN link and LAN activity) that signal status and activity. Figure 2-8 shows the MP LAN LEDs and USB
ports on the rear panel of the server.
NOTE Two versions of the iLO MP card exist for this server. Depending on which version of the card is
installed in the server, the iLO MP LAN port LEDs display differently. For more information,
see “iLO MP LAN Port Link/Activity LED Display” on page 123.
Figure 2-8 MP LAN LEDs
Predict fail
LED-amber
Power LED-green
Fail LED-amber
100M Link/Activity, Amber LED
10M Link/Activity, Green LED
Locator Button and LED
USB Ports
