Chapter 4
Removing and Replacing Components
Removing and Replacing Core I/O Cards
85
Removing and Replacing Core I/O Cards
The HP Integrity rx4640 server has two I/O card slots that are dedicated for core I/O cards. They are labelled
slots 1 and 2 on the I/O baseboard. Figure 4-30 shows the location of the core I/O slots on the I/O baseboard.
PCI Slot Locations and Configurations
The following describes configuration requirements for slots 1 and 2:
• PCI slot 1 is dedicated for use by a SCSI HBA card. Slot 1 is not hot-plug capable. Additional PCI
expansion cards may not be placed in slot 1.
• PCI slot 2 is dedicated for use by a LAN card. Slot 2 is not hot-plug capable. Additional PCI expansion
cards may not be placed in slot 2.

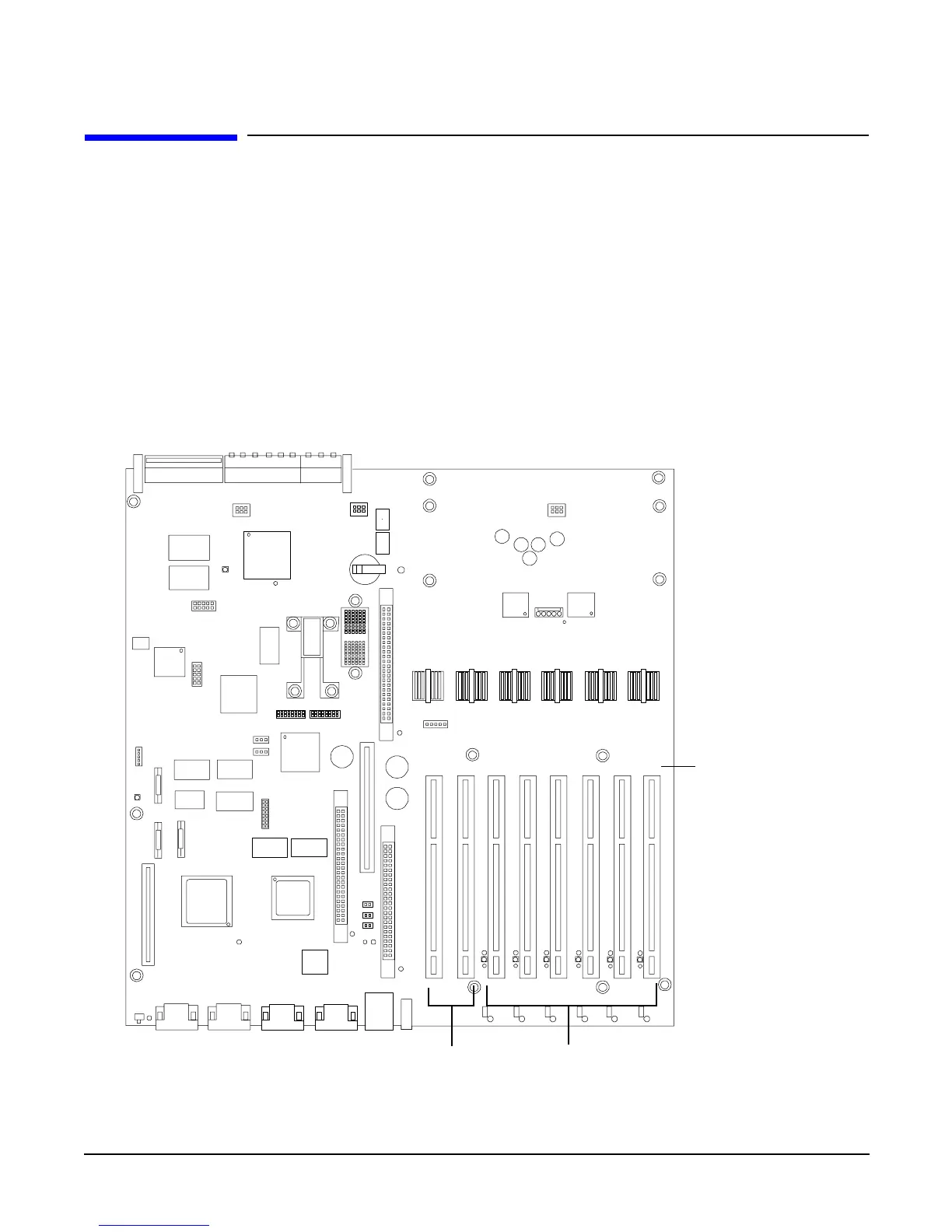

Figure 4-30 Slot ID Numbering
Slot ID Number
1 2 345 678
Core I/O
PCI slots
Public I/O PCI slots
Back of Server
